TERRAMOR™
GLAZED PORCELAIN
Description

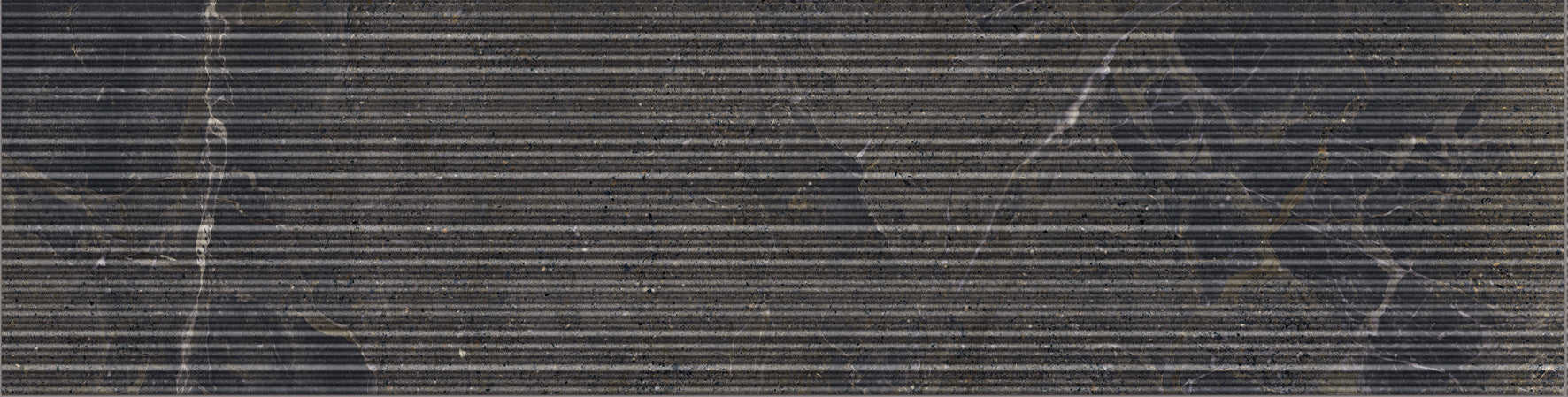

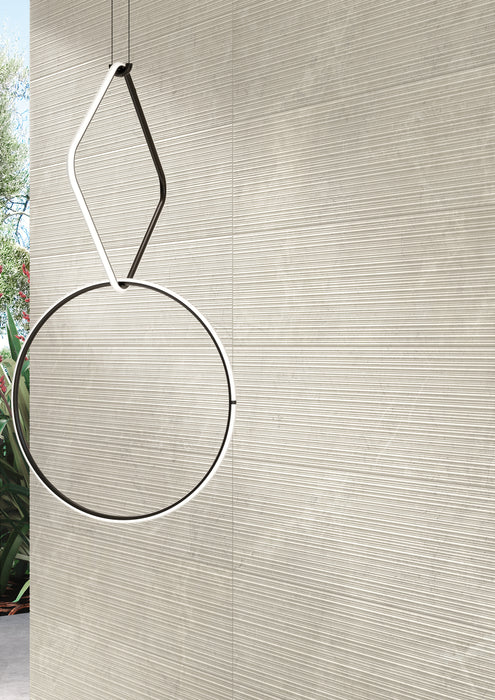

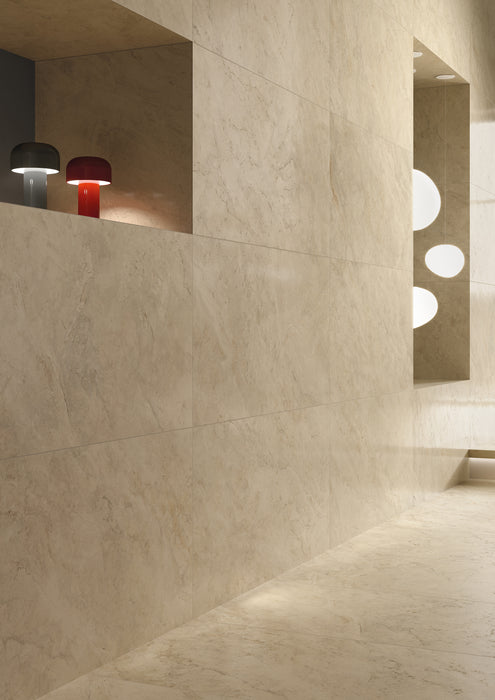

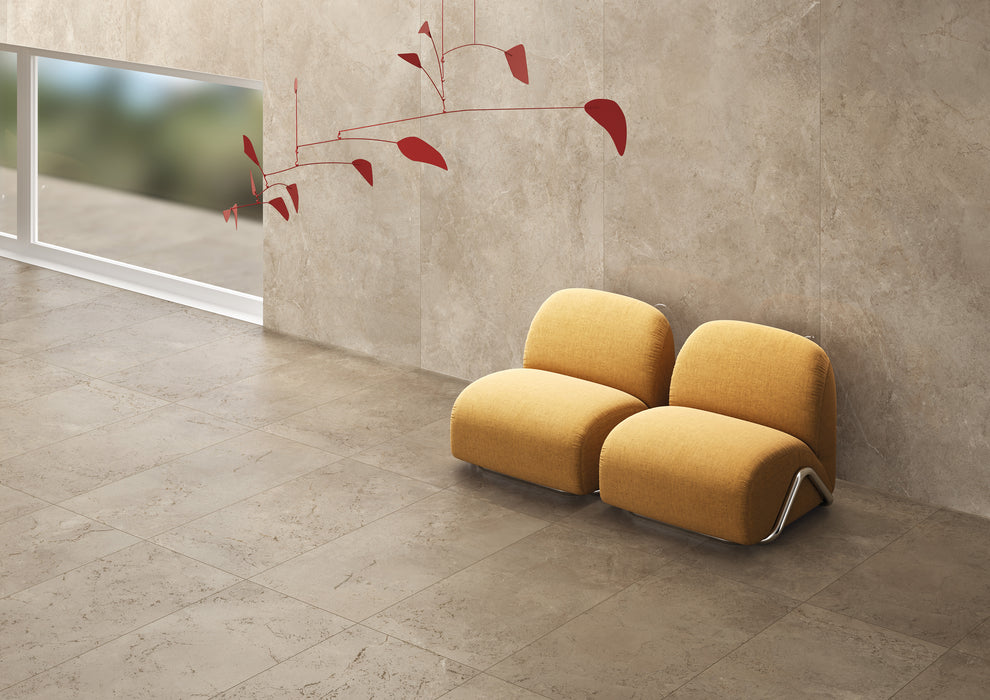

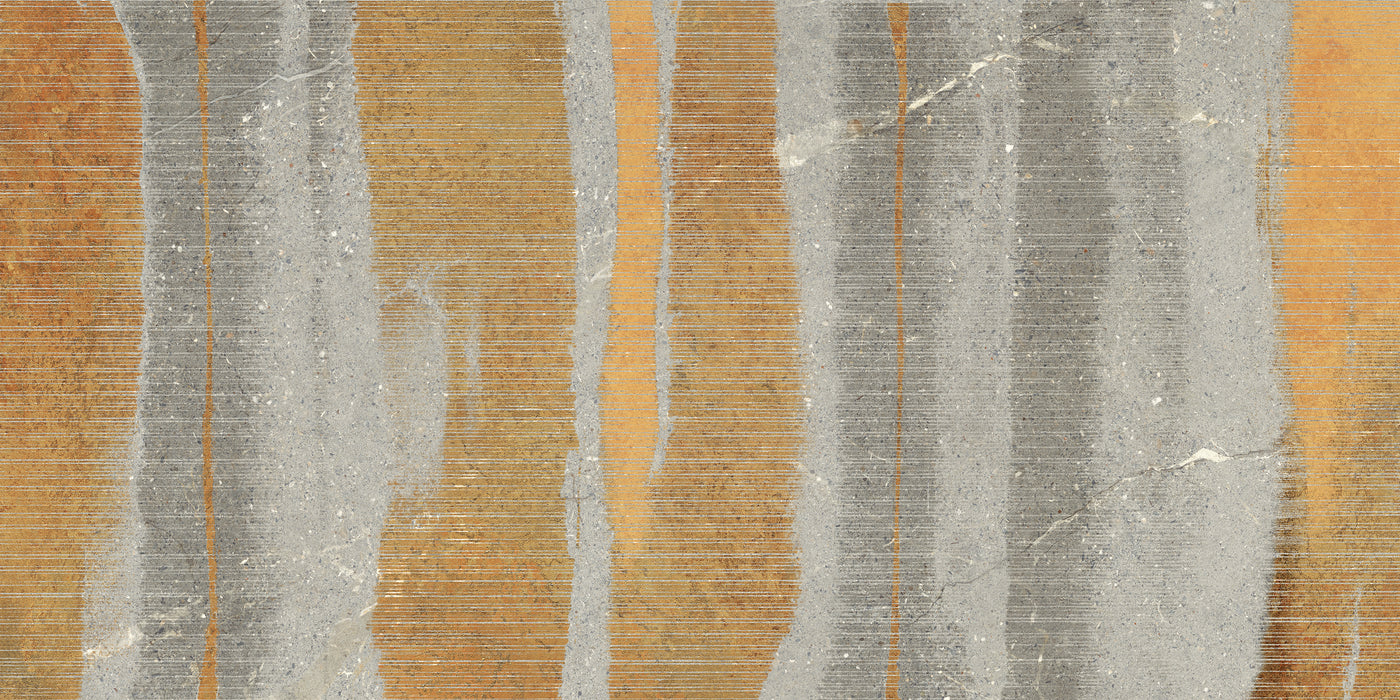

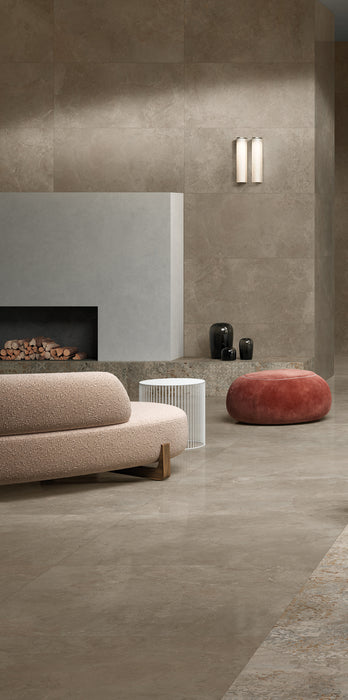

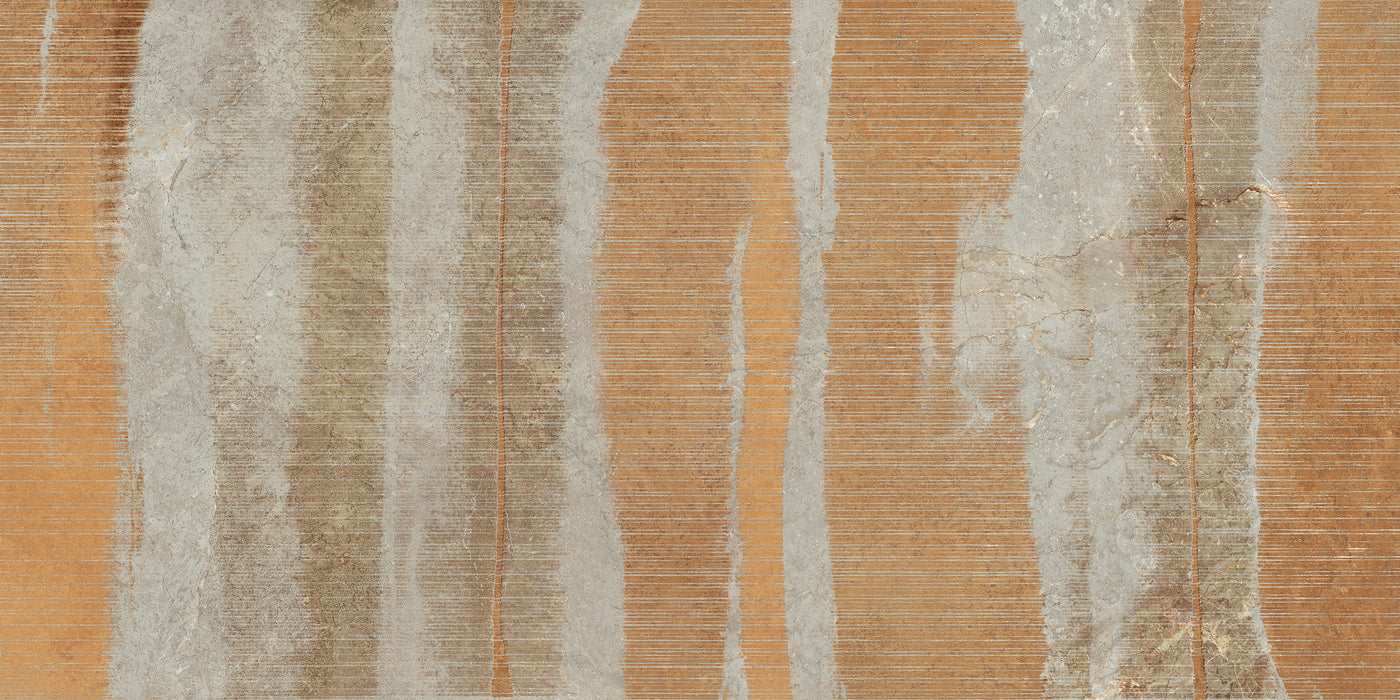

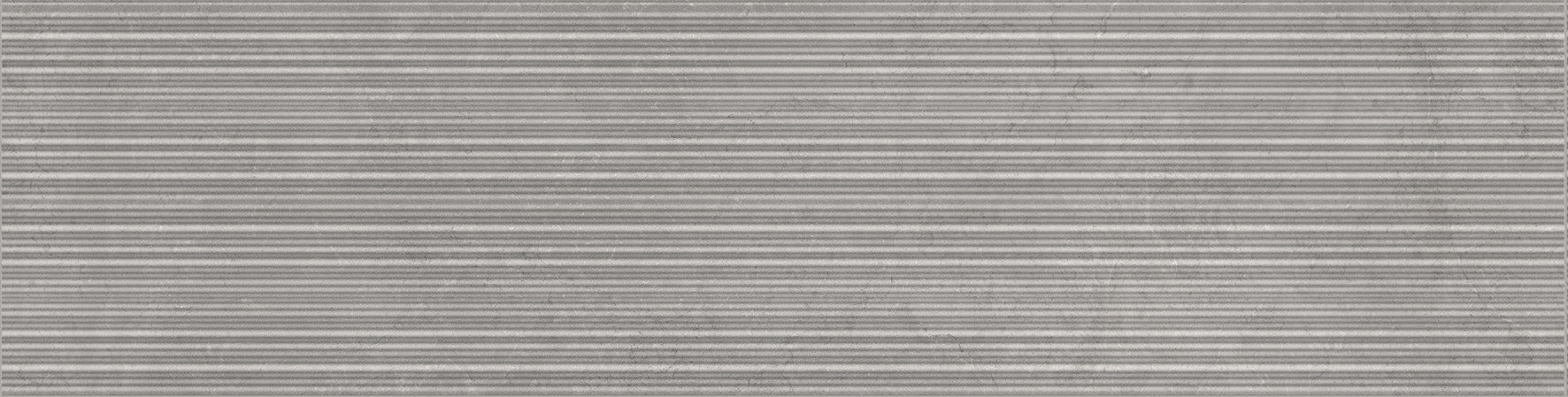

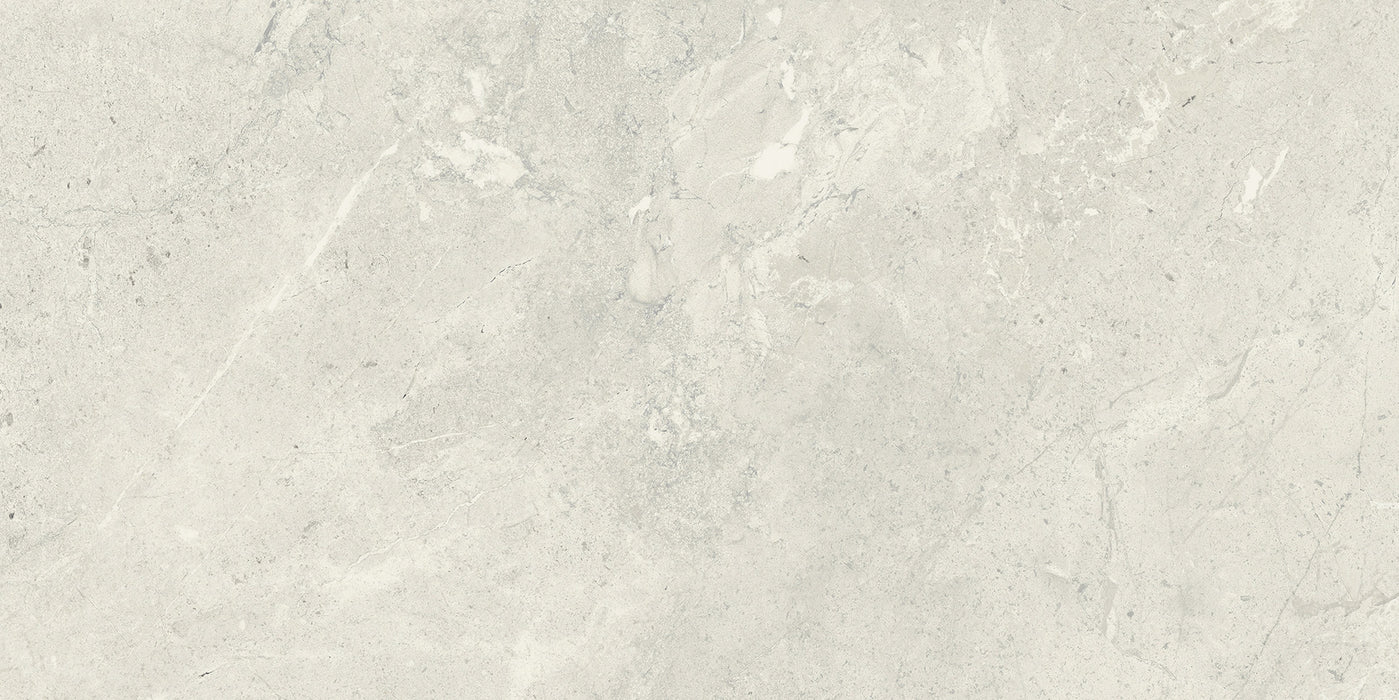

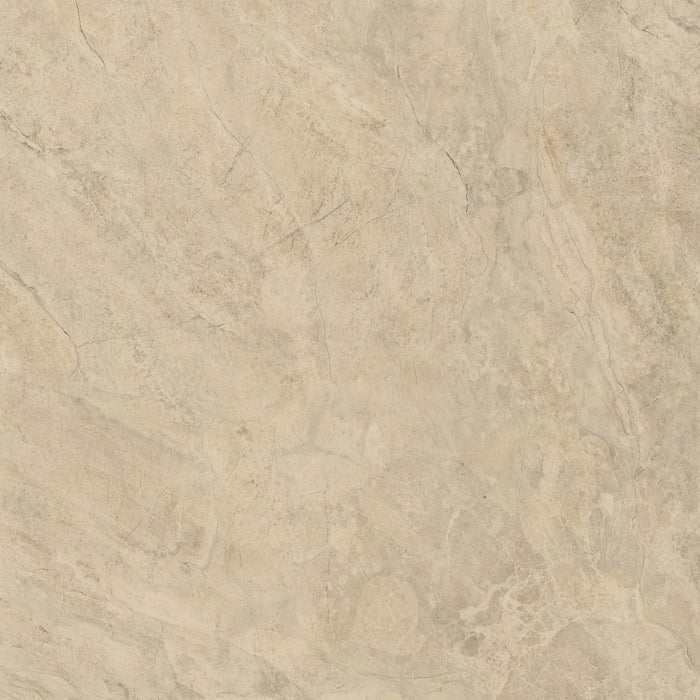

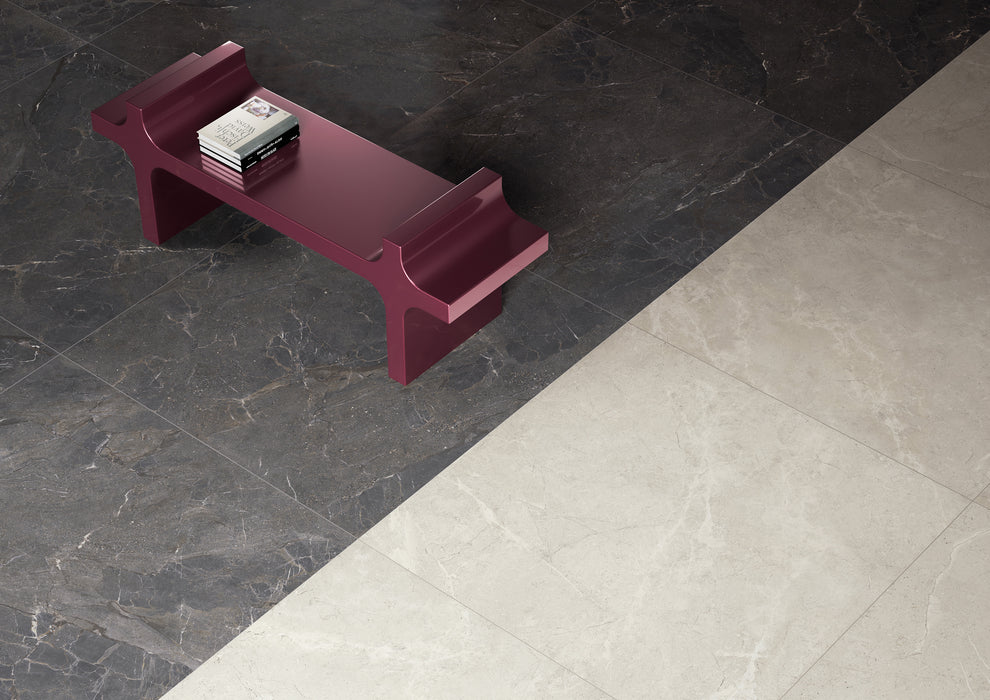

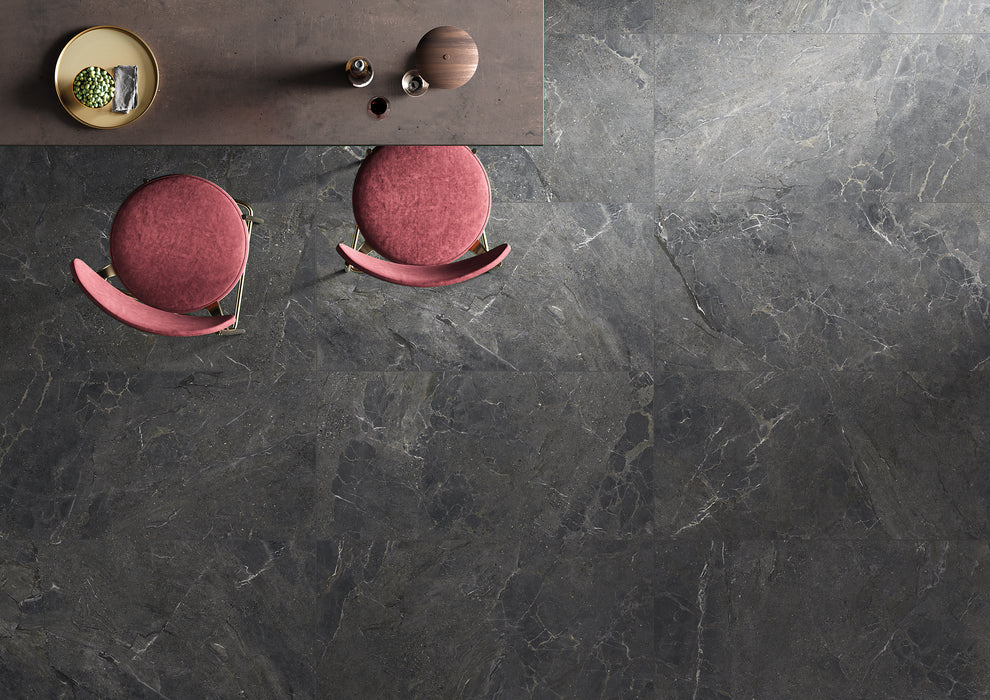

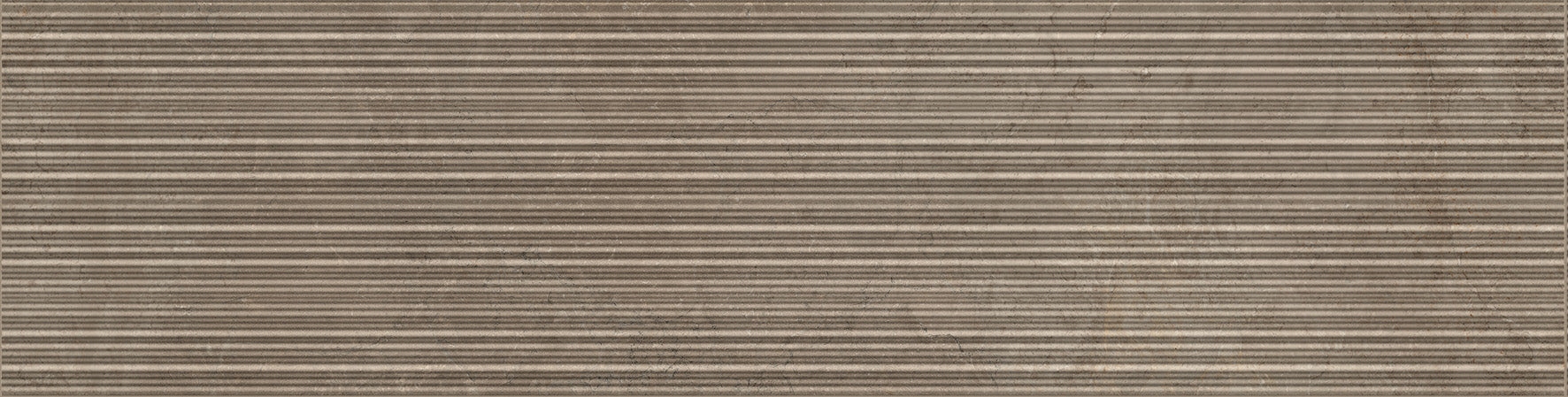

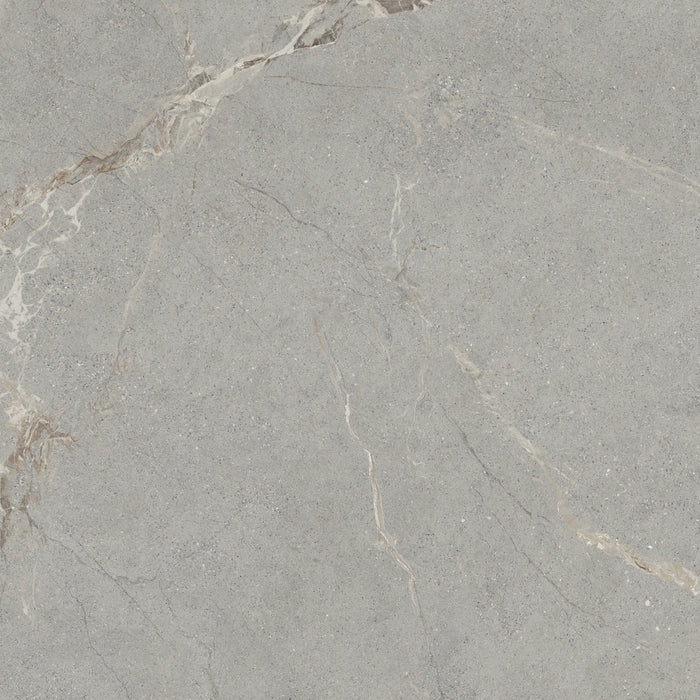

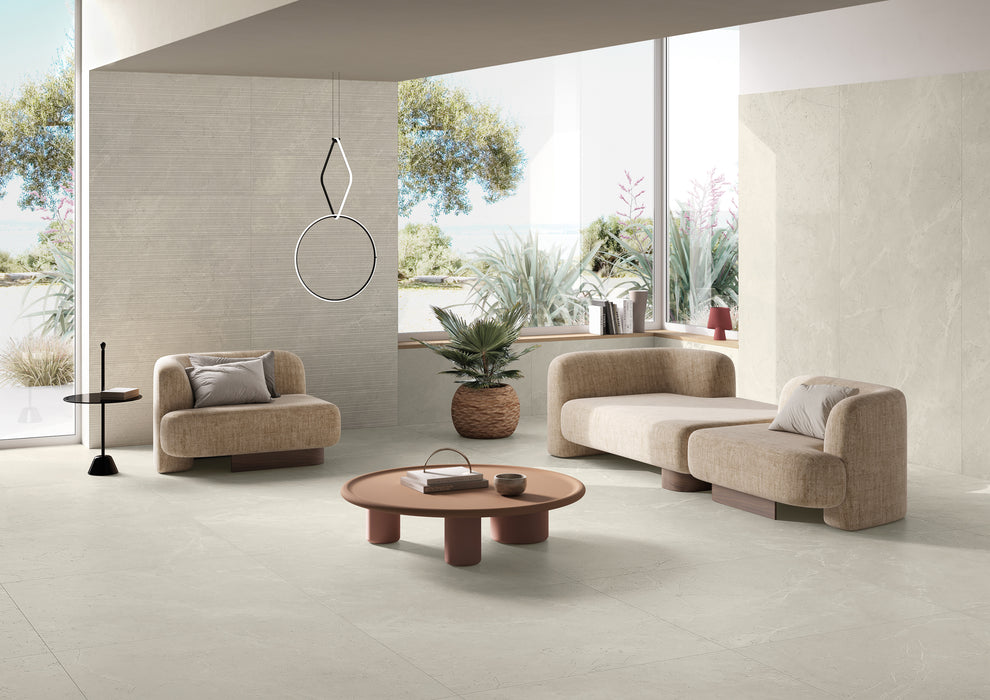

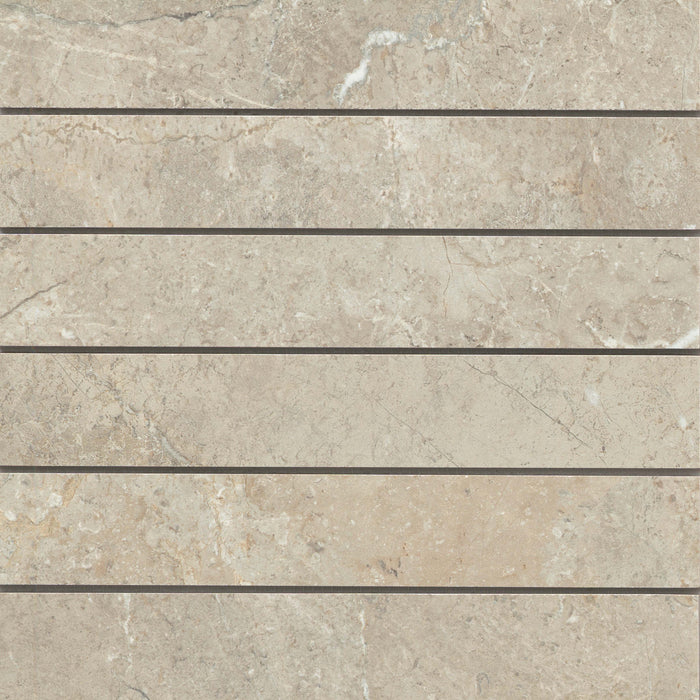

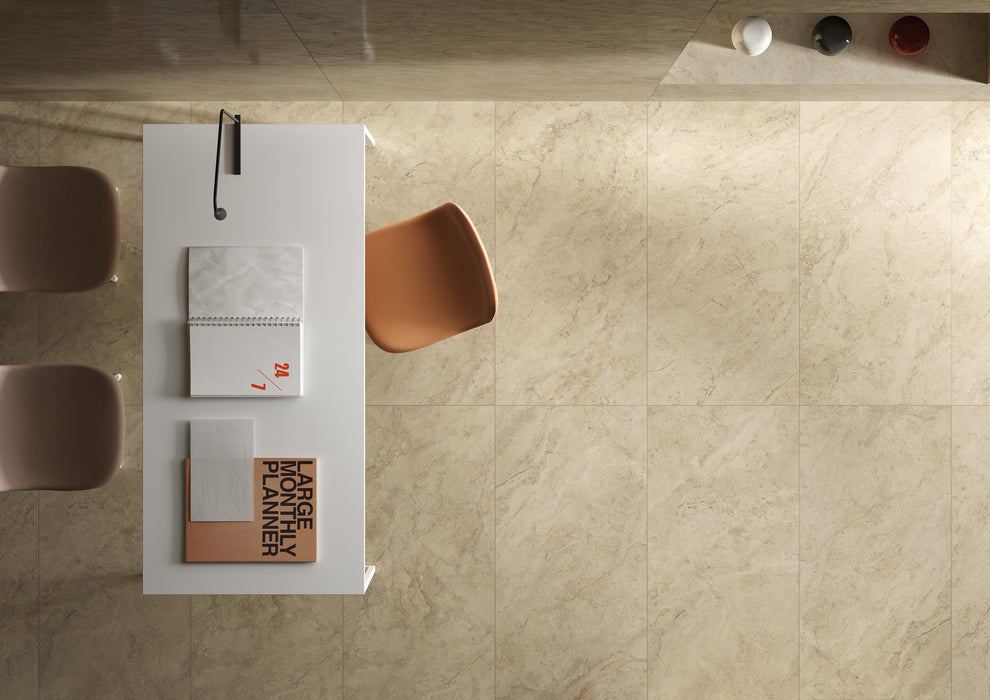

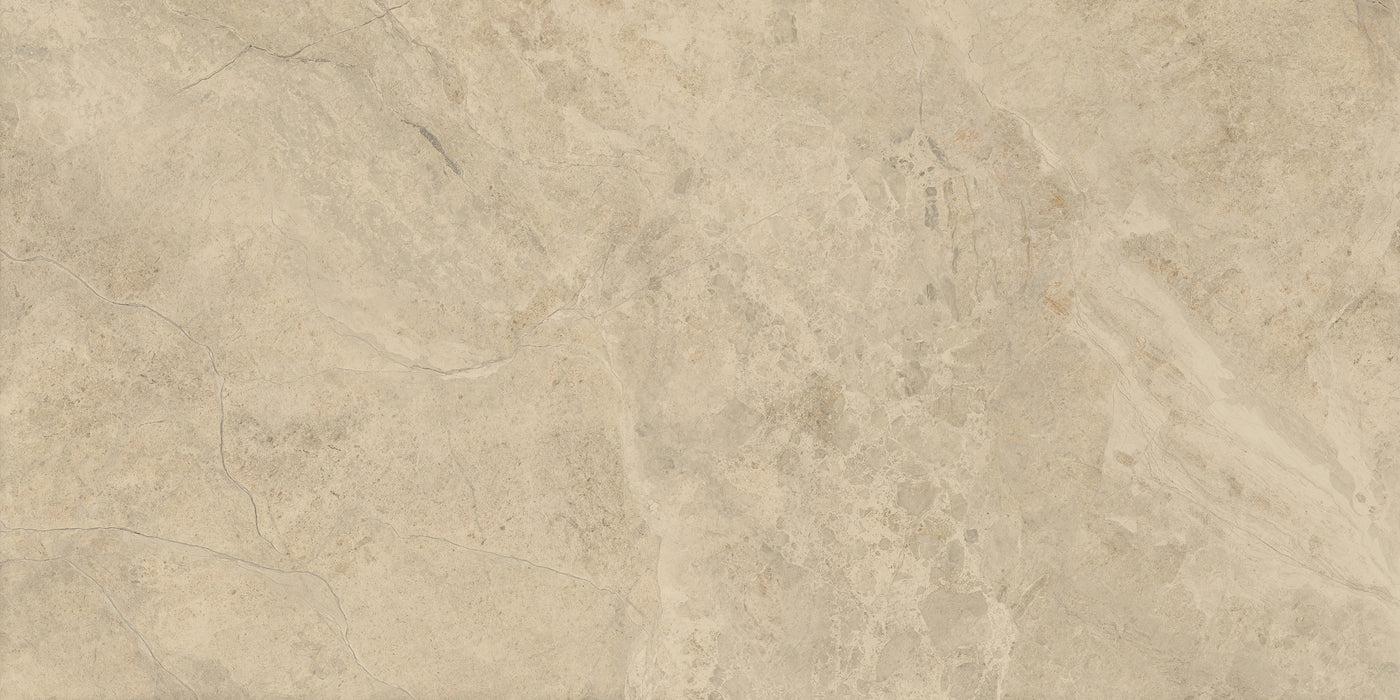

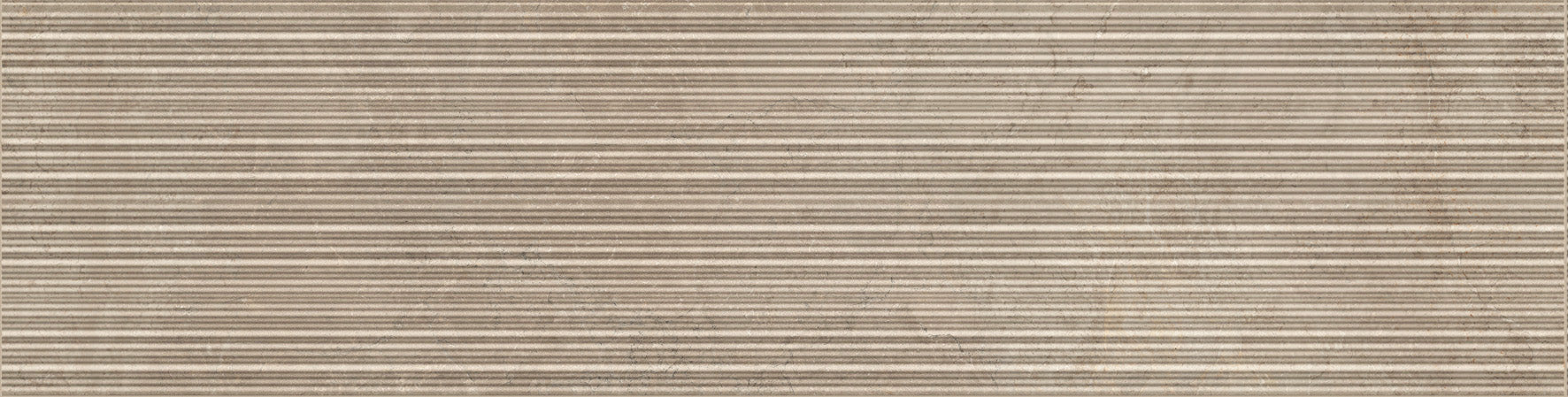

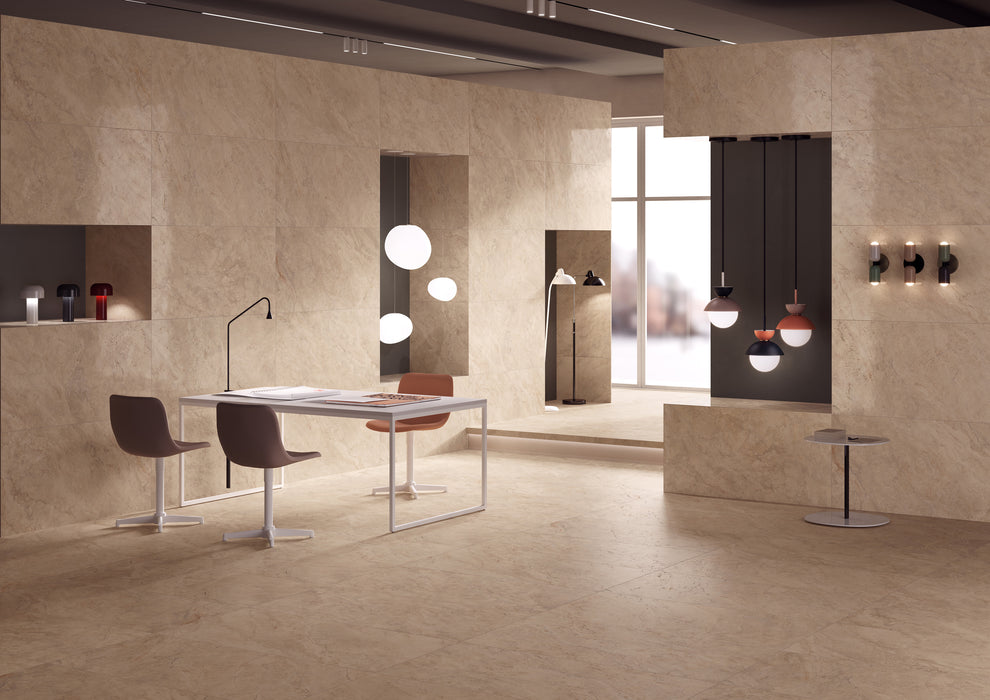

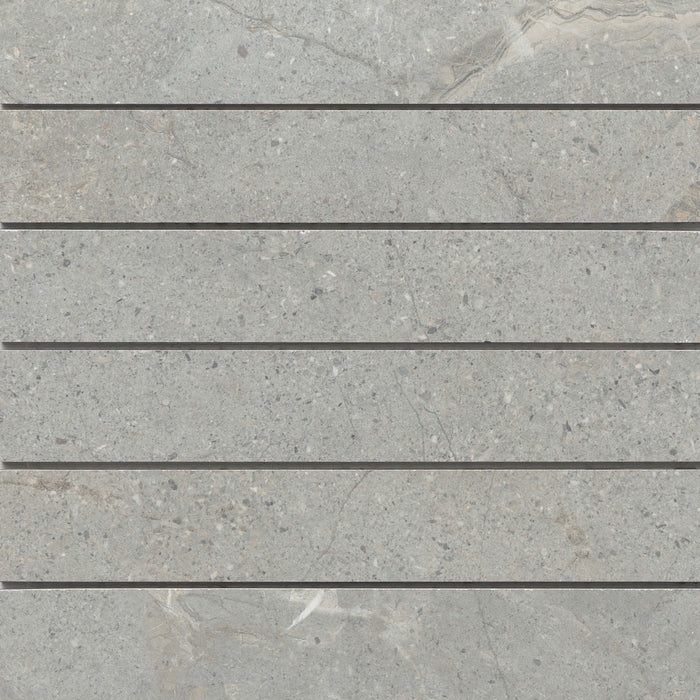

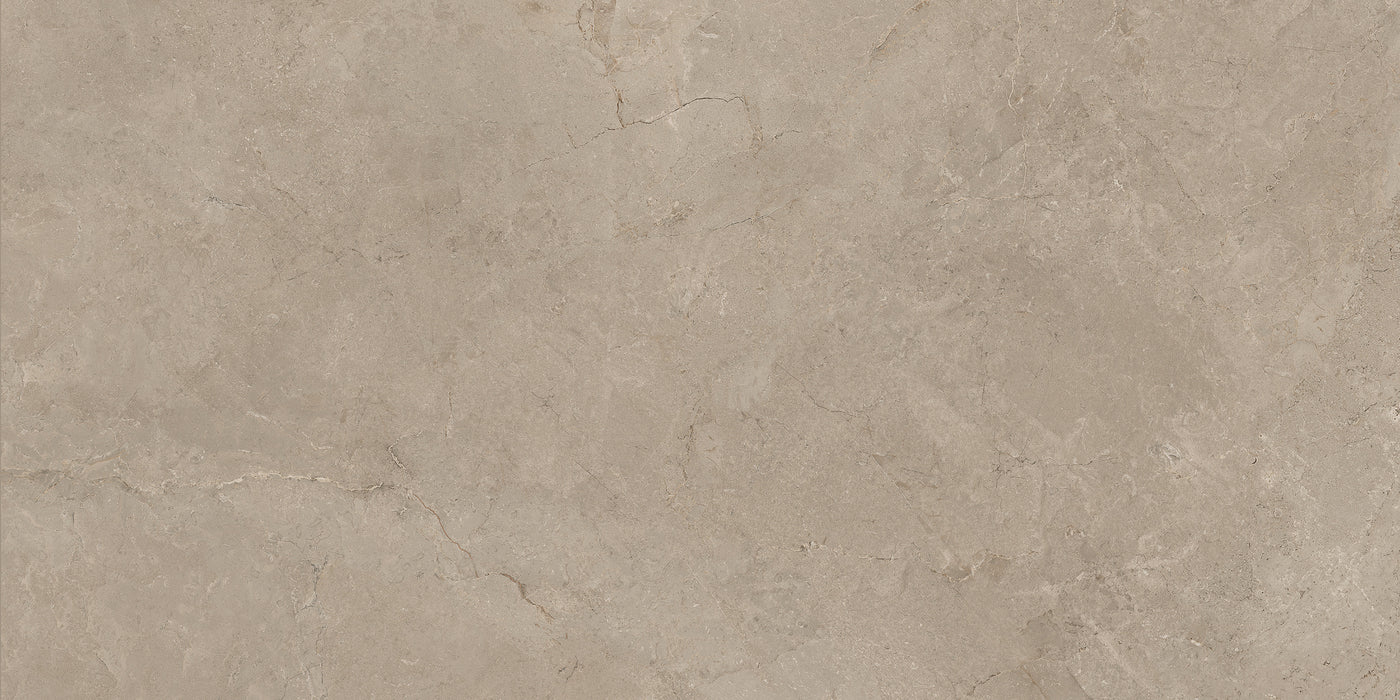

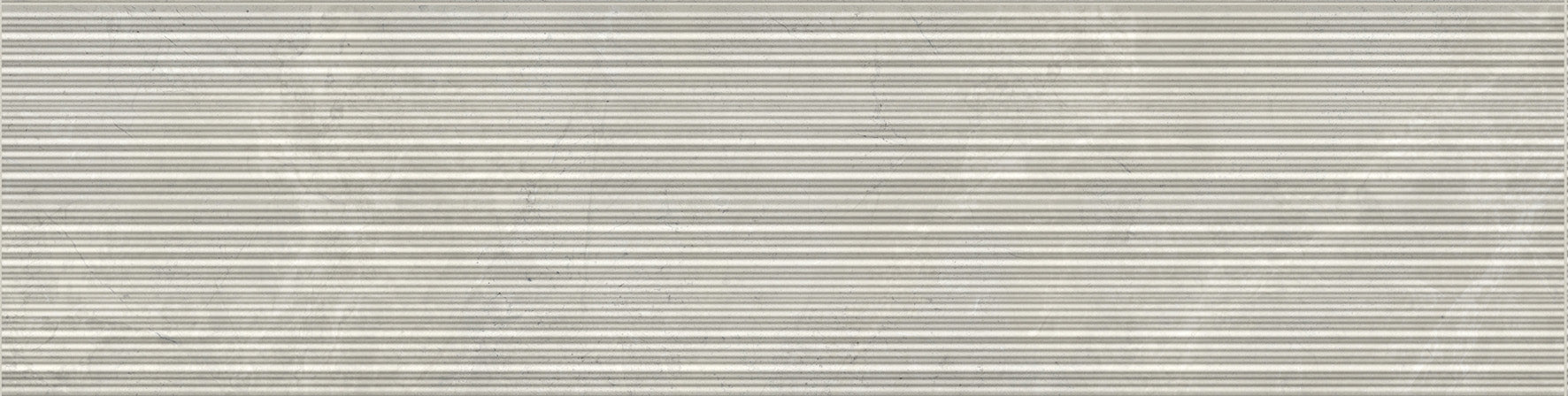

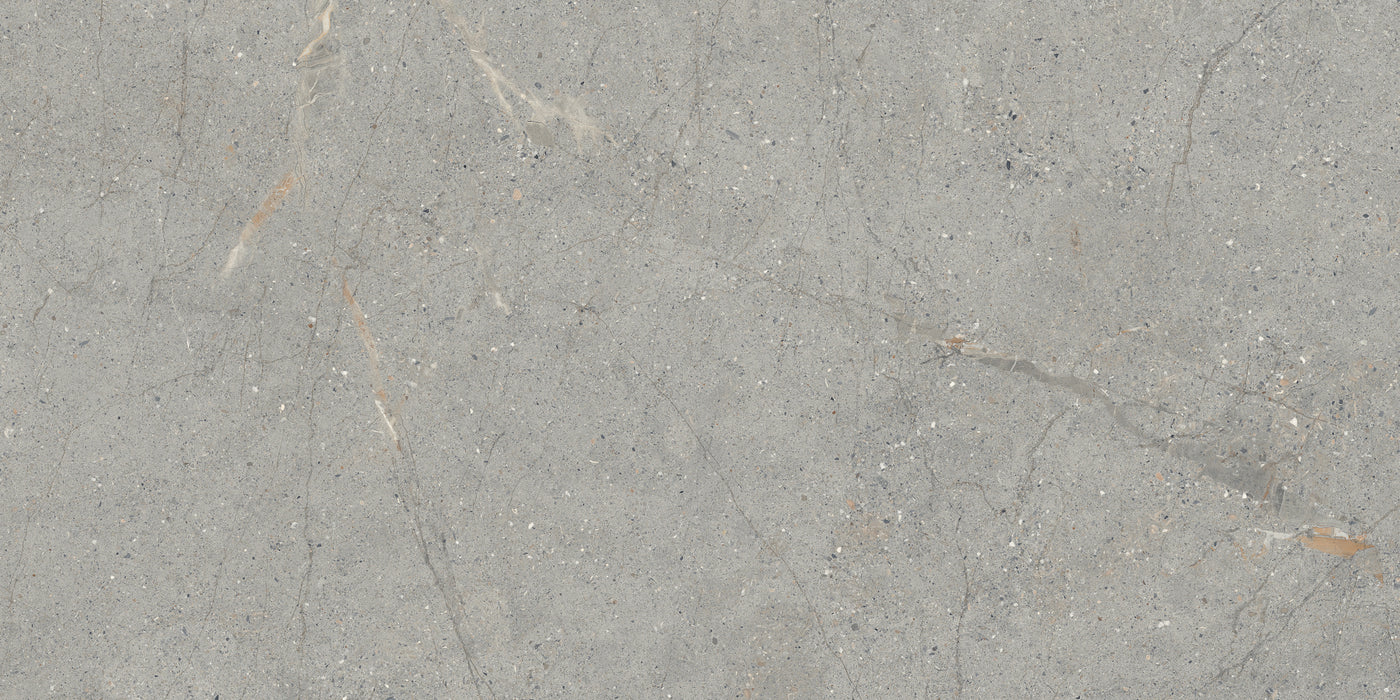

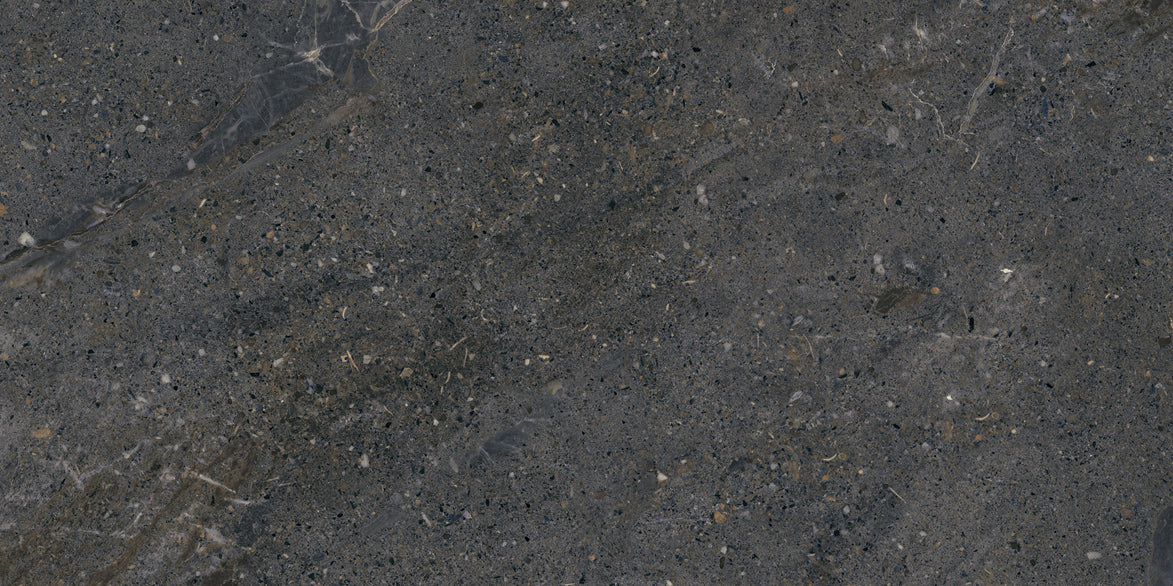

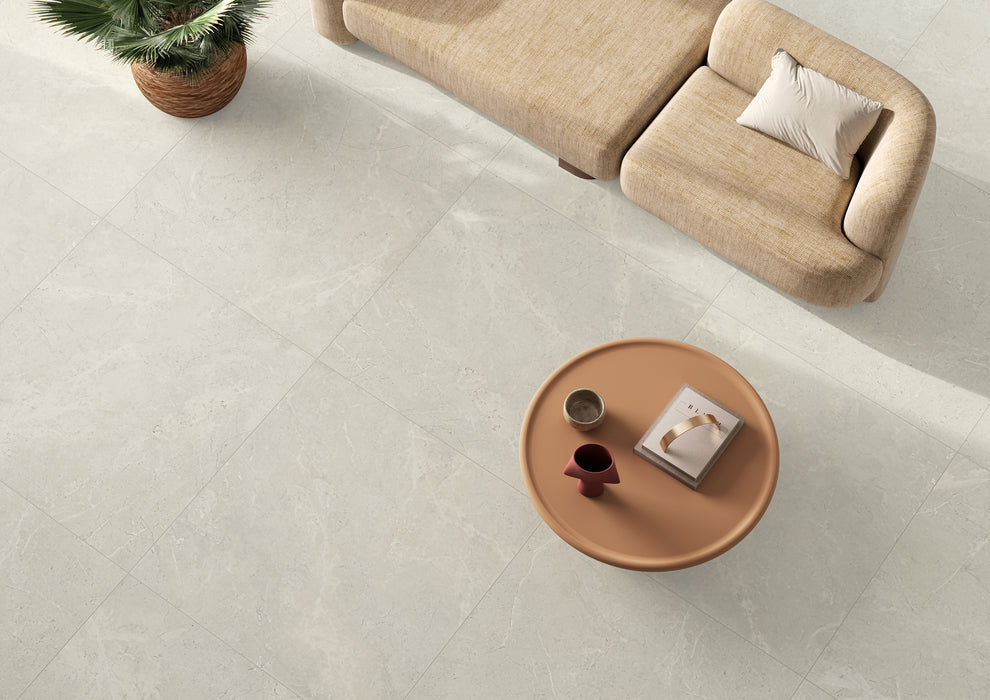

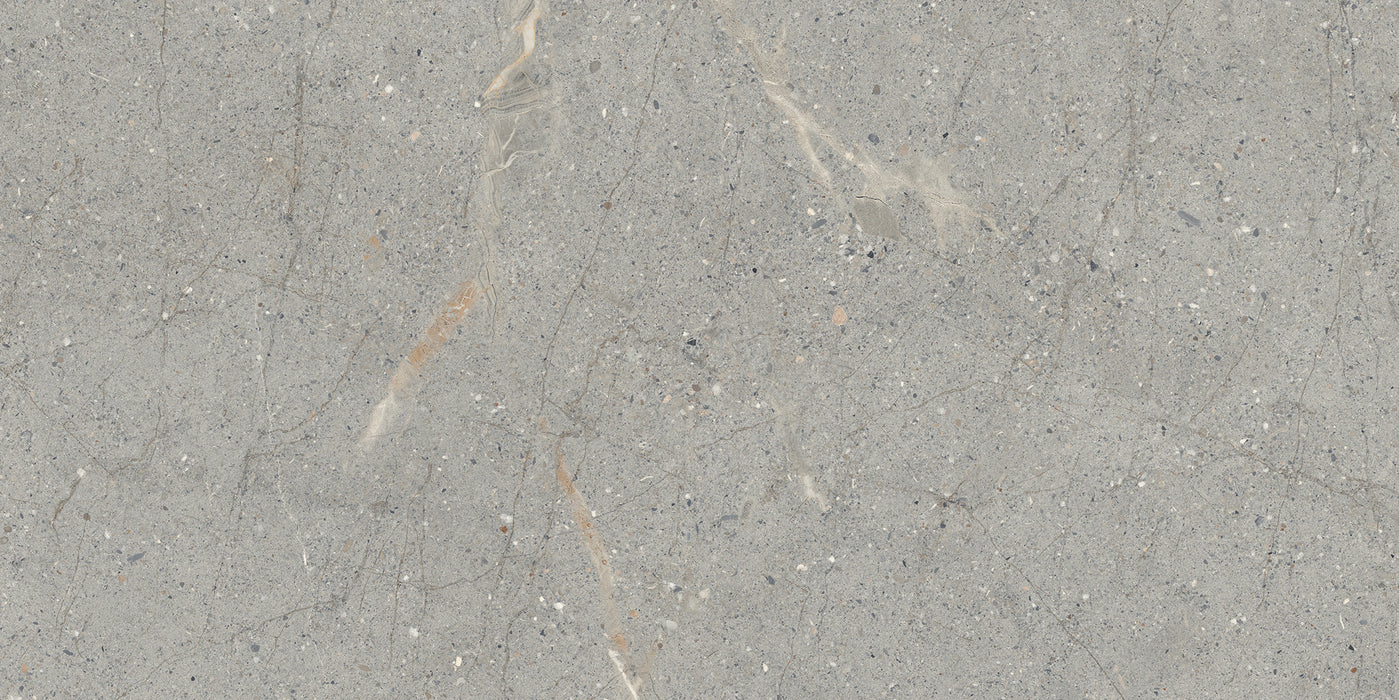

Terramor offers a realistic interpretation of natural stone that combines a genuine textural finish and a timeless color palette all in a low-maintenance porcelain body. This large format series creates a classic yet modern aesthetic especially when pairing the decorative groove and the flat tiles together in an interior setting. Available in four distinct sizes with a honed or matte finish.
5 Colors | 1 Pattern | 4 Sizes
Technical Specifications
| Nominal Size (in.) | 47" x 47"; 24" x 47"; 12" x 24"; 12" x 47"; 3" x 12" (Floor SBN) |
| Edge Detail | 47" x 47", 24" x 47", 12" x 24" & 12" x 47": Rectified Floor SBN: Cut/Rounded |
| Finish | Flat: Honed Groove Pattern: Matte |
| Faces |
47" x 47": 6 |
| Thickness (mm)* | 9mm |
| Grout Joint Recommendation (in.) | 1/8" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | Minimum Class III |
| Breaking Strength C648 | >350 |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.5% |
| DCOF AcuTest WET | >0.5 |
| Stain Resistance |
Resistant |
| Scratch Hardness MOHS | 7 |
| Shade Variation | V2 |
| VOC | VOC Free |
Download and View Care and Maintenance

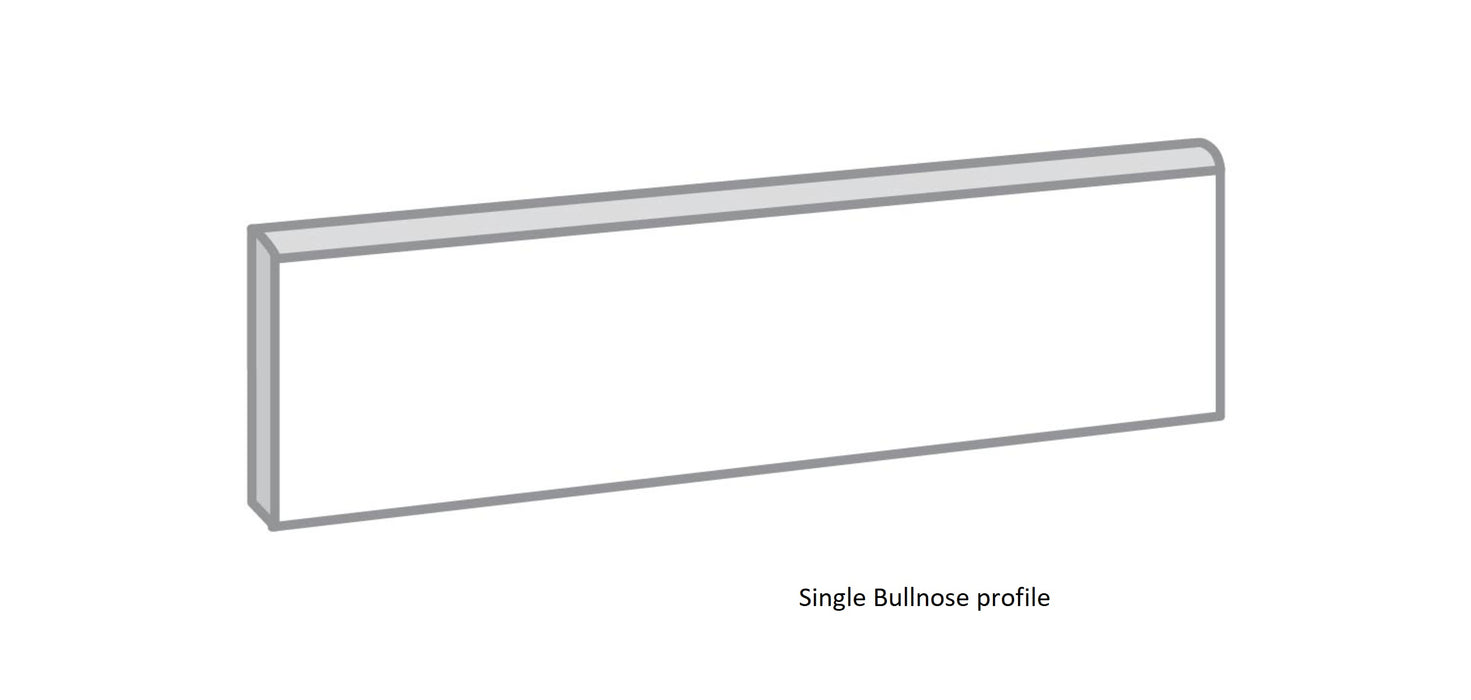

Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | Yes |
| COMMERCIAL FLOOR DRY* | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR |
Yes |
| COMMERCIAL SHOWER FLOOR |
No |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER |
Yes |
| STOVE AREA |
Yes |
| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | Yes |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE | Yes |
| UV STABLE | Yes |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
