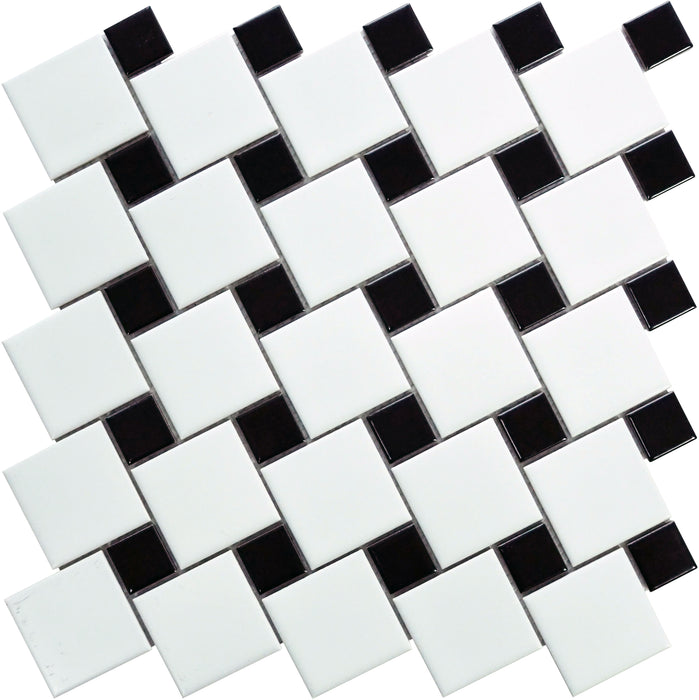

SPIN™
GLAZED PORCELAIN MOSAIC
Description
The vintage appeal of the classic pinwheel pattern comes home with Spin™ mosaic tile. The linear style offers a neutral option, while still celebrating layered looks and movement in design. The allure of this geometric mosaic remains ever-present today for its beauty and durability, especially for both kitchen and bath.
5 Colors
Technical Specifications
| Nominal Size (in.) | 11" x 11" Mesh |
| Edge Detail | Pressed |
| Finish | Matte |
| Faces | 1 |
| Thickness | 5.5mm |
| Lbs/PC | 1.93 |
| Grout Joint Recommendation (in.) | TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | II |
| DCOF AcuTest WET | <0.42 |
| Scratch Hardness MOHS | 3 |
| Breaking Strength C648 |
>250 LBF |
| Chemical Resistance C650 | Resistant |
| Stain Resistance |
Resistant |
| Water Absorption C372 | <0.5% |
| Shade Variation | V1 |
Download and View Care and Maintenance
Sizes and Trim
11" x 11”
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | NO |
| COMMERCIAL FLOOR DRY* | NO |
| RESIDENTIAL FLOOR | YES |
| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| RESIDENTIAL SHOWER FLOOR |
YES |
| COMMERCIAL SHOWER FLOOR |
NO |
| STEAM SHOWER | YES |
| KITCHEN COUNTER |
NO |
| STOVE AREA |
YES |
| FIREPLACE FAÇADE | YES |
| EXTERIOR WALL | YES |
| EXTERIOR FLOOR (NOT POOL) | NO |
| POOL WATERLINE |
YES |
| UV STABLE |
YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
