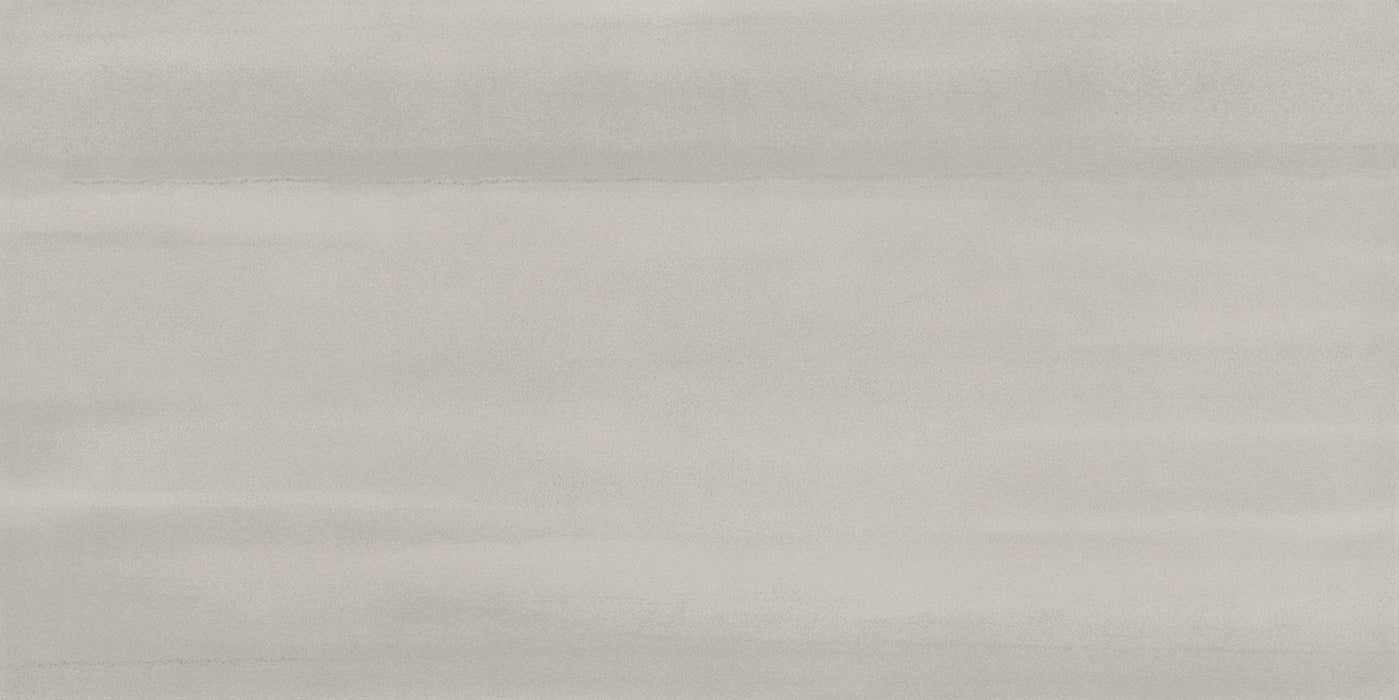

SILHOUETTE™
GLAZED PORCELAIN
Description

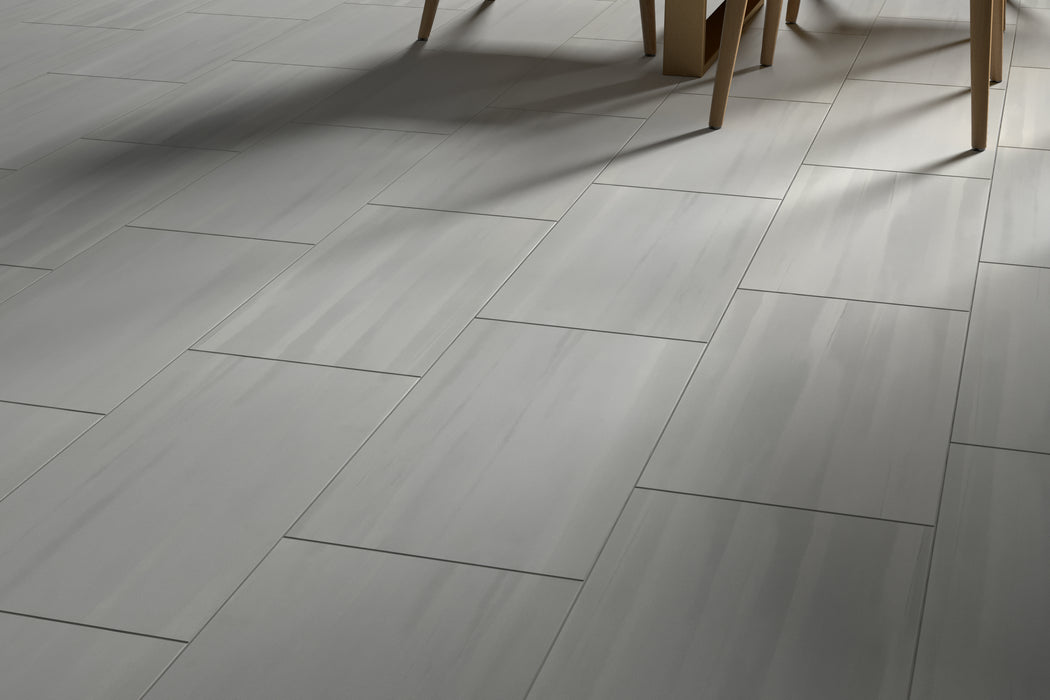

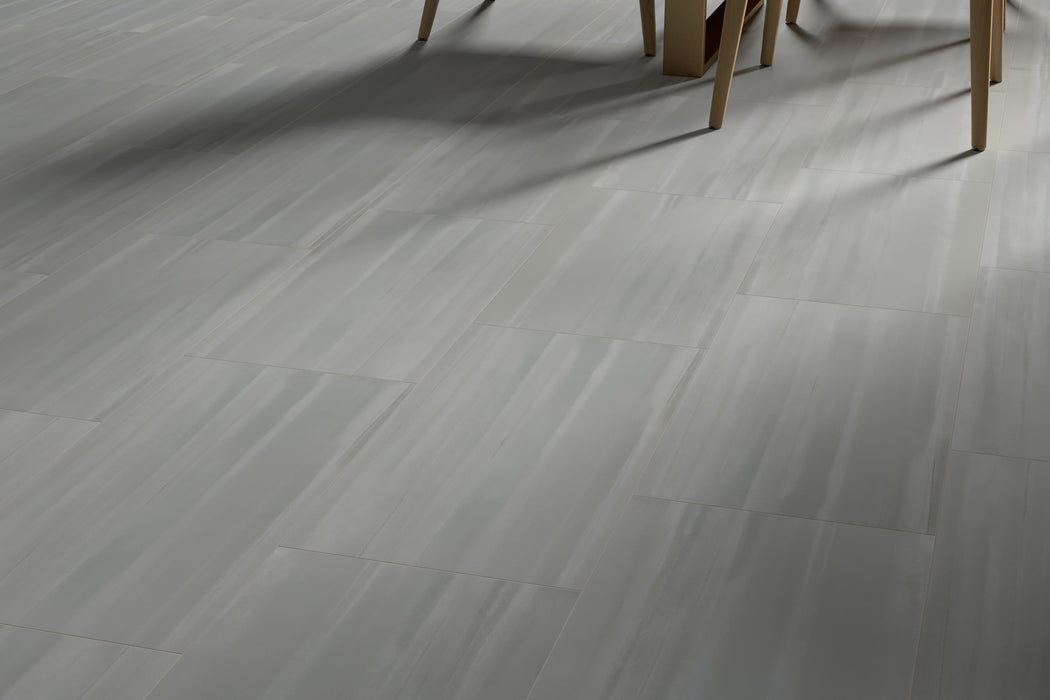

Inspired by the artistic blend of watercolors, Silhouette™ strides in with soft tones and linear flow creating an inviting environment.
4 Colors | 2 Sizes
Technical Specifications

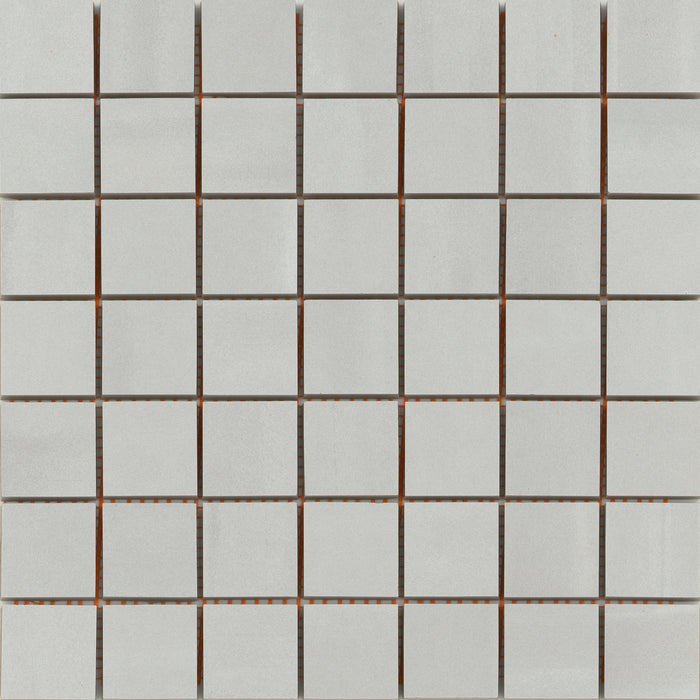

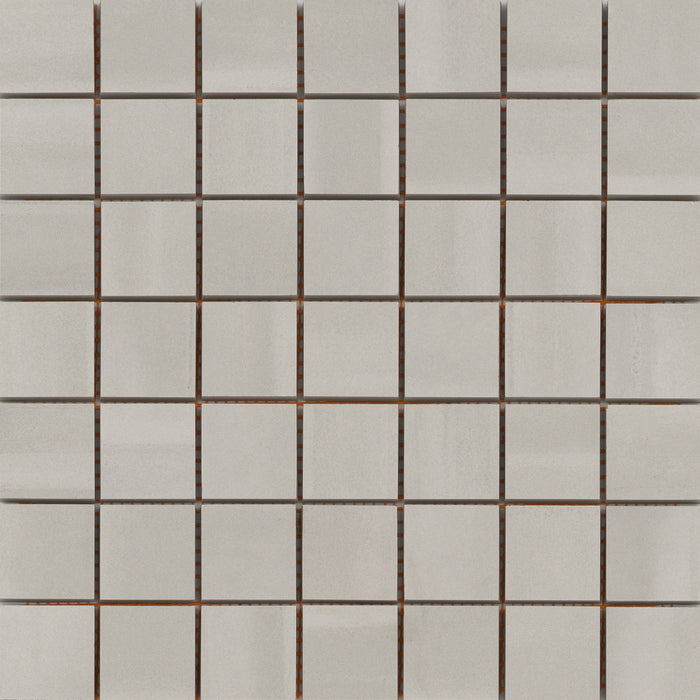

| Nominal Size (in.) | 12 x 24 | 2" x 2" on 12” x 12” Mosaic |
| Edge Detail | Pressed | Cut |
| Finish | Matte | Matte |
| Faces | 6 | Random |
| Thickness (in.)* | 3/8 | 25/64 |
| Lbs/PC | 8.71 | 4.95 |
| Grout Joint recommendation (in.) | 3/16 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
**TIP ( Testing is in progress, and results will be available soon.)
Testing
| Method | Results |
| Abrasion Resistance C1027 | III |
| Breaking Strength C648 | ≥700 lbf |
| Chemical Resistance C650 | Not Resistant |
| Water Absorption C373 | ≤0.50% |
| DCOF AcuTest WET | ≥0.55 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 6 |
| Shade Variation | V3 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care and Maintenance
**TIP ( Testing is in progress, and results will be available soon.)

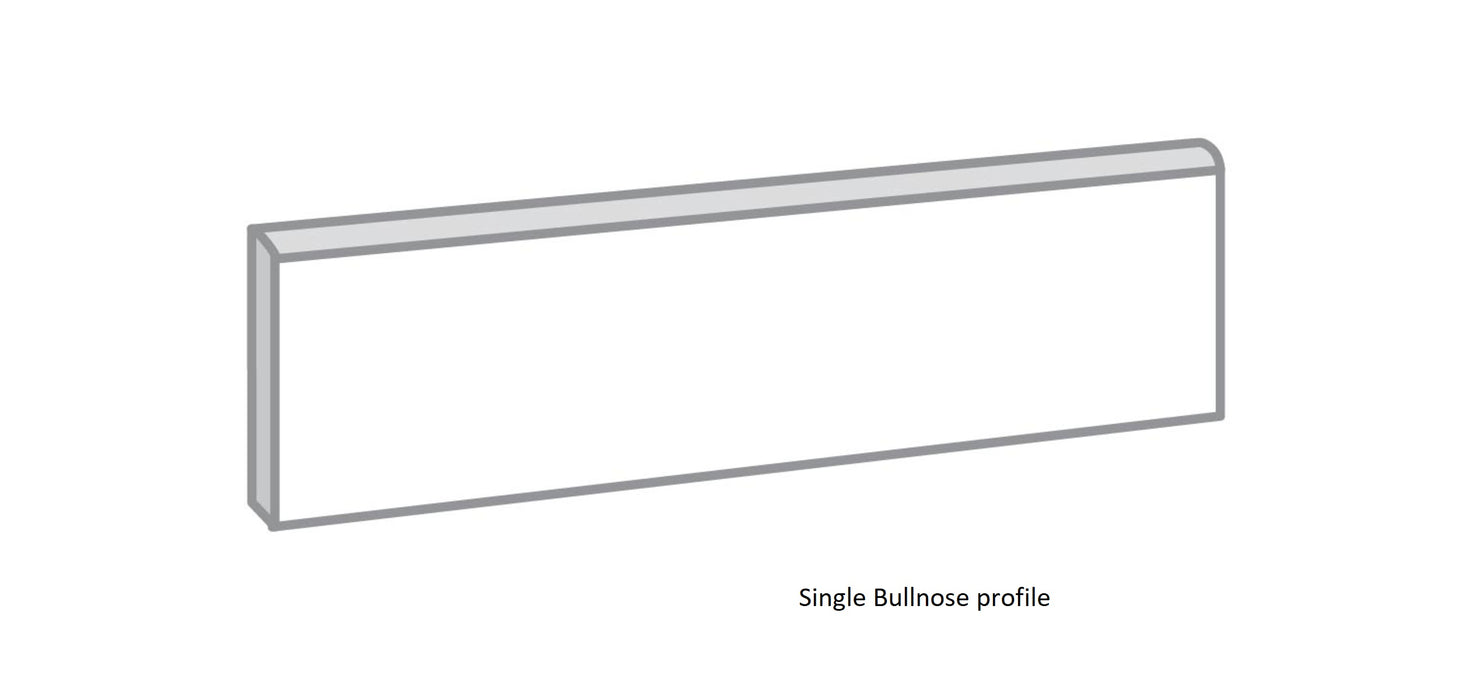

Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |

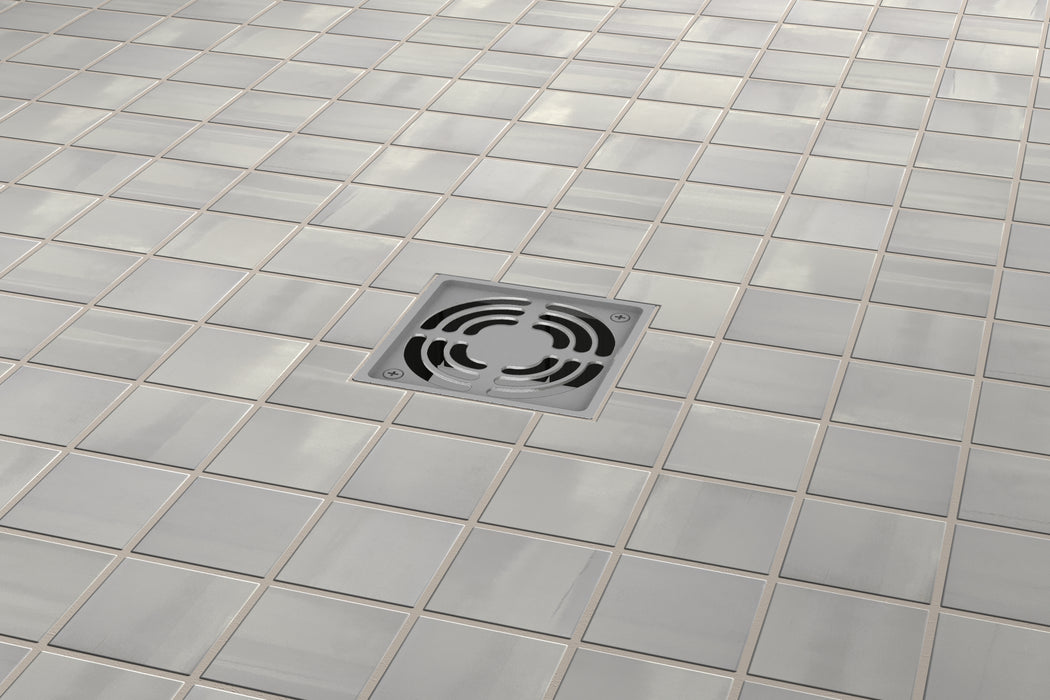

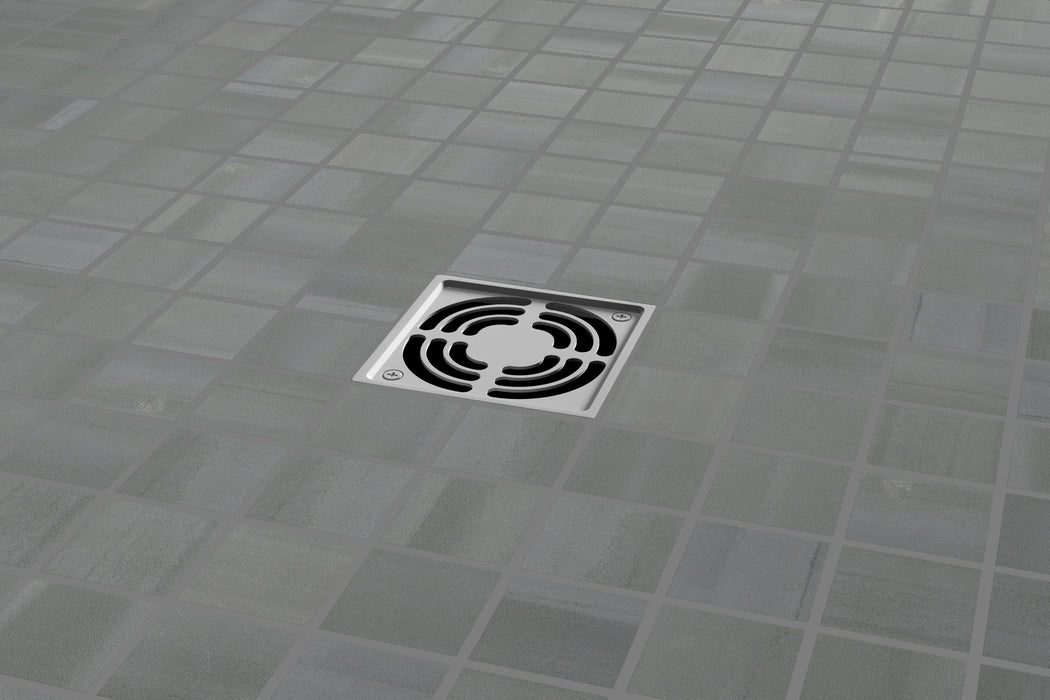

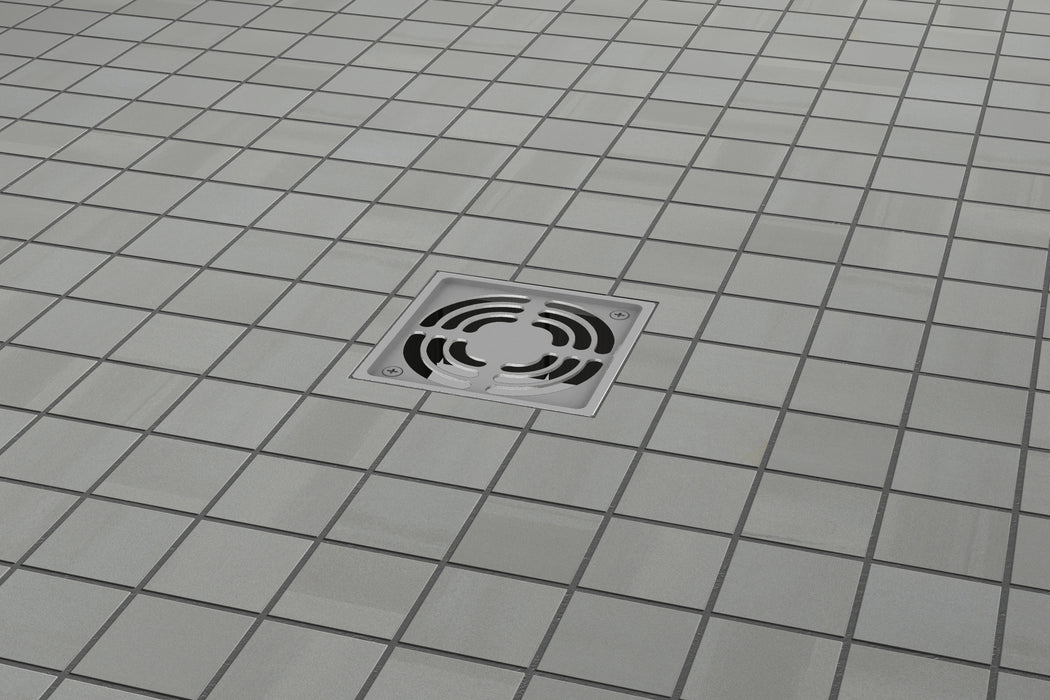

| SHOWER FLOOR | Yes |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
| POOL DECK | No |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
