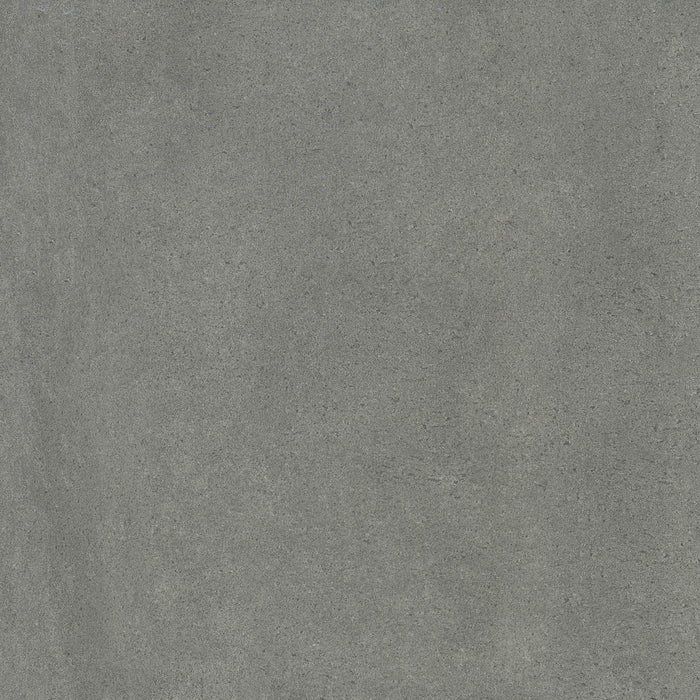

PORTO II™
GLAZED PORCELAIN
Description

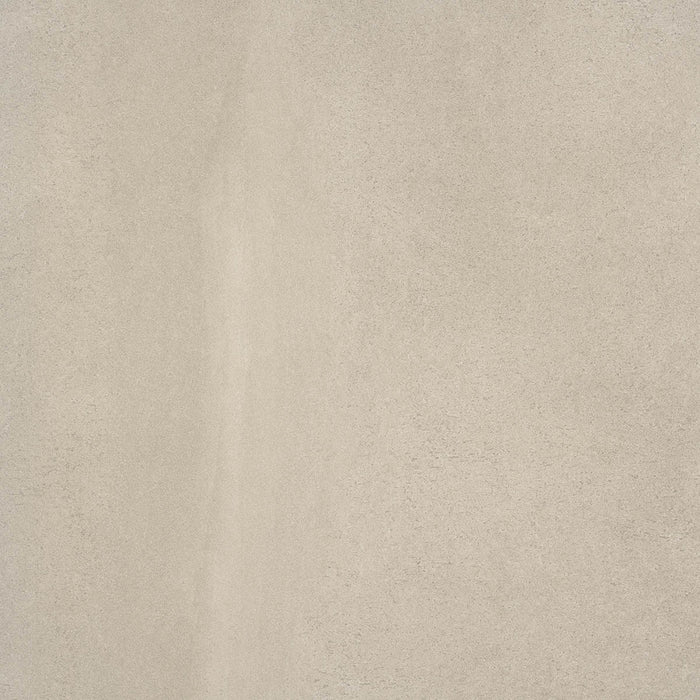

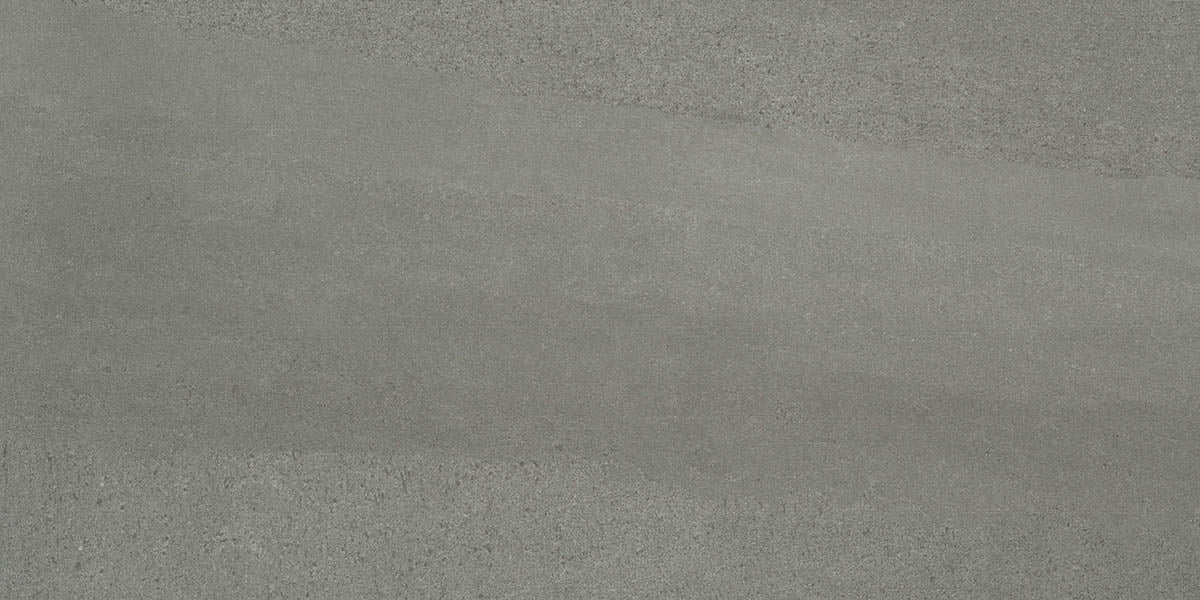

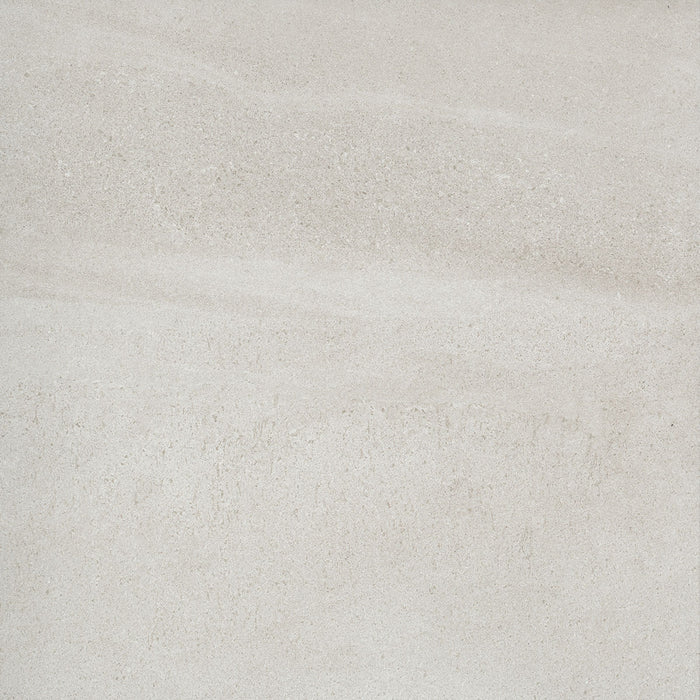

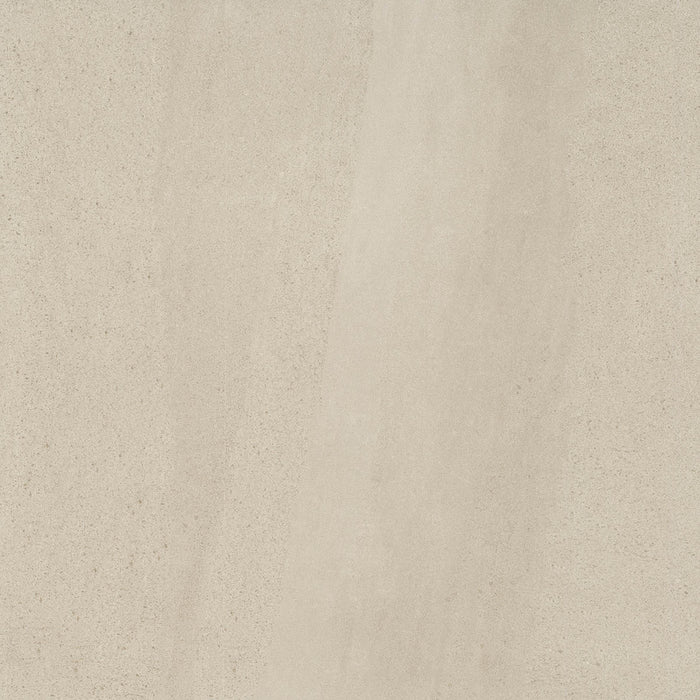

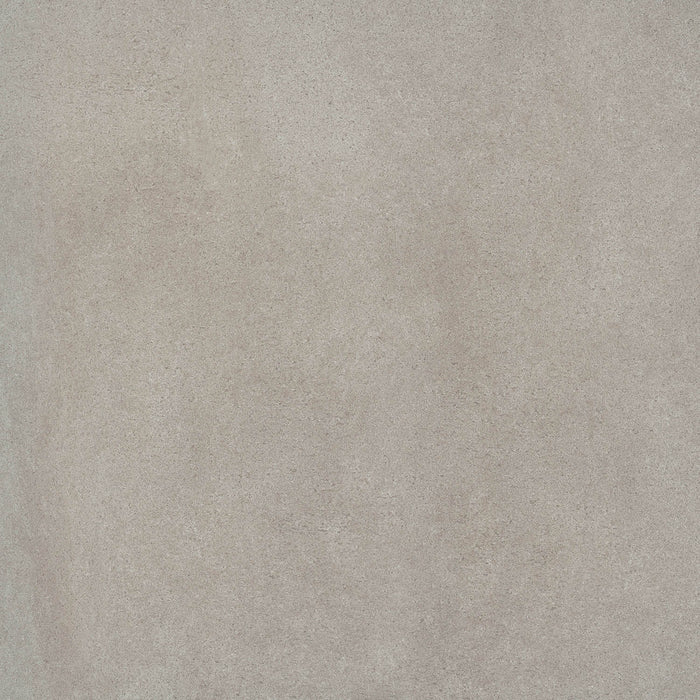

Porto II™ is inspired by the simplistic look of concrete and stone in large format sizes and a range of colors.
6” x 12” Cove Base pieces available for this series. MOQ and lead-times apply. Consult an Emser associate for details.
4 Colors | 3 Sizes | 2 Finishes
Technical Specifications
| Nominal Size (in.) | 32 x 32 | 24 x 24 | 12 x 24 |
| Edge Detail | Rectified | Rectified | Rectified |
| Finish | Matte / Polished | Matte / Polished | Matte / Polished |
| Faces | 8 | 8 | 10 |
| Thickness (mm.)* | 10 | 9 |
9 |
| Lbs/PC | 32.52 | 15.09 | 8.82 |
| Grout Joint Recommendation (in.) | 3/16 | 3/16 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
**TIP ( Testing is in progress, and results will be available soon.)
Testing
| Method | Results |
| Abrasion Resistance C1027* | III |
| Breaking Strength C648 |
>550 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.50% |
|
DCOF AcuTest WET |
>0.50 (M), <0.42 (P) |
| Scratch Hardness MOHS | 7 (M), 6(P) |
| Shade Variation | V3 |
| VOC | 0% |
Download and View Care And Maintenance
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
**TIP ( Testing is in progress, and results will be available soon.)
Sizes and Trim

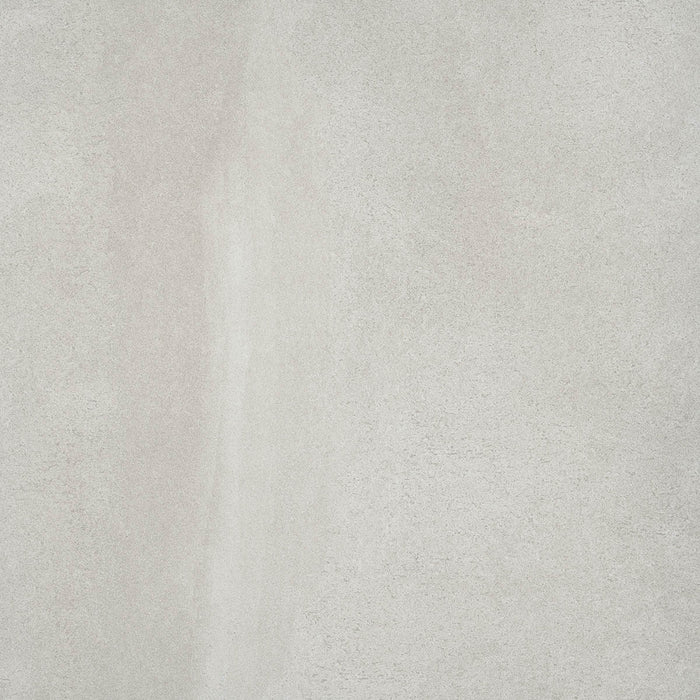

32" x 32"

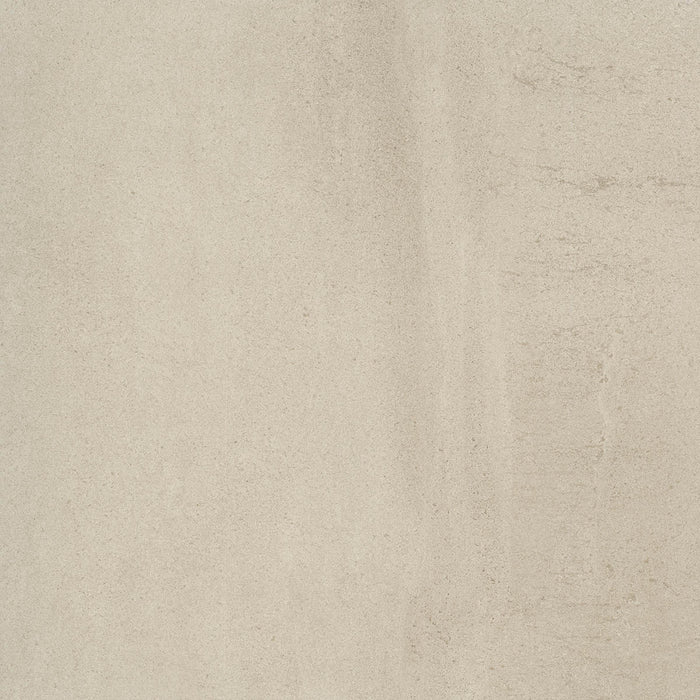

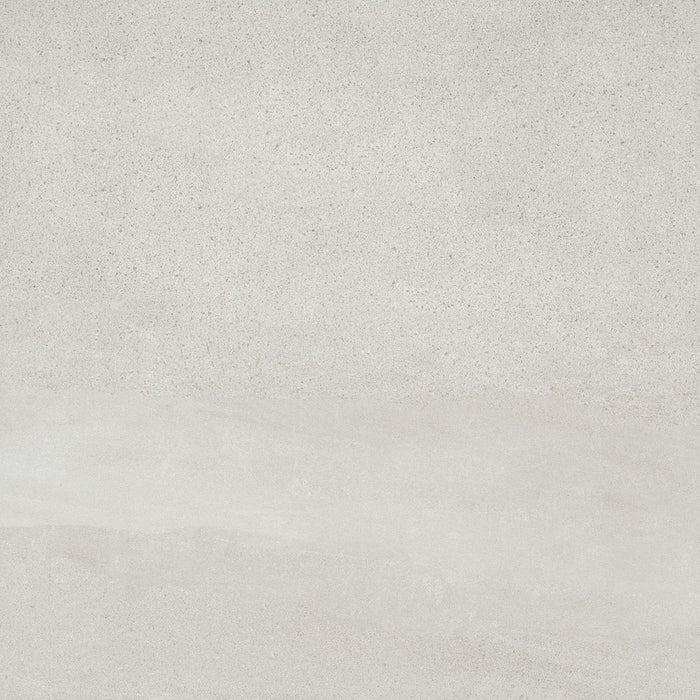

24" x 24"

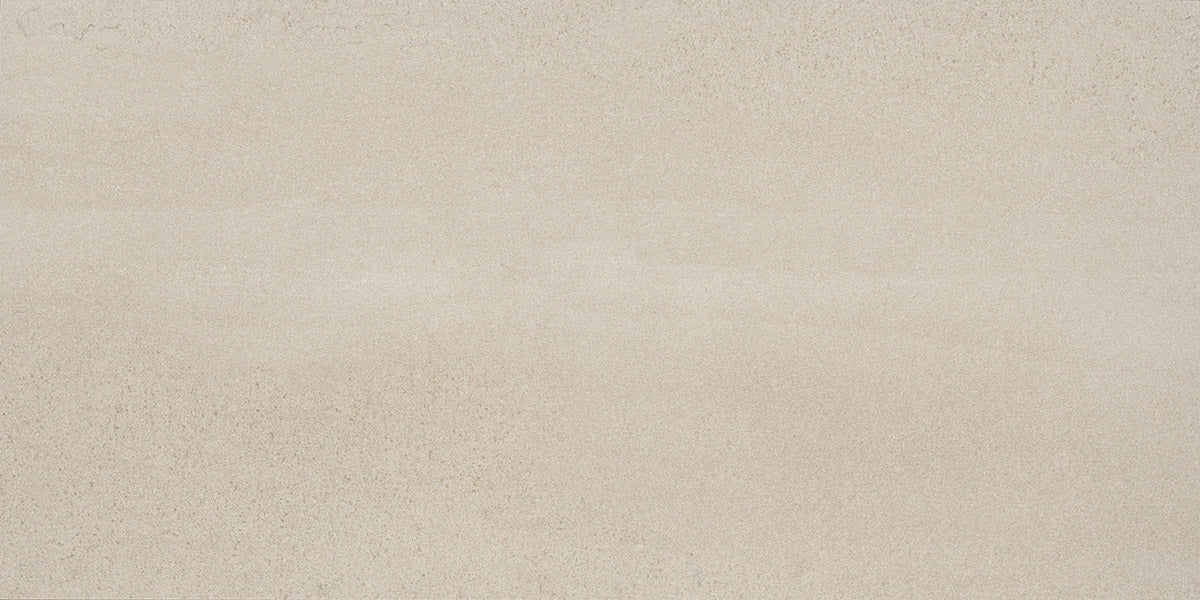

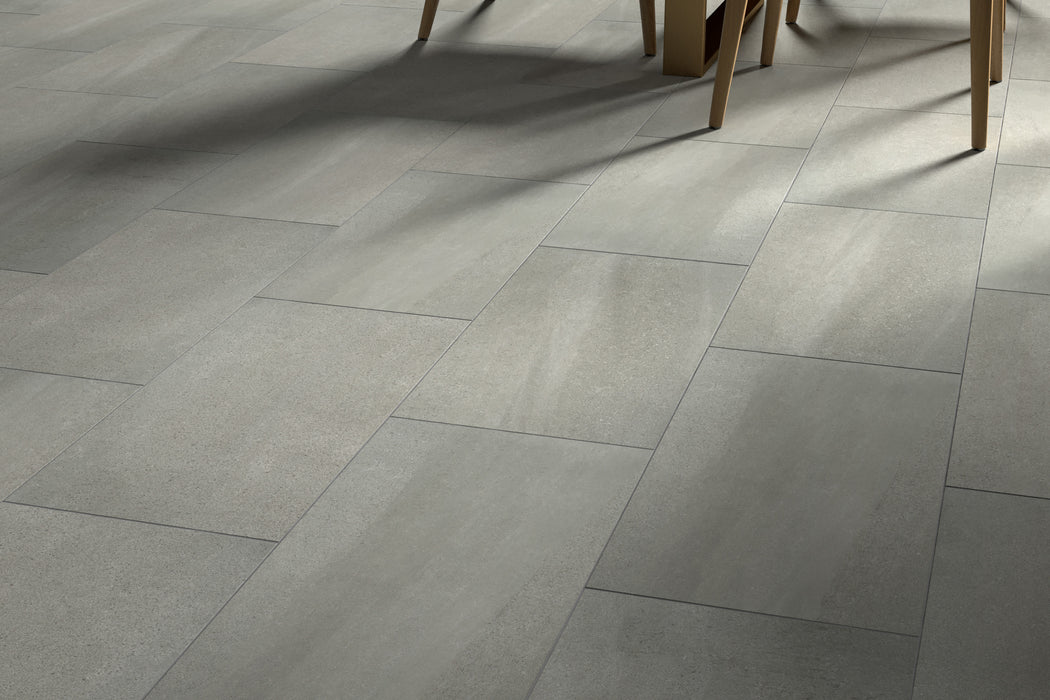

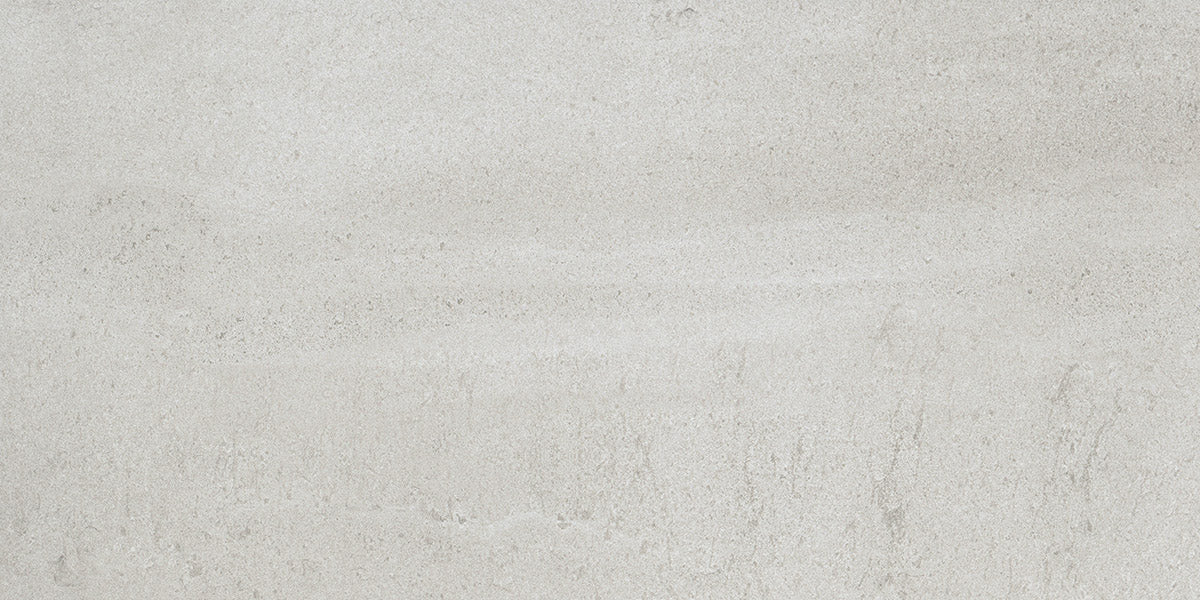

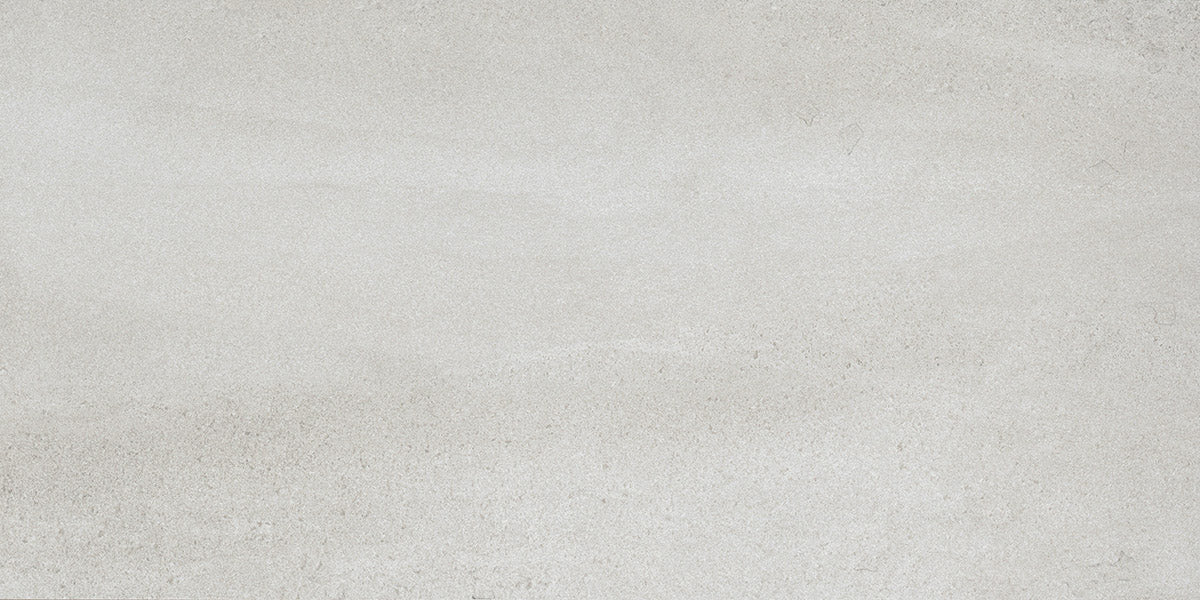

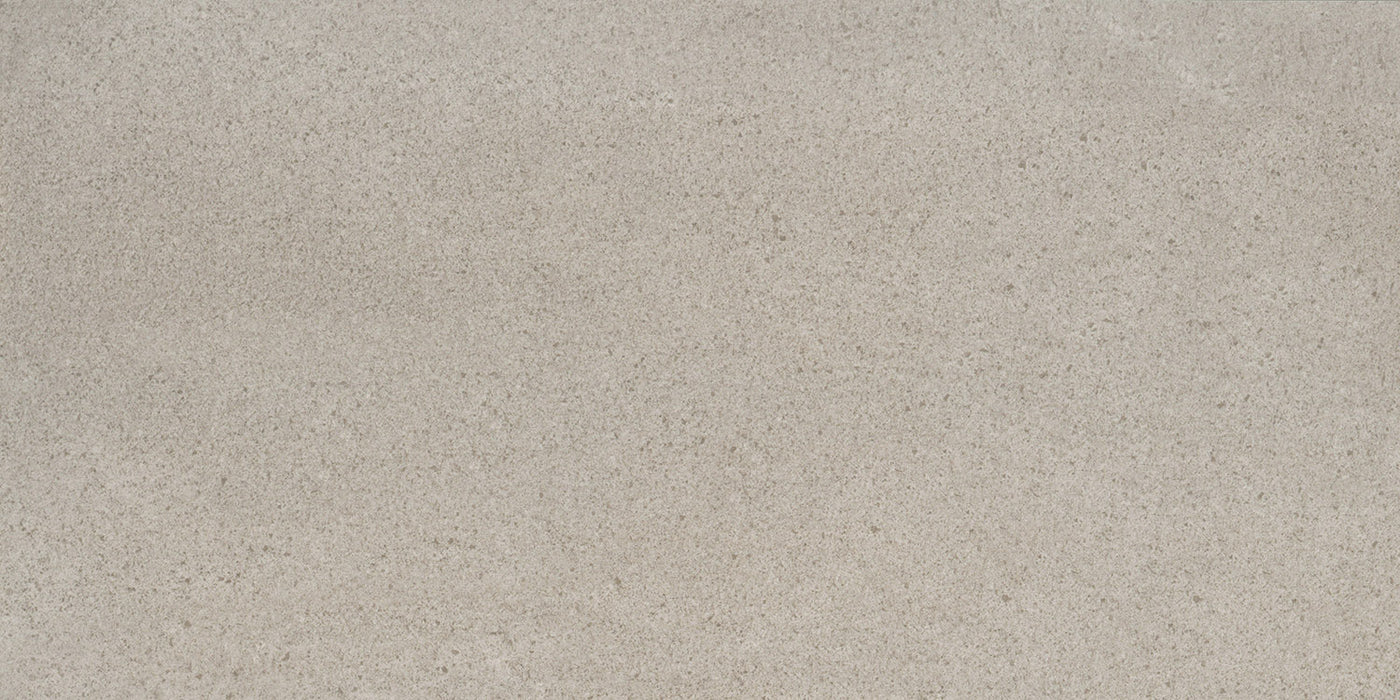

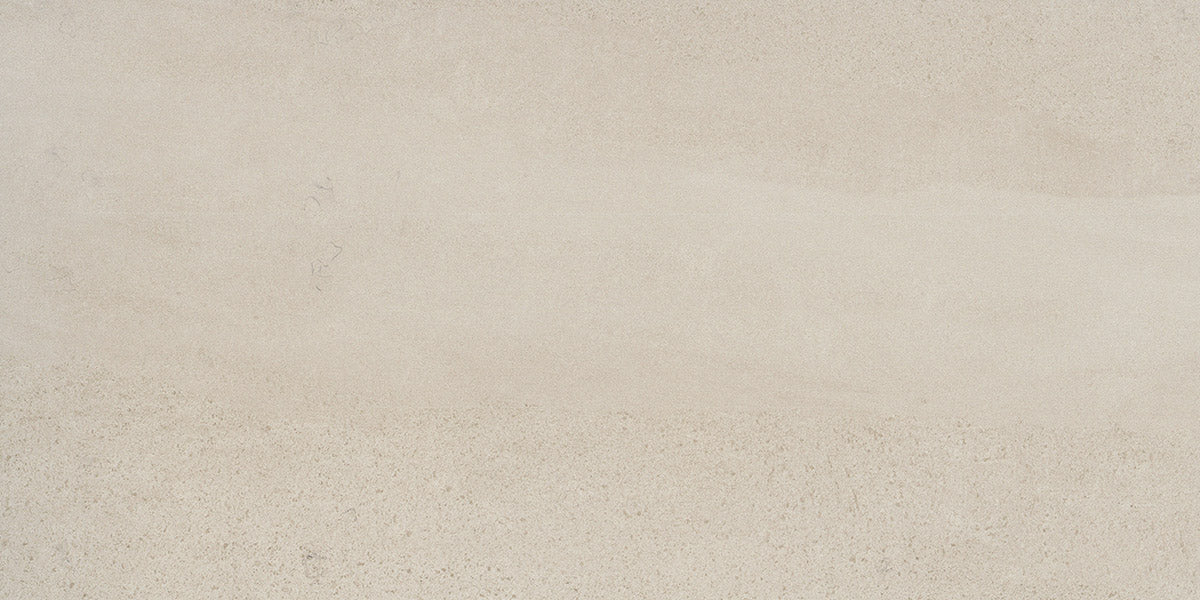

12" x 24"

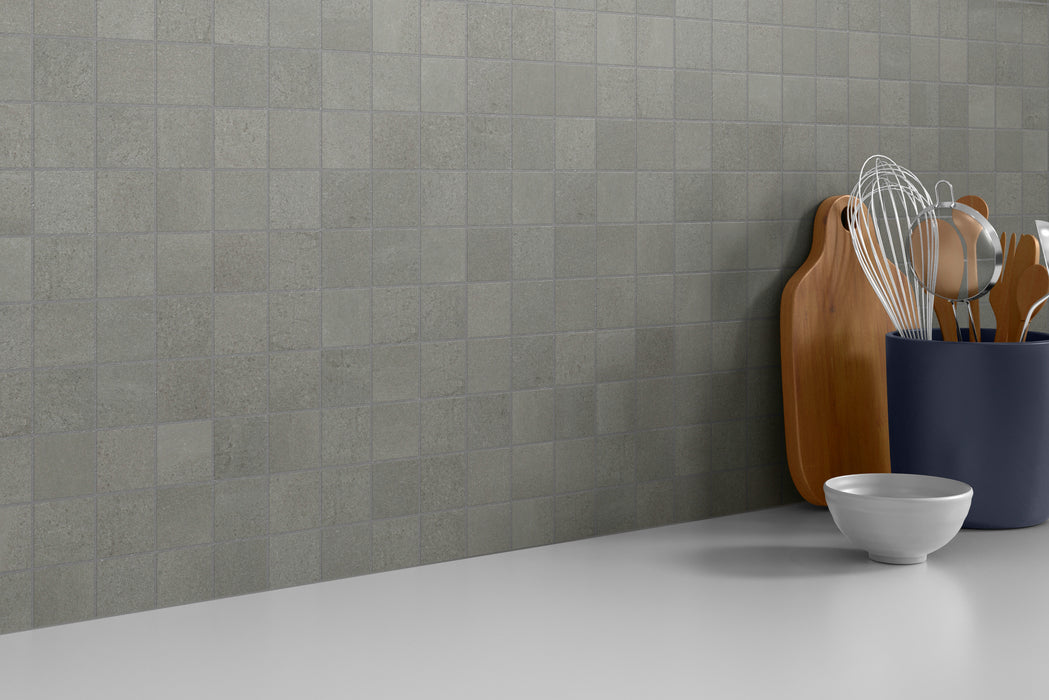

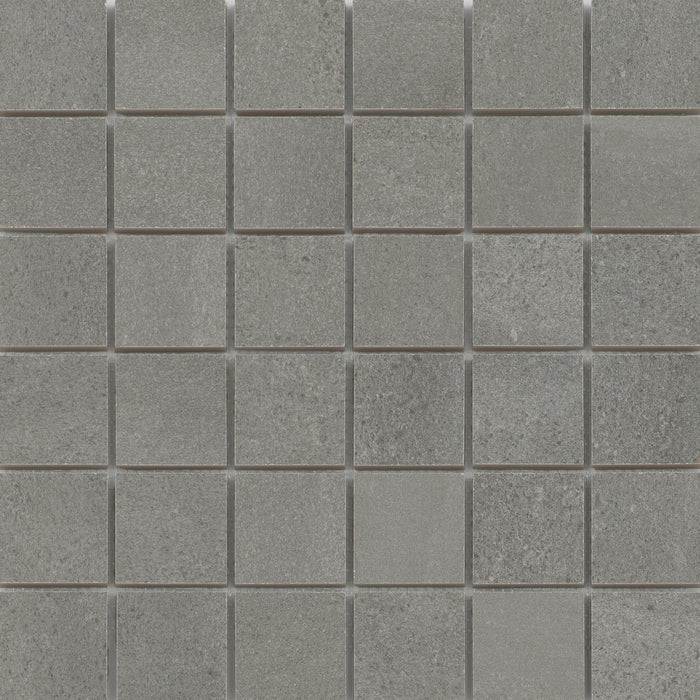

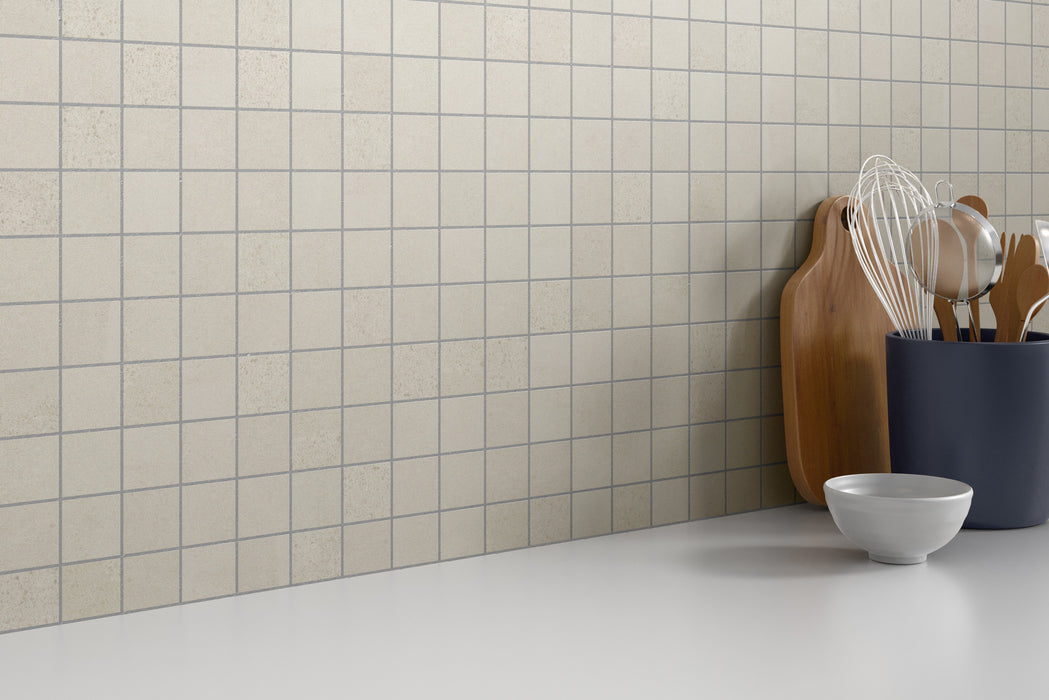

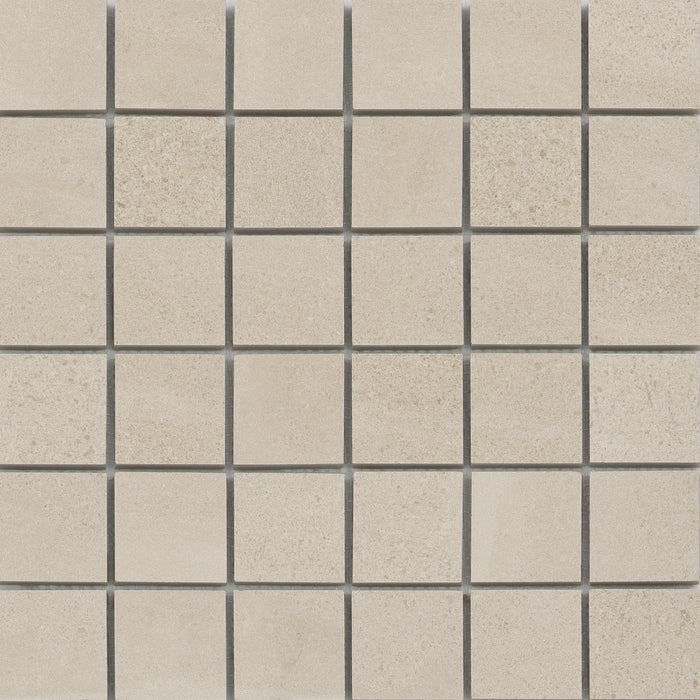

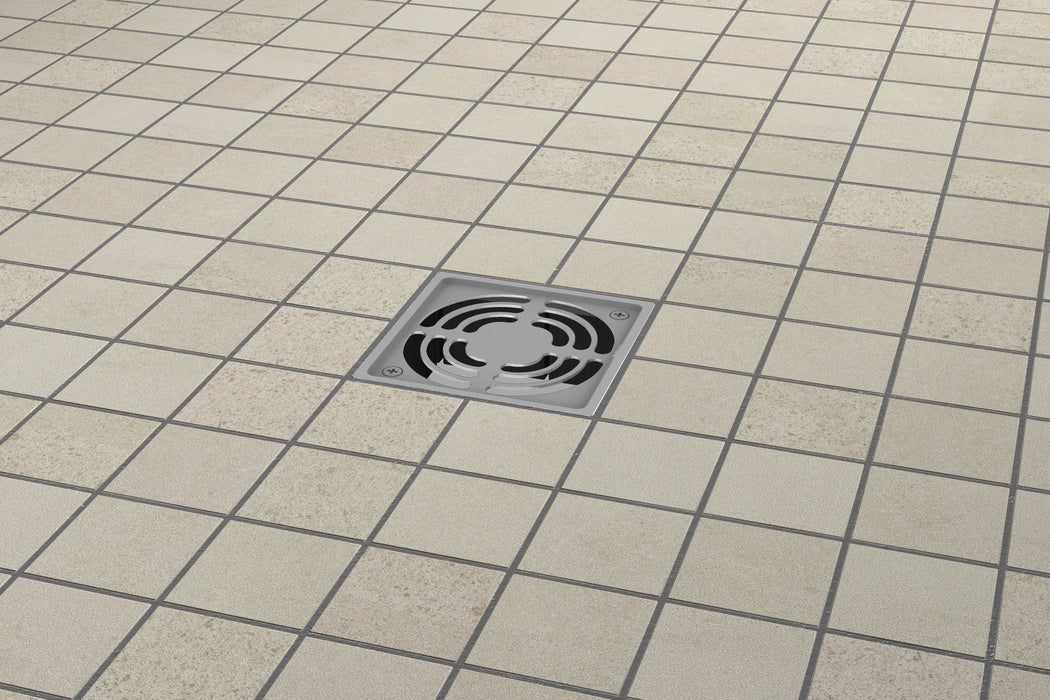

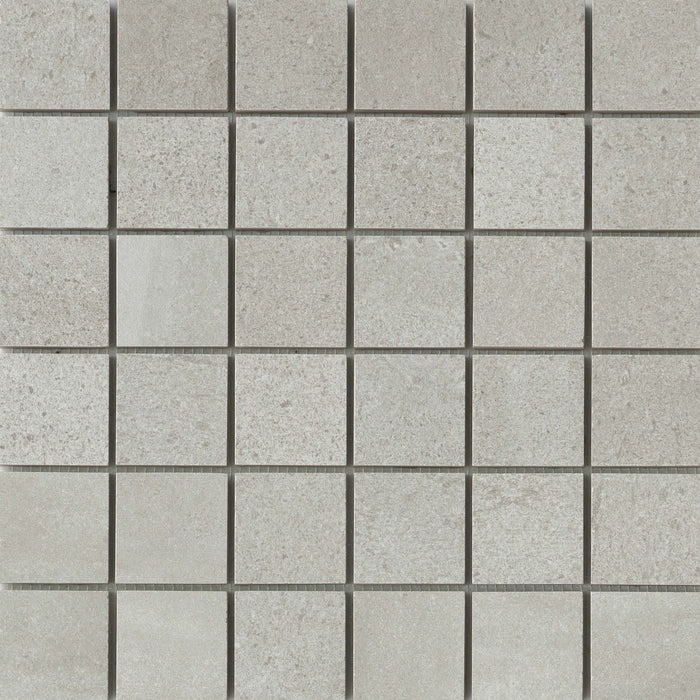

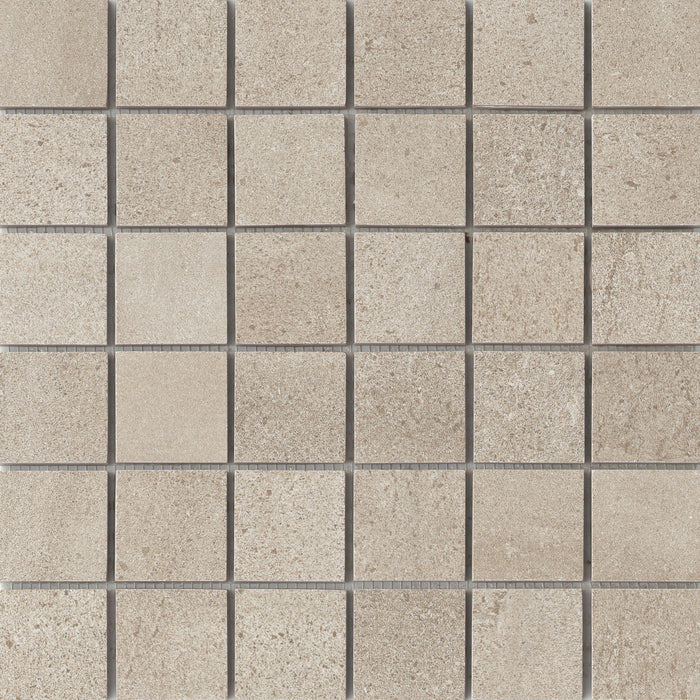

2" x 2" Mosaic on 12" x 12" Mesh

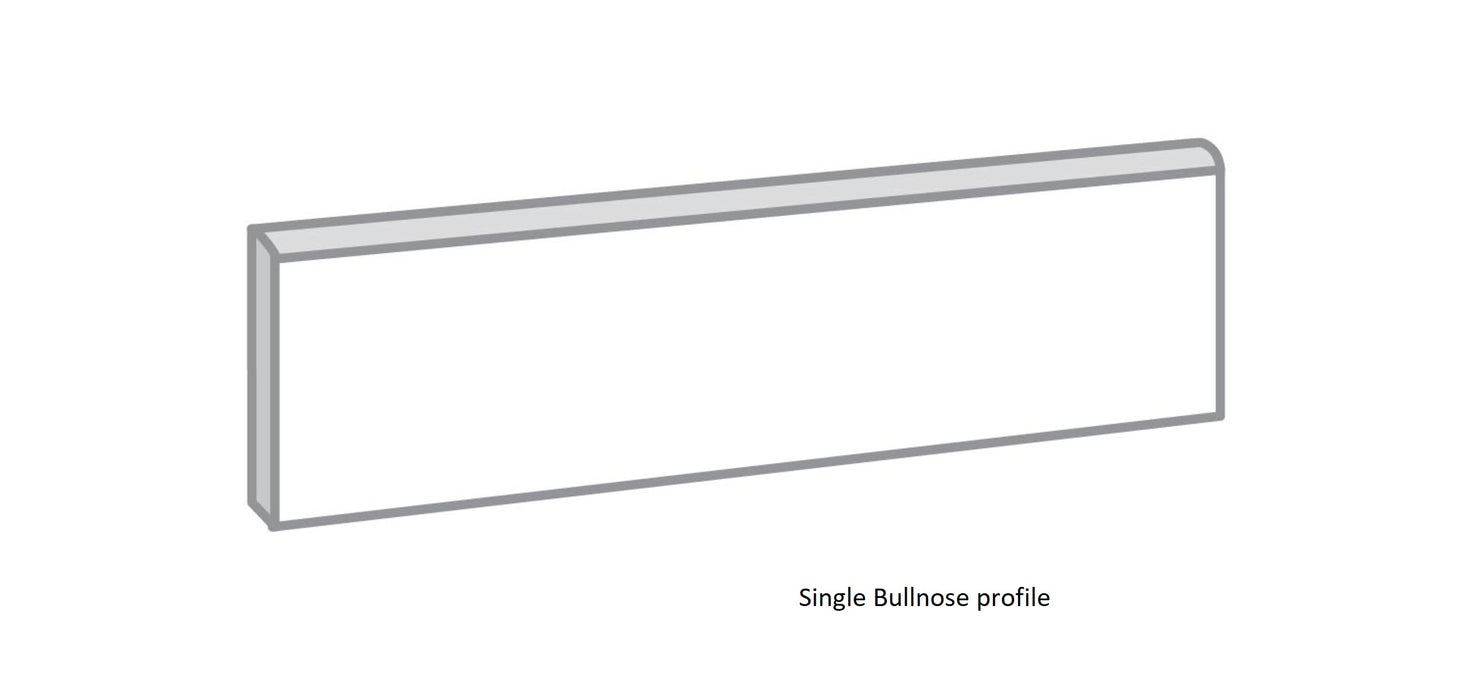

3" x 12" Floor SBN
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR | YES |
| RESIDENTIAL FLOOR | YES |
| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| SHOWER FLOOR | NO |
| STEAM SHOWER | YES |
| KITCHEN COUNTER | YES |
| STOVE AREA | YES |
| FIREPLACE FACADE | YES |
| COVERED EXTERIOR WALL FREEZING CLIMATES | YES |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | YES |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | YES |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | YES |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | NO |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | NO |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | NO |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | NO |
| POOL DECK | NO |
| SPA / HOT TUB | YES |
| UV/ SUN EXPOSURE SENSITIVE | NO |
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
