LEGATI™
GLAZED PORCELAIN
Description

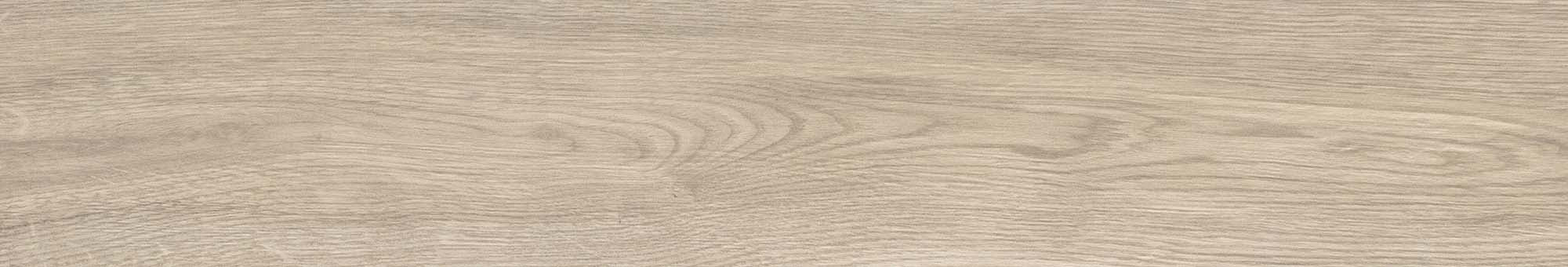

Inspired by rustic wood, Legati™ is a glazed porcelain series available in earthy colors and a trending plank format.
5 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 8" x 47" |
| Edge Detail | Rectified |
| Finish | Matte |
| Faces | 36 |
| Thickness (mm)* | 9mm |
| Lbs/PC | TIP |
| Grout Joint Recommendation (in.) | 1/8" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | II (Brown) III (Havana) IV (White, Sand Gray) |
| Breaking Strength C648 | >350 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.5% |
| DCOF AcuTest WET | >0.42% |
| Freeze-Thaw Cycling C1026 | TIP |
| Scratch Hardness MOHS | 7 |
| Shade Variation | V3 |
| VOC | VOC Free |
Download and View Care and Maintenance
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | YES |
| COMMERCIAL FLOOR DRY* | YES |
| RESIDENTIAL FLOOR | YES |
| RESIDENTIAL AND COMMERCIAL WALL | YES |
| SHOWER WALL | YES |
| RESIDENTIAL SHOWER FLOOR |
YES |
| COMMERCIAL SHOWER FLOOR |
NO |
| STEAM SHOWER | NO |
| KITCHEN COUNTER |
NO |
| STOVE AREA |
YES |
| FIREPLACE FAÇADE | YES |
| EXTERIOR WALL | YES |
| EXTERIOR FLOOR (NOT POOL) | NO |
| POOL WATERLINE | YES |
| FULLY SUBMERSIBLE | NO |
| UV STABLE | YES |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
