EXPLORER™
GLAZED PORCELAIN
Description
Explorer™ artfully incorporates the look of reclaimed wood and stone providing an urban feel in four alluring colors and mosaics using HD technology.
4 Colors | 2 Sizes | 1 Mosaic
Technical Specifications
| Edge Detail | Pressed |
|
|
|
|
| Finish | Matte |
|
|
|
|
| Faces | Random |
|
|
|
|
| Thickness (in.)* | 3/8 |
|
|
|
3/8 |
| Lbs/PC | 6.5 | 8.6 | 8.49 | 4.08 | 3.34 |
| Grout Joint Recommendation (in.) | 3/16 |
|
|
|
3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | IV |
| Breaking Strength C648 |
|
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 |
|
|
DCOF AcuTest WET |
≥.60 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
|
|
|
0% |
|
|
0% |
| VOC | None |
Download and View Care and Maintenance
Sizes and Trim
12”x 24” 11.81”x 23.62”)

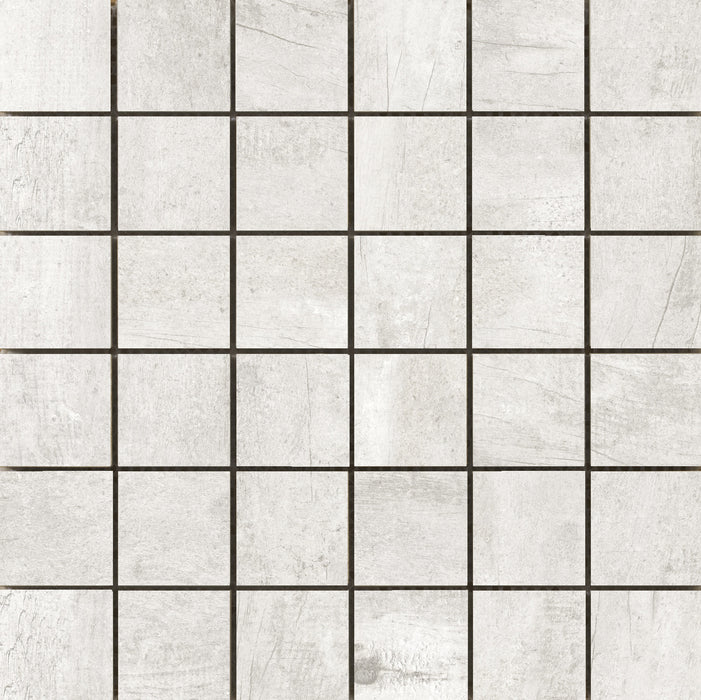

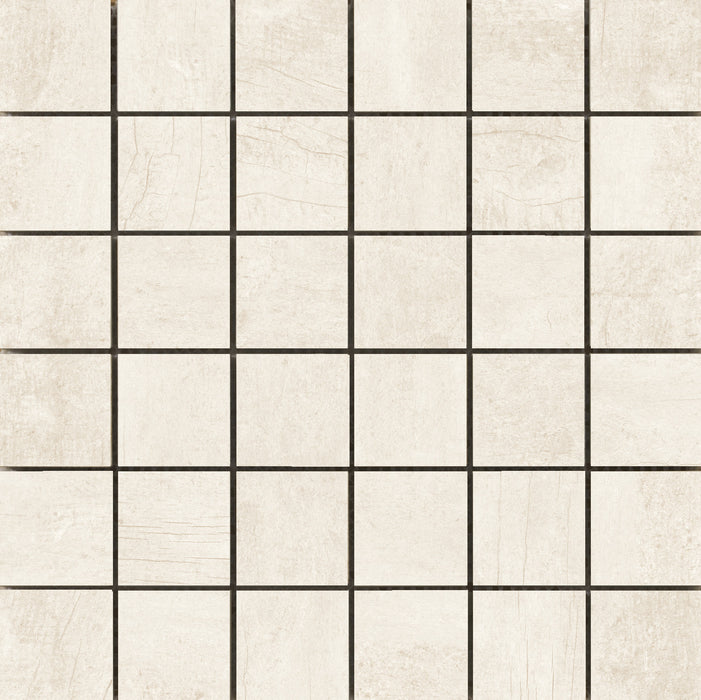

2"x2" on 13”x 13” Mesh Mosaic (12.60”x 12.60”)
3”x13” Floor SBN
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR |
|
| RESIDENTIAL AND COMMERCIAL WALL |
|
| SHOWER WALL |
|
| SHOWER FLOOR |
|
| STEAM SHOWER |
|
| KITCHEN COUNTER |
|
| STOVE AREA |
|
| FIREPLACE FACADE |
|
| COVERED EXTERIOR WALL FREEZING CLIMATES |
|
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES |
|
| POOL DECK |
|
| POOL WATERLINE |
|
| INSIDE POOL |
|
| SPA / HOT TUB |
|
| UV/ SUN EXPOSURE SENSITIVE |
|
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
