CUADRO™
GLAZED PORCELAIN MOSAIC
Description

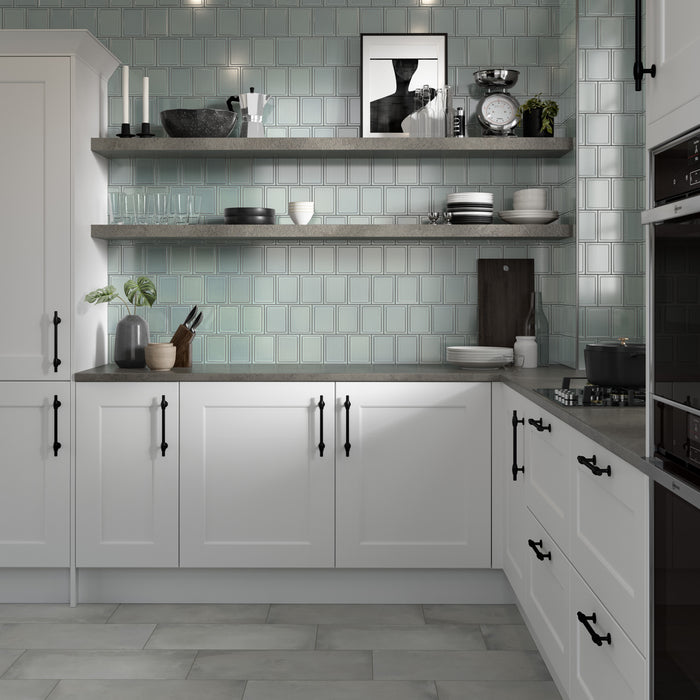

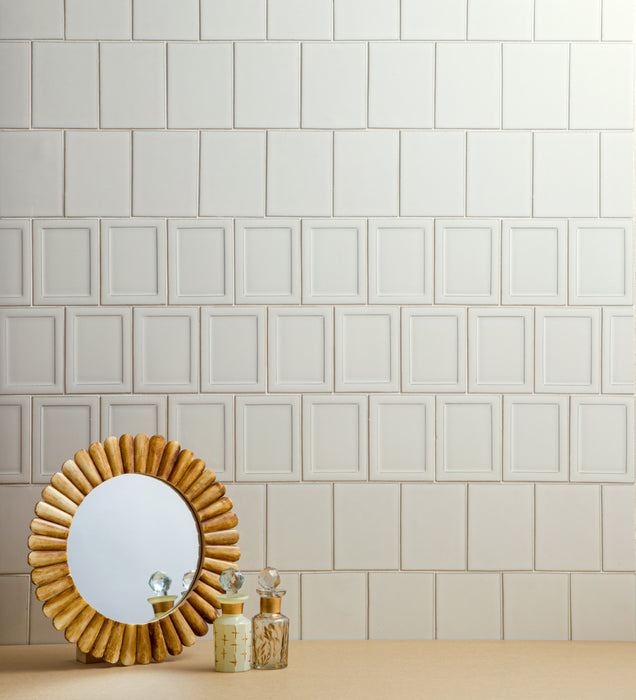

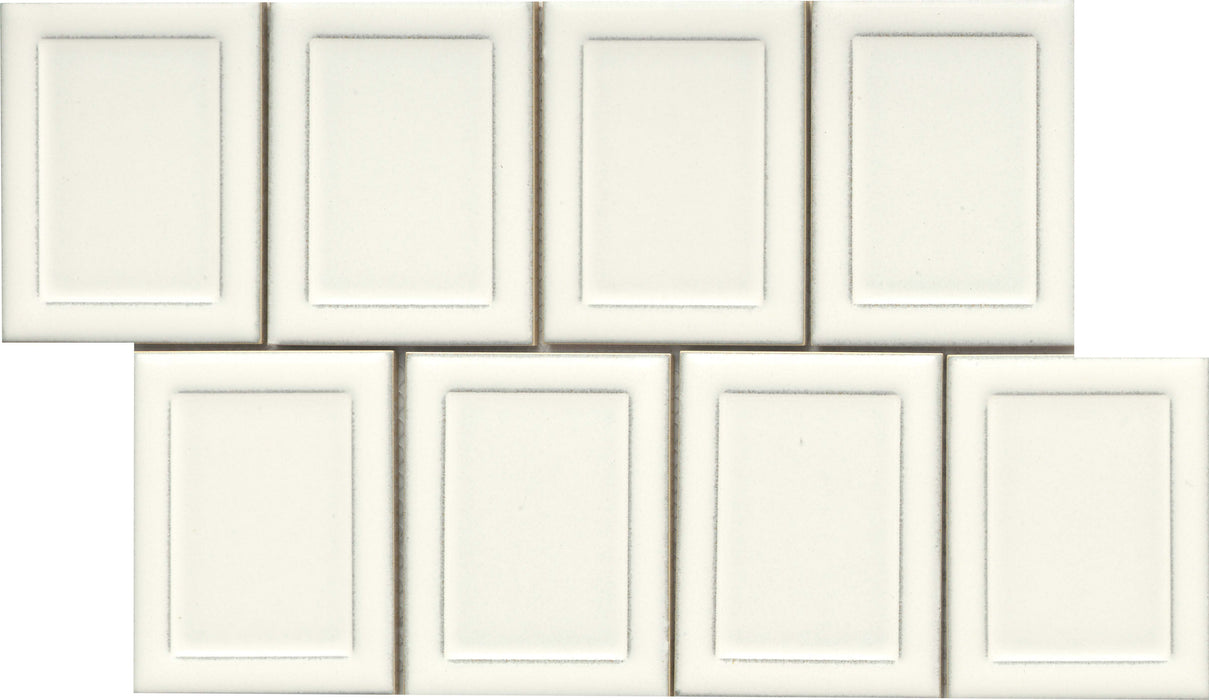

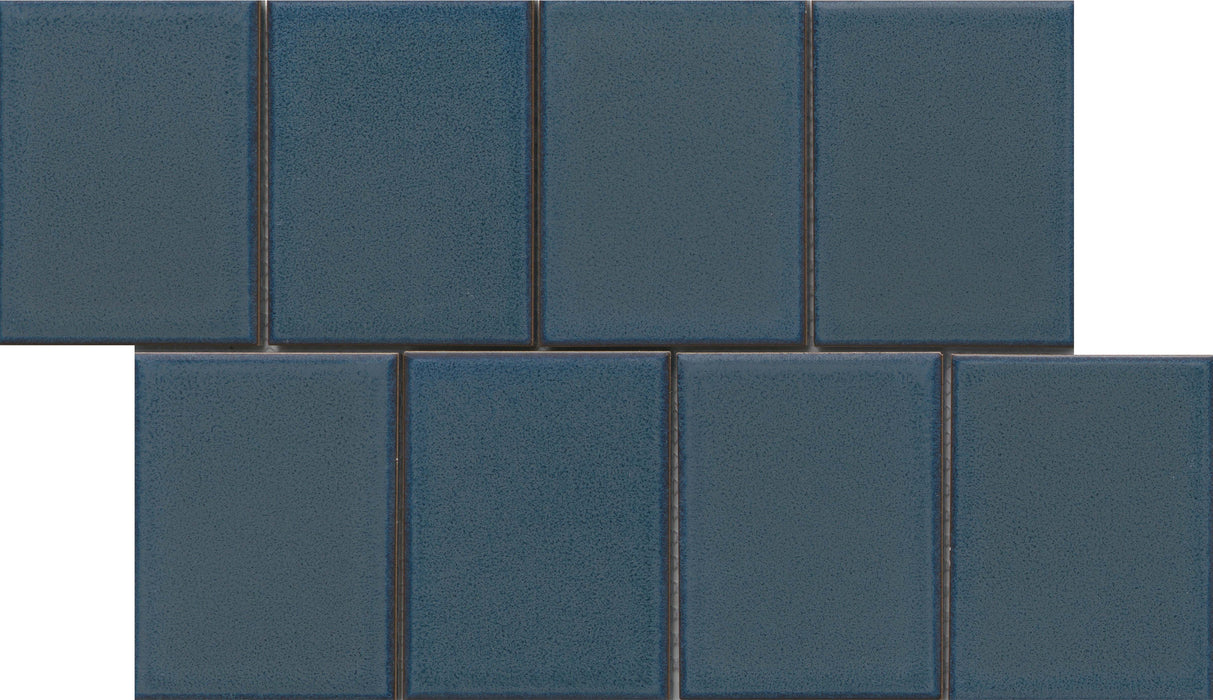

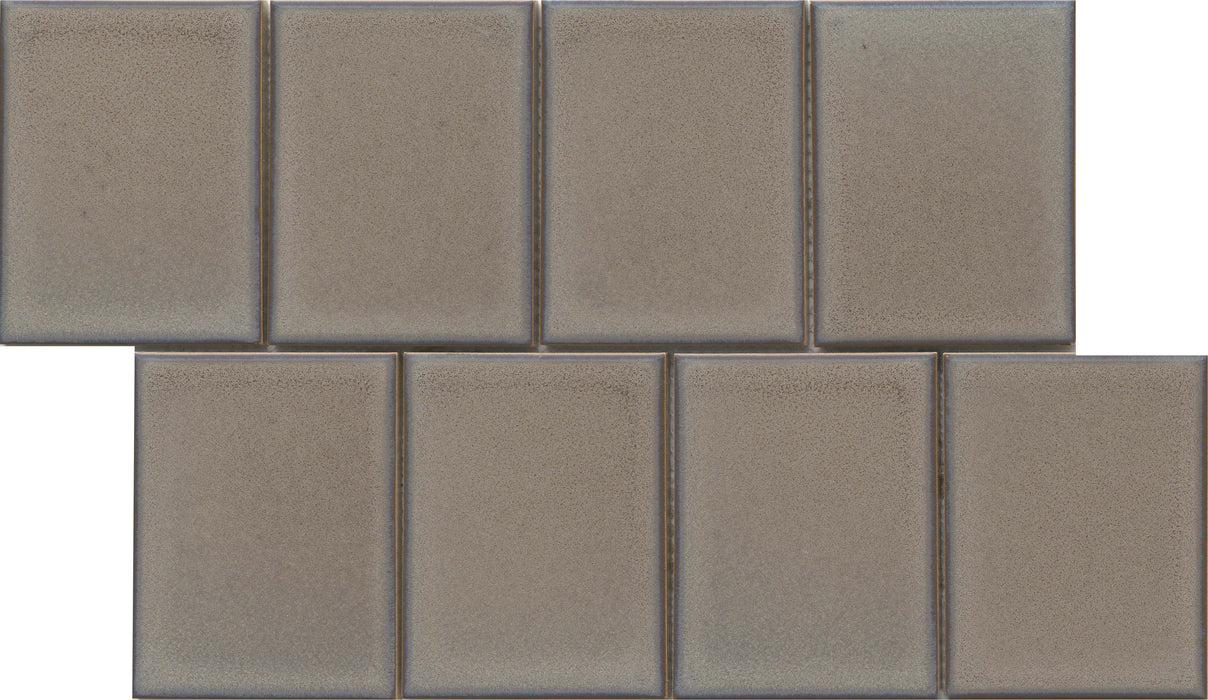

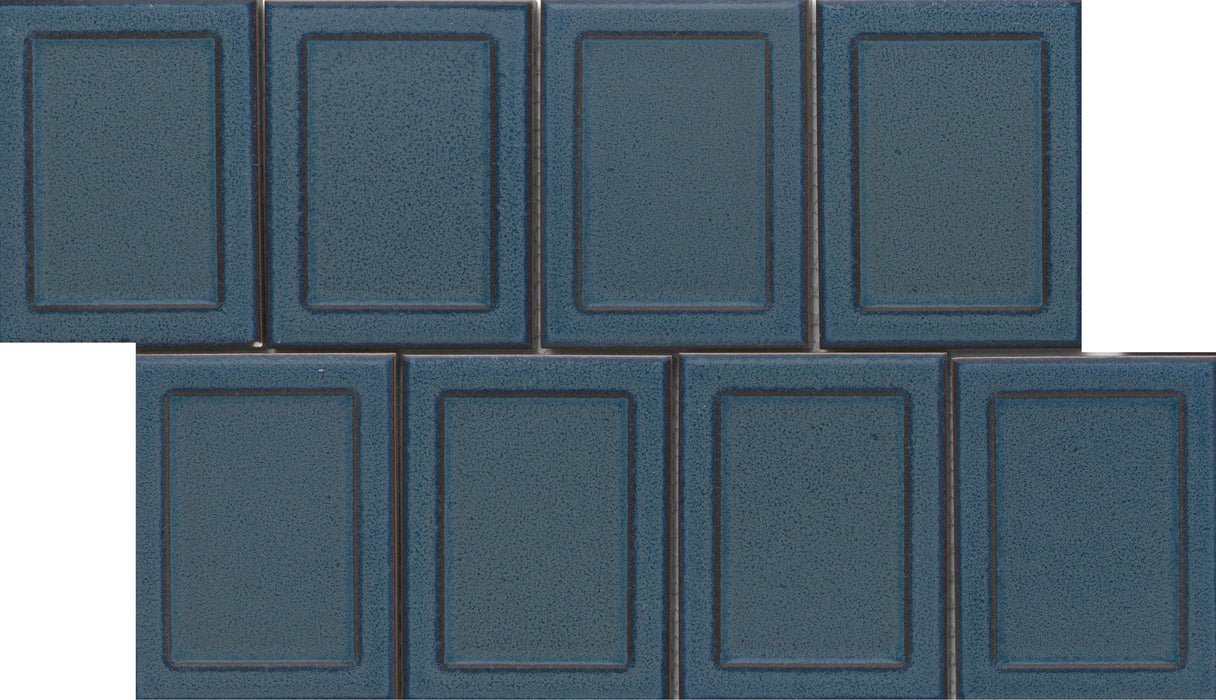

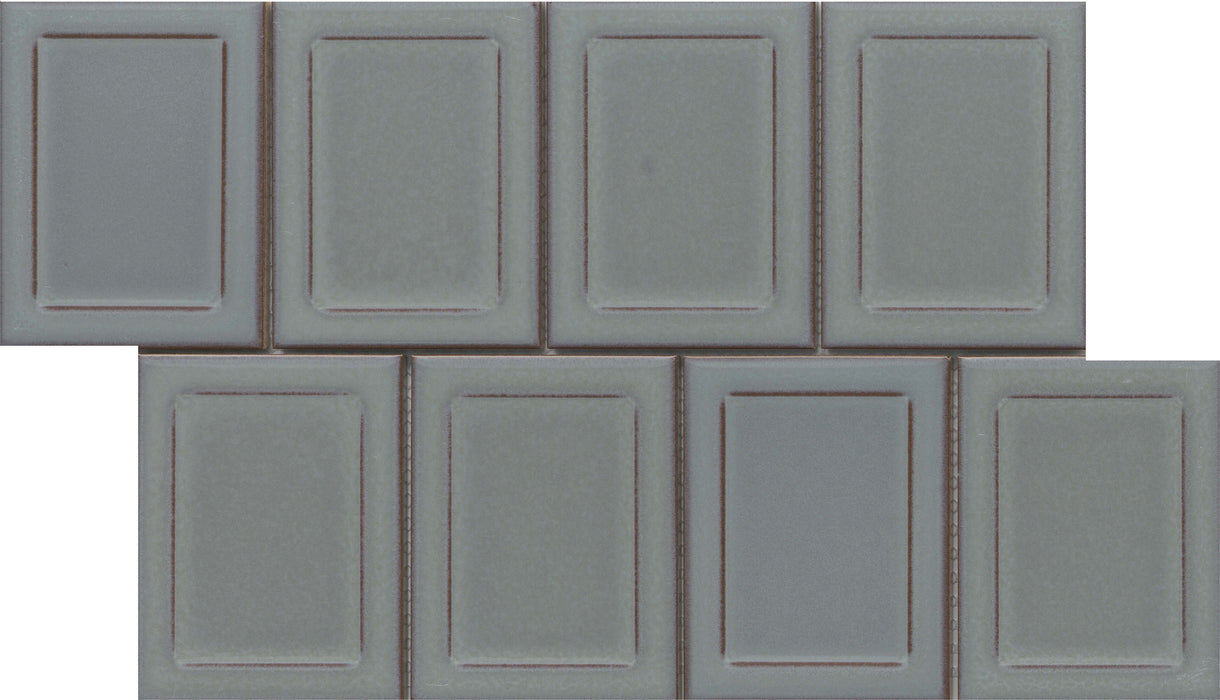

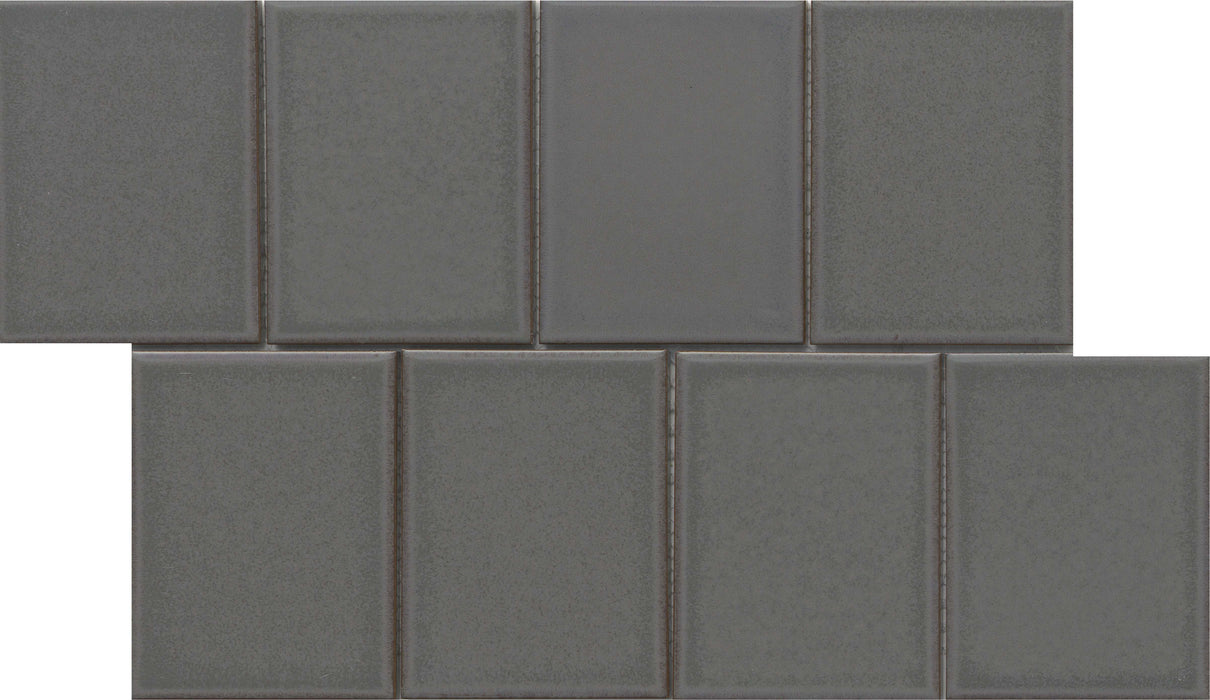

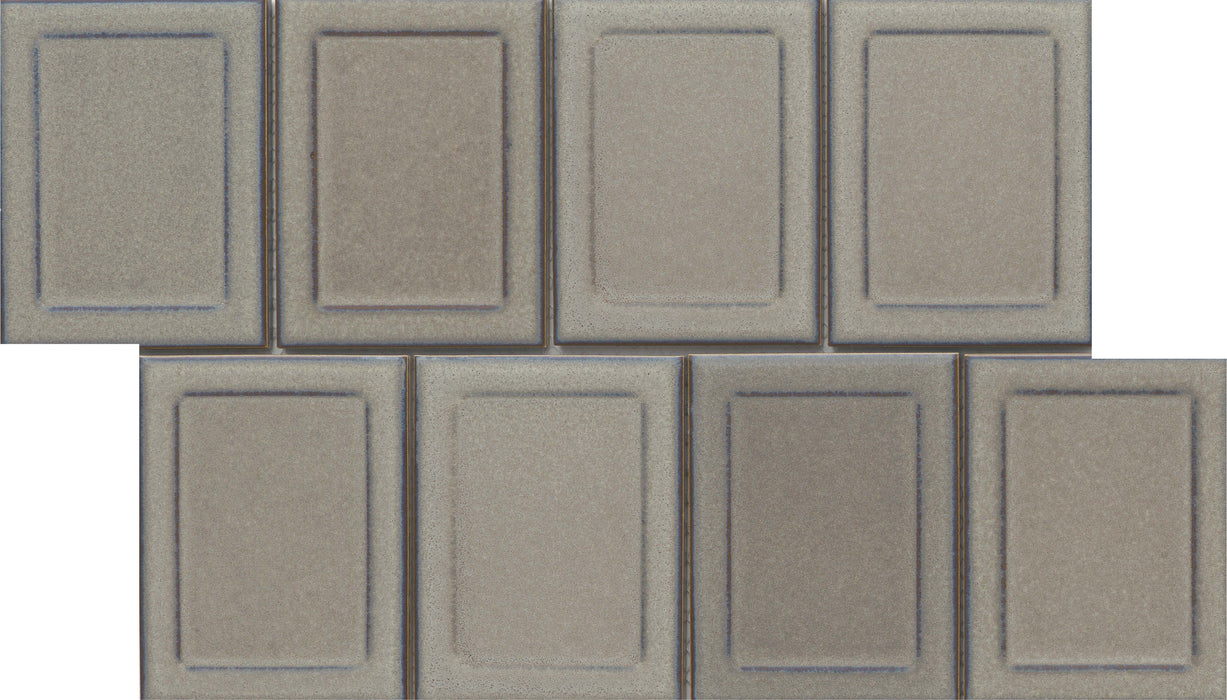

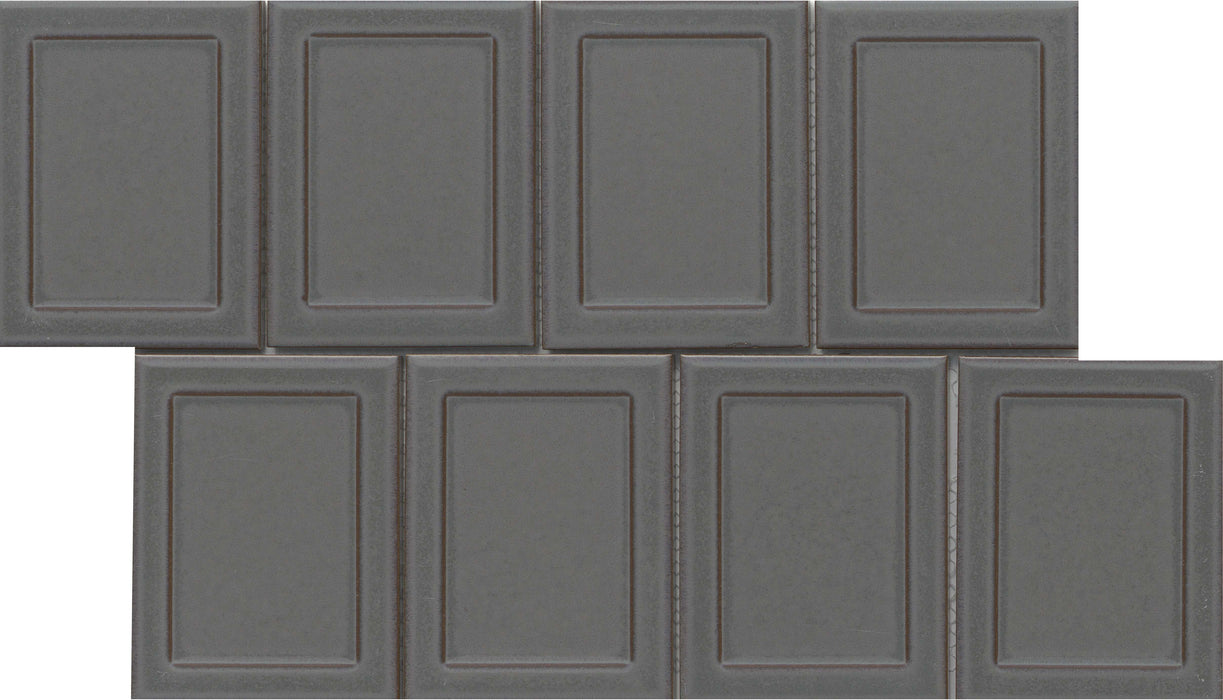

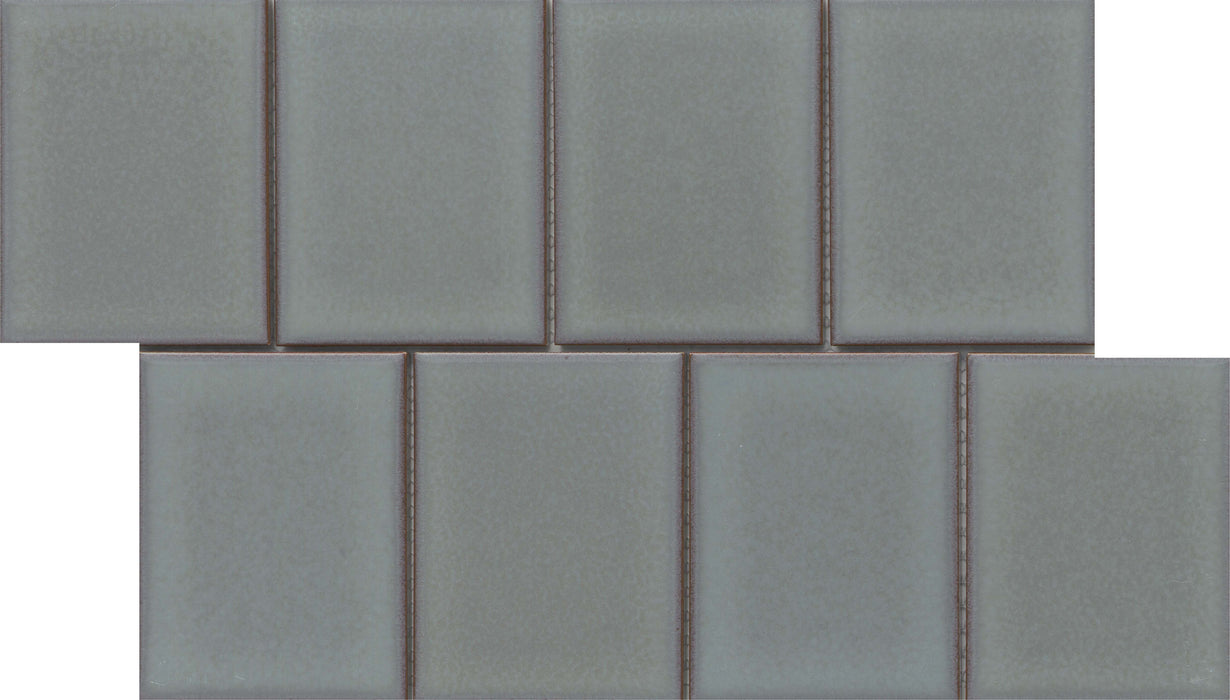

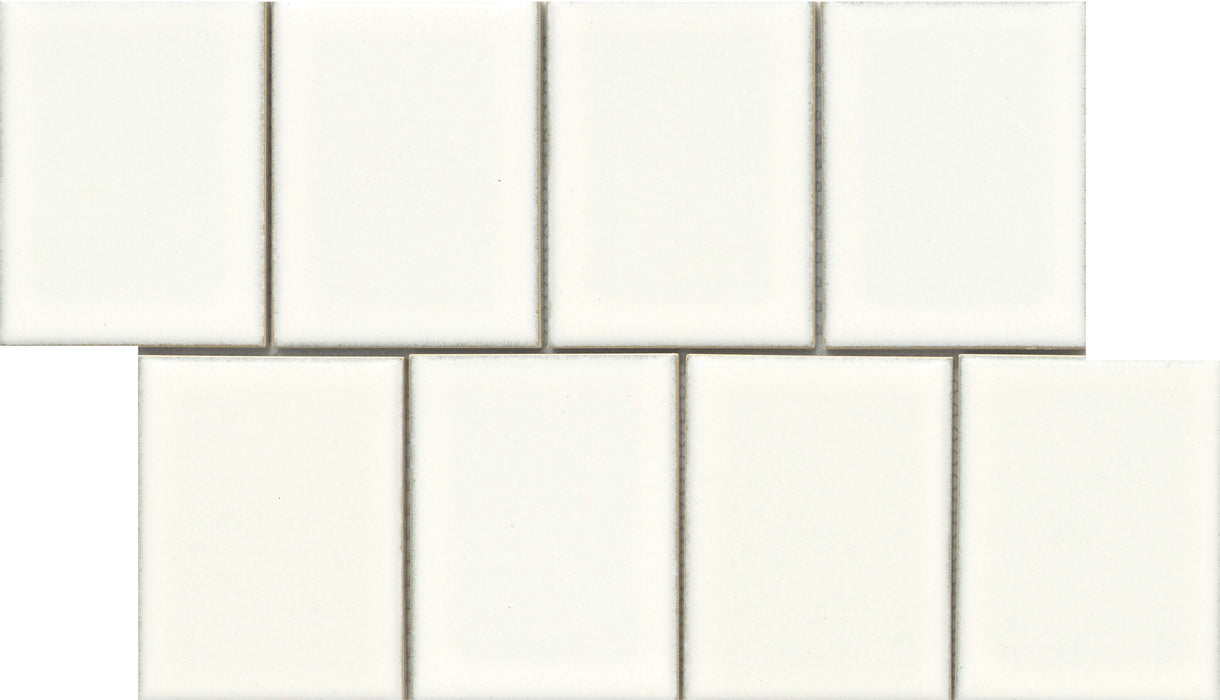

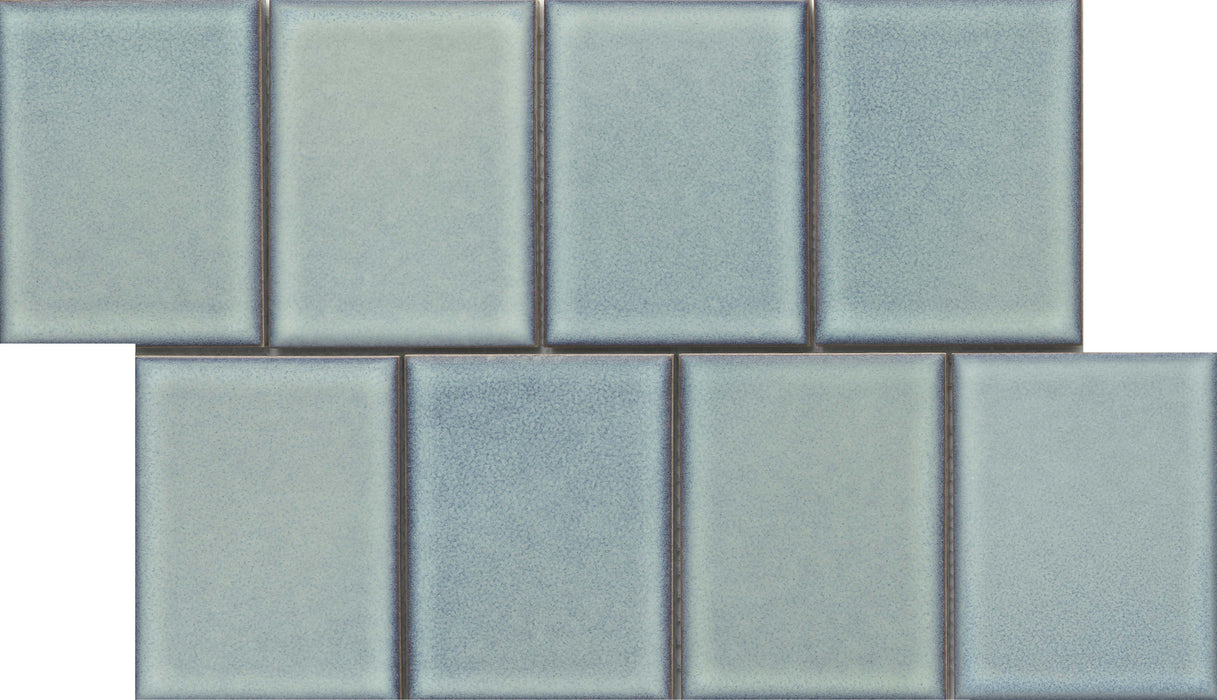

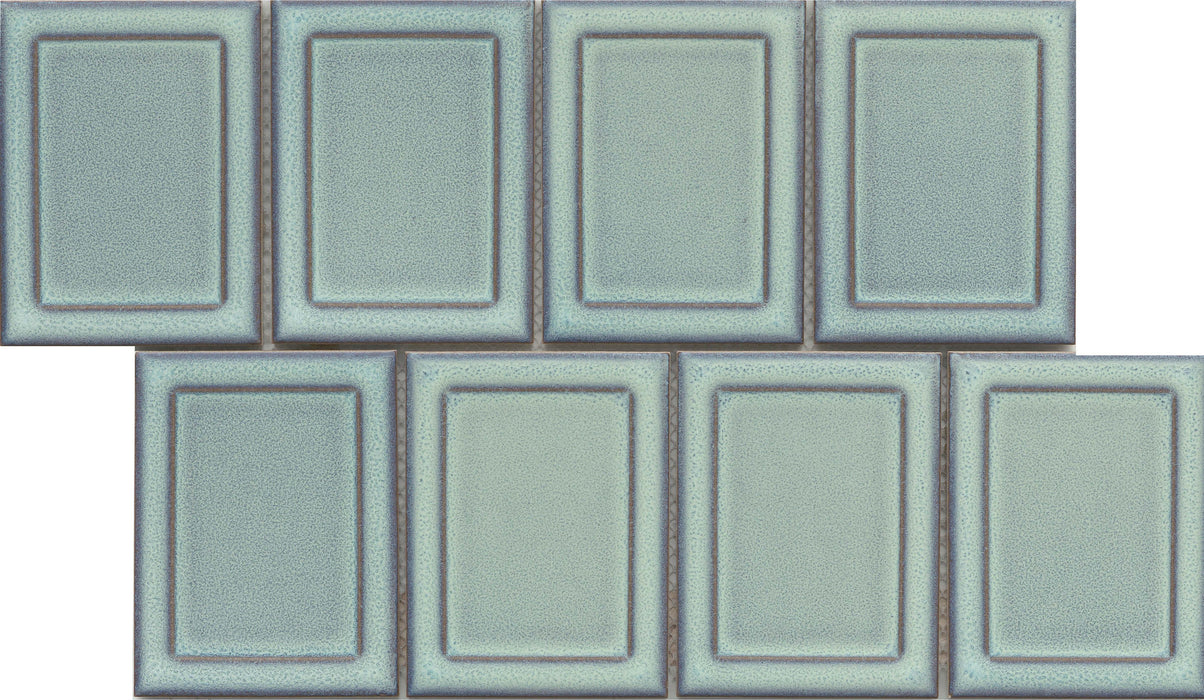

Reminiscent of a classic Shaker door style, Cuadro™ features a beautifully decorative look with all the benefits of tile. Popular blues, in both Royal and Sky, as well as a host of neutrals offer a desirable color palette. And for those more in tune with modern and transitional aesthetics, Cuadro is also available in a clean “frameless” look.
6 Colors | 1 Size | 2 Patterns
Technical Specifications
| Nominal Size (in.) | 9" x 14" |
| Edge Detail | Pressed |
| Finish | Glossy |
| Faces | Random |
| Thickness (mm)* | 8mm |
| Lbs/PC | 3.52 |
| Grout Joint Recommendation (in.) | 1/8" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | II |
| Breaking Strength C648 | >125 |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <0.5% |
| DCOF AcuTest WET | <0.42% |
| Crazing Resistance C424 |
Resistant |
| Scratch Hardness MOHS | 3 |
| Shade Variation | V2 |
| VOC | VOC Free |
Download and View Care and Maintenance
Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR WET* | No |
| COMMERCIAL FLOOR DRY* | No |
| RESIDENTIAL FLOOR | No |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| RESIDENTIAL SHOWER FLOOR |
No |
| COMMERCIAL SHOWER FLOOR |
No |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER |
No |
| STOVE AREA |
Yes |
| FIREPLACE FAÇADE | Yes |
| EXTERIOR WALL | Yes |
| EXTERIOR FLOOR (NOT POOL) | No |
| POOL WATERLINE | Yes |
| UV STABLE | Yes |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
