CODE™
GLAZED PORCELAIN / GLAZED CERAMIC WALL TILE
Description
The integration of light and shadow effects create dimensional vertical surfaces using simple shapes that shifts and transform. Trapezoid-shaped floor tiles allow for unique and interesting compositions. Code's™ minimal and neutral forms offer endless design opportunities for every surface.
4 Colors | 4 Patterns | 3 Shapes
Technical Specifications
| Shape | High & 3D (Wall Only) | Smooth & Line (Wall Only) | Trapezoid (Floor & Wall) |
| Nominal Size (in.) |
Hex High/3D: 6 x 7 Wedge High/3D: 5 x 6 |
Hex Smooth/Line: 6 x 7 Wedge Smooth: 5 x 6 |
4 x 9 |
| Edge Detail | Pressed | Pressed | Pressed |
| Finish | Satin/Gloss | Satin | Satin |
| Faces | 1 | 1 | 1 |
| Thickness (in.)* | 7/8 | 5/16 | 5/16 |
| Lbs/PC |
Hex High/3D: .88 Wedge: .66 |
Hex Smooth: .44 Wedge Smooth: .44 |
.88 |
| Grout Joint Recommendation (in.) | 1/8 | 1/8 | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
| Technical Specifications | |
| ASTM Test | Results |
| Abrasion Resistance C1027 |
Trapezoid: III High/3D & Smooth: 0 |
| Breaking Strength C648 | ≥250 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | ≤0.50% |
| DCOF AcuTest WET | ≥0.65 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 6 |
| Shade Variation | V2 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care and Maintenance
Sizes and Trim

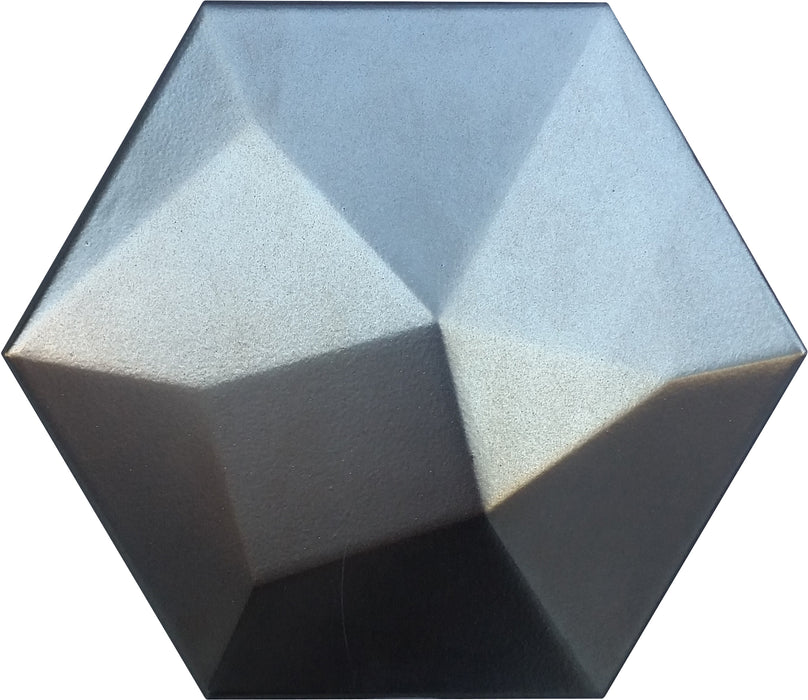

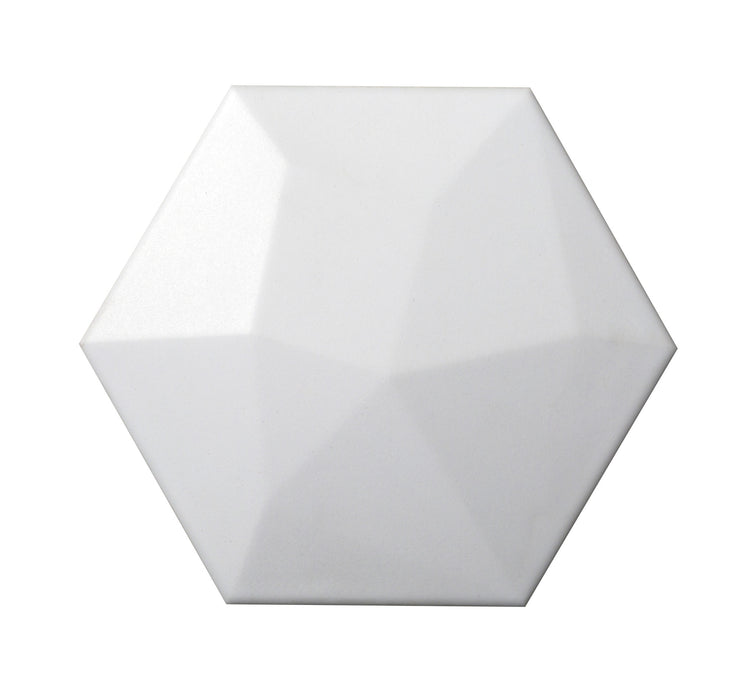

6” x 7” Hexagon
5" x 6" Wedge

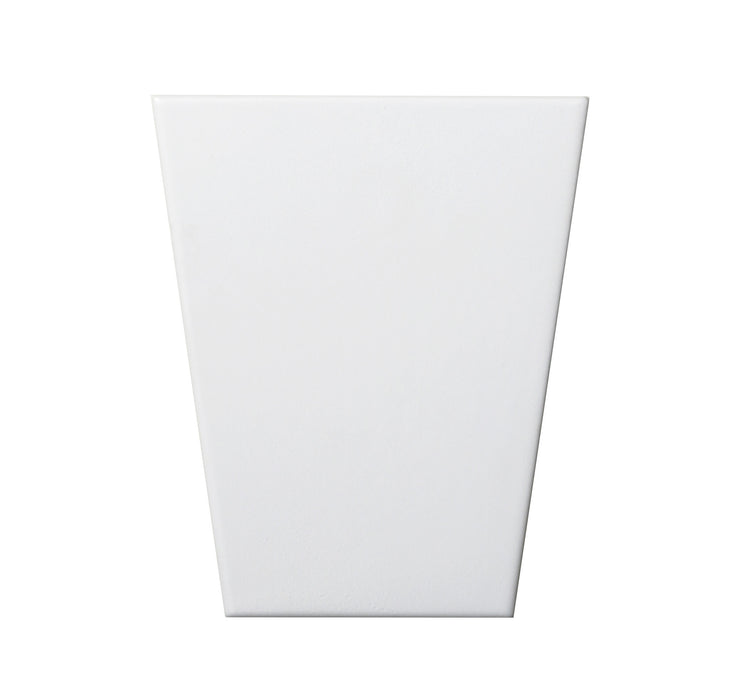

4" x 9" Trapezoid
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Trapezoid Only |
| RESIDENTIAL FLOOR | Trapezoid Only |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| SHOWER FLOOR |
|
| STEAM SHOWER |
|
| KITCHEN COUNTER | Trapezoid Only |
| STOVE AREA |
|
| FIREPLACE FACADE |
|
| COVERED EXTERIOR WALL FREEZING CLIMATES |
|
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Trapezoid Only |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | Trapezoid Only |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Trapezoid Only |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | Trapezoid Only |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Trapezoid Only |
| POOL DECK | Trapezoid Only |
| POOL WATERLINE | Trapezoid Only |
| INSIDE POOL | Trapezoid Only |
| SPA / HOT TUB | Trapezoid Only |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
