CHIADO II™
GLAZED PORCELAIN
Description

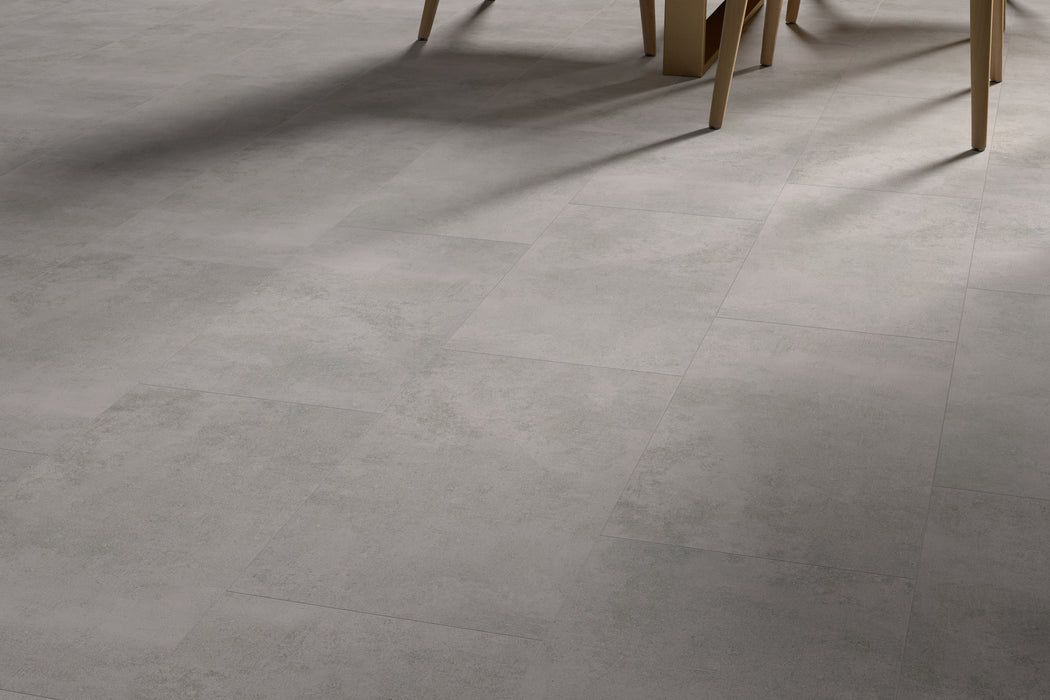

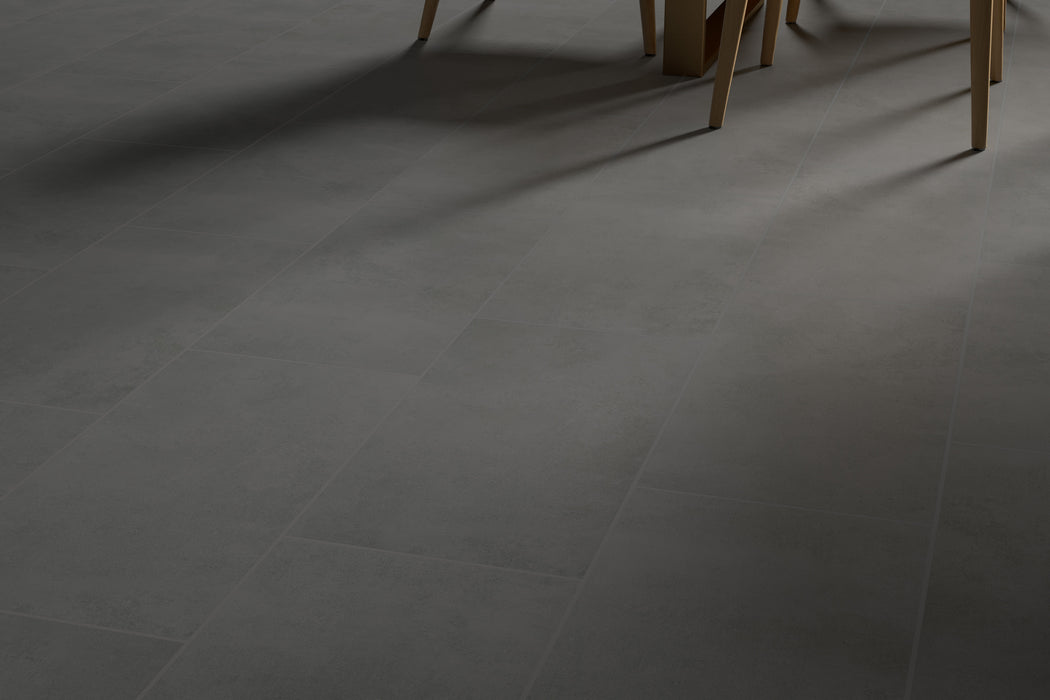

Chiado II™ brings the subtlety of cement to new form in porcelain tile. Neutral tones result in a cool, contemporary surface in multiple sizes to allow various applications and creative layouts.
5 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 12 x 24 |
| Edge Detail | Rectified |
| Finish | Matte |
| Faces | 12 |
| Thickness (in)* | 23/64" |
| Lbs/PC | 8 |
| Grout Joint Recommendation (in.) | 3/16" |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027* | III |
| Breaking Strength C648 | >250 lbf |
| Chemical Resistance C650 |
Resistant |
| Stain Resistance C1378 | Resistant |
| Water Absorption C373 | <0.50 |
|
DCOF ANSI A326.3 |
<0.55 |
| Freeze-Thaw Cycling C1026 | TIP** |
| Scratch Hardness MOHS | 7 |
| Shade Variation | V3 |
| Pre-Consumer Recycled Content | TIP** |
| Post-Consumer Recycled Content | TIP** |
| VOC | None |
Download and View Care and Maintenance
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
**TIP ( Testing is in progress, and results will be available soon.)
Sizes and Trim

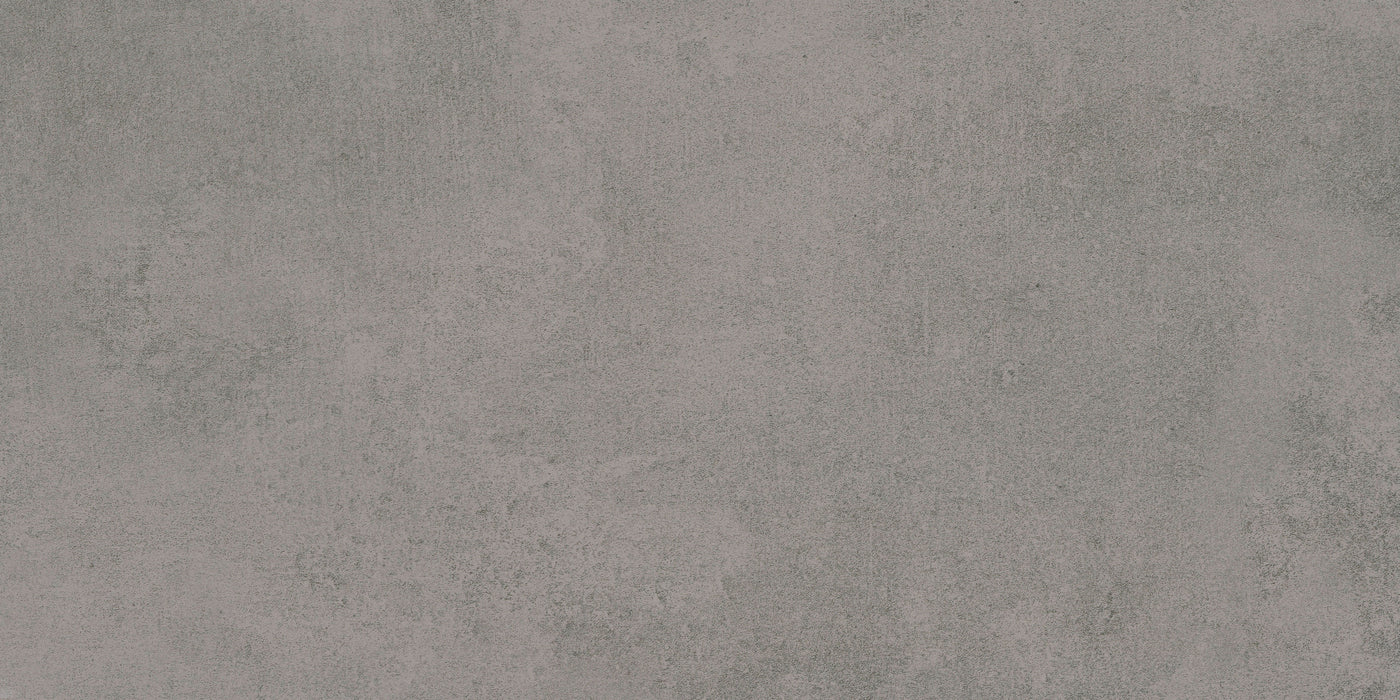

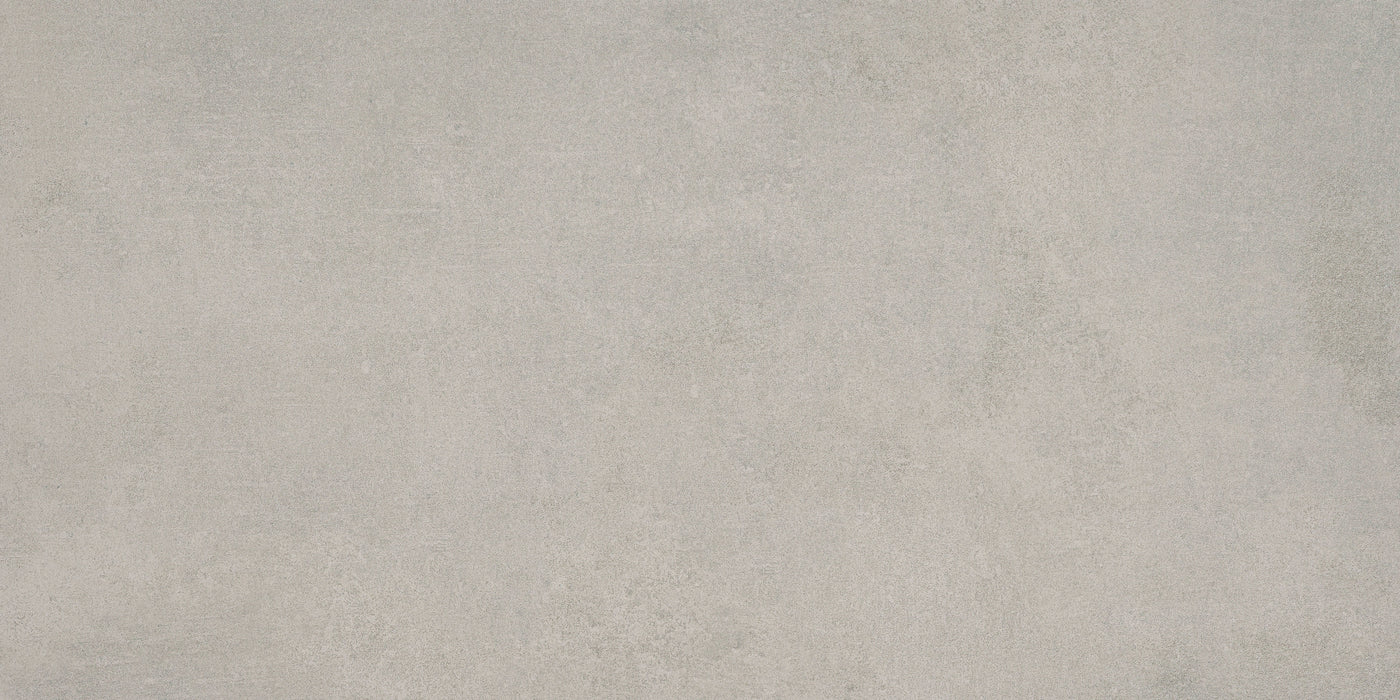

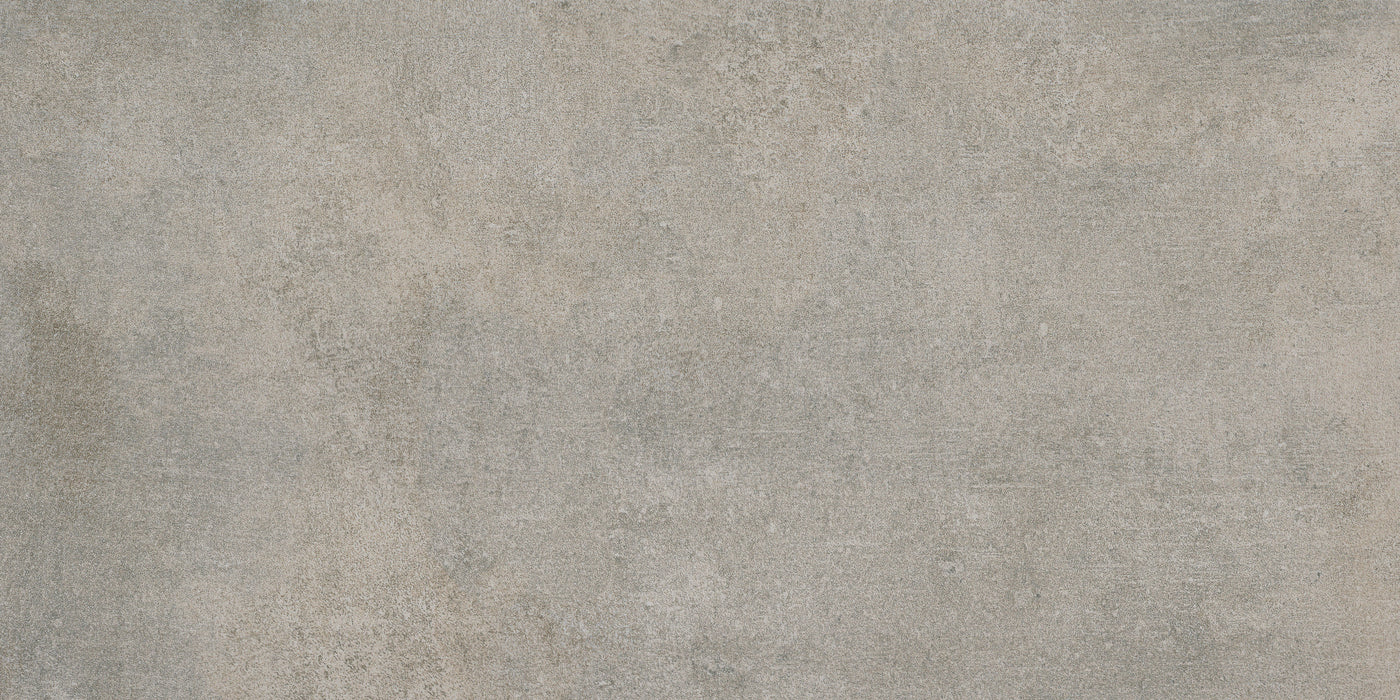

12” x 24”

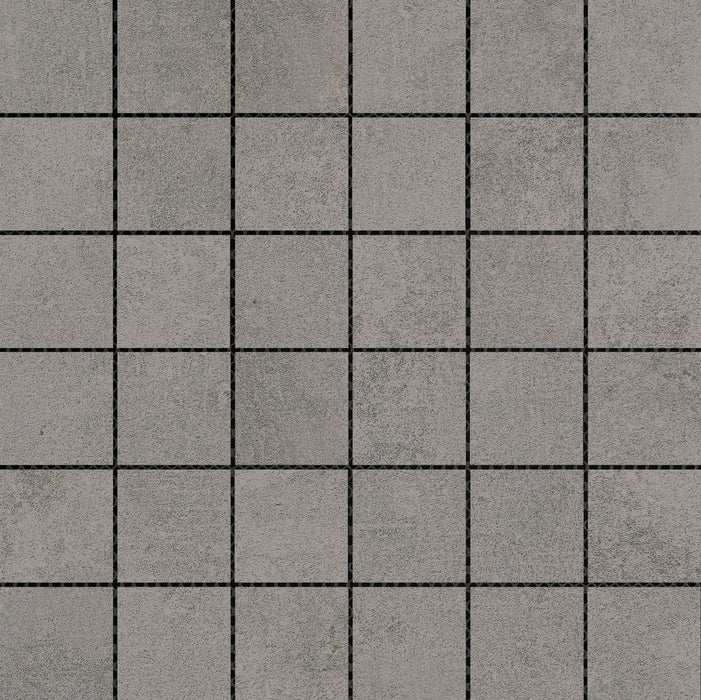

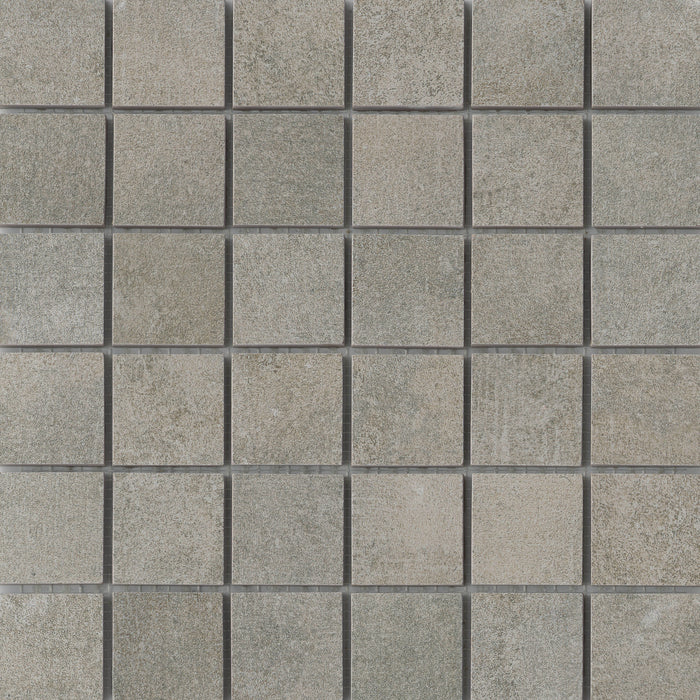

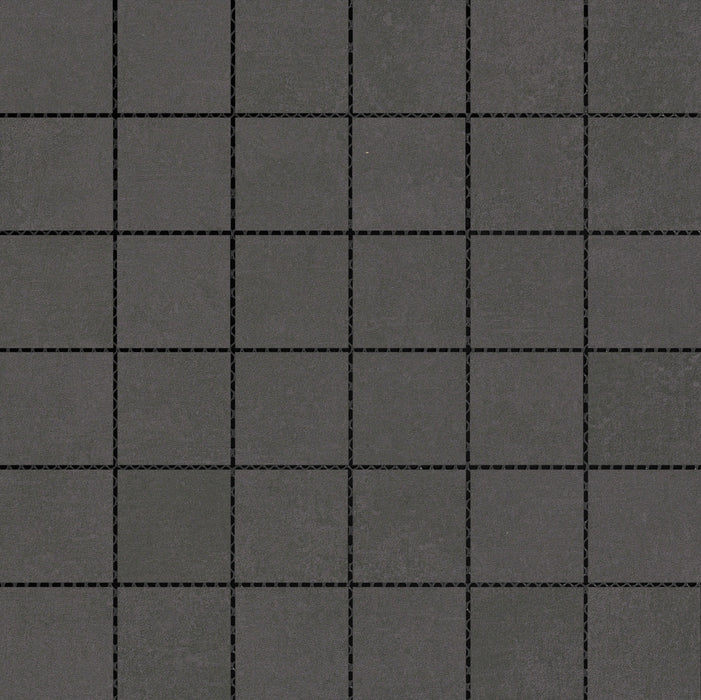

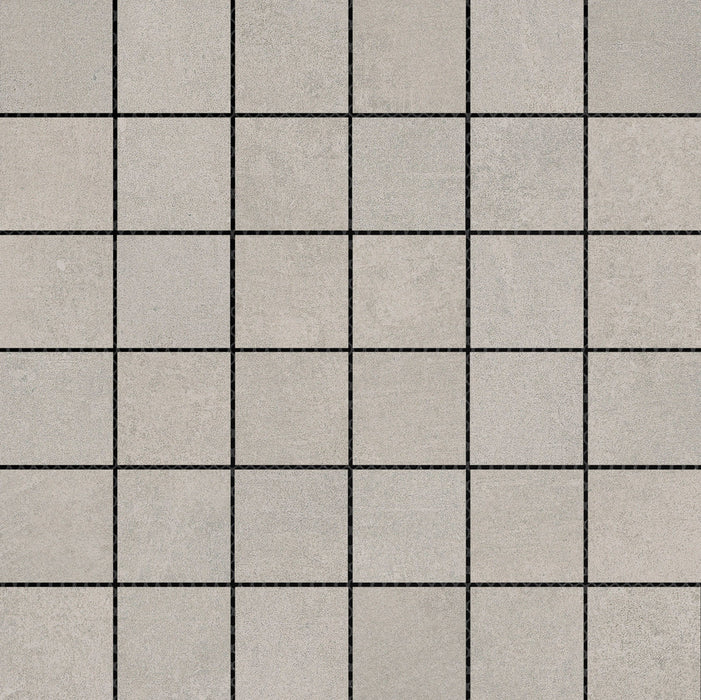

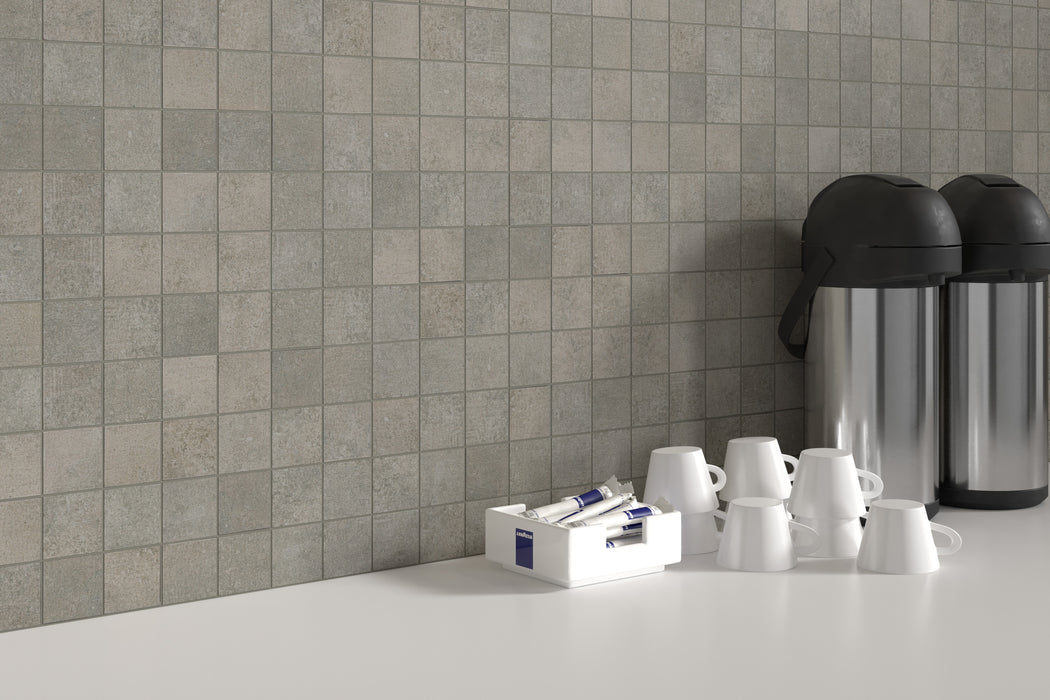

2" x 2" on 12” x 12” Mesh Mosaic
3” x 12” Floor SBN
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR | Yes |
| COMMERCIAL DINING FLOOR | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |

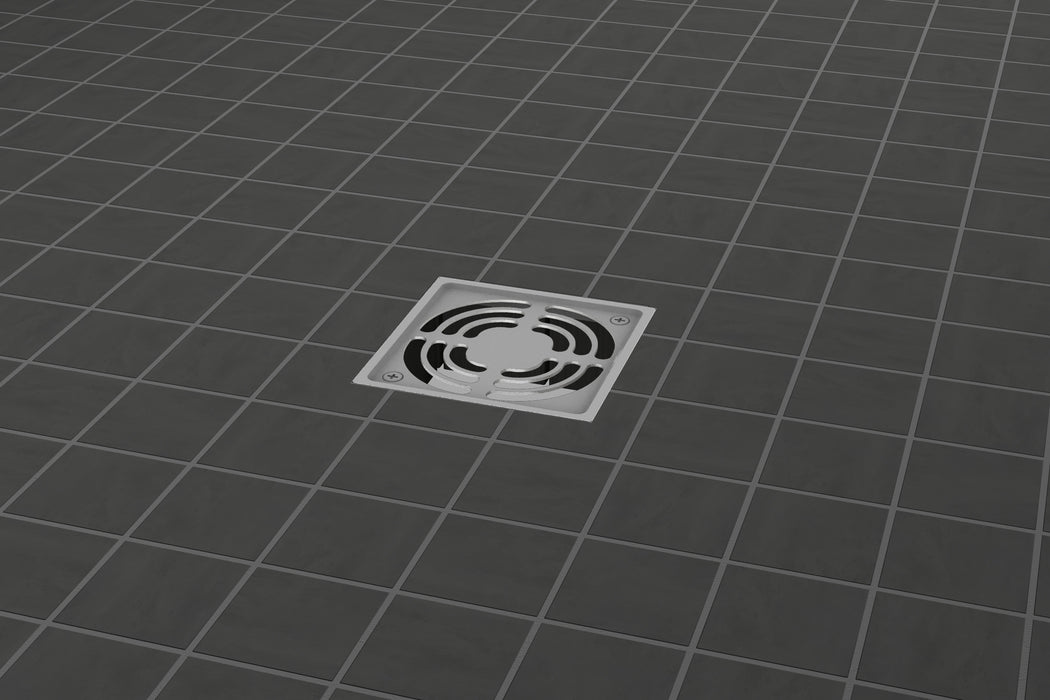

| SHOWER FLOOR | Yes |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| EXTERIOR WALL | Yes |
| COVERED EXTERIOR FLOOR | Yes |
| UNCOVERED EXTERIOR FLOOR | No |
| POOL DECK | Yes |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
**TIP ( Testing is in progress, and results will be available soon.)
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
