CABO™
GLAZED CERAMIC
Description

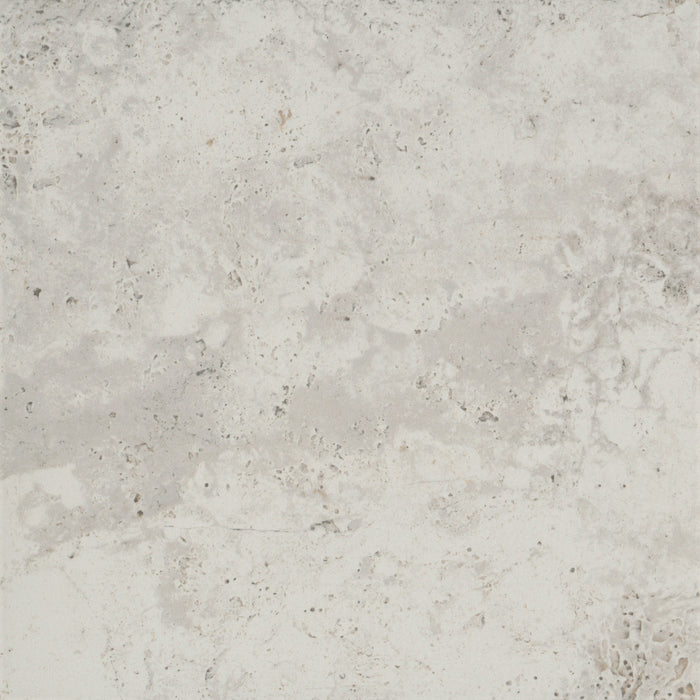

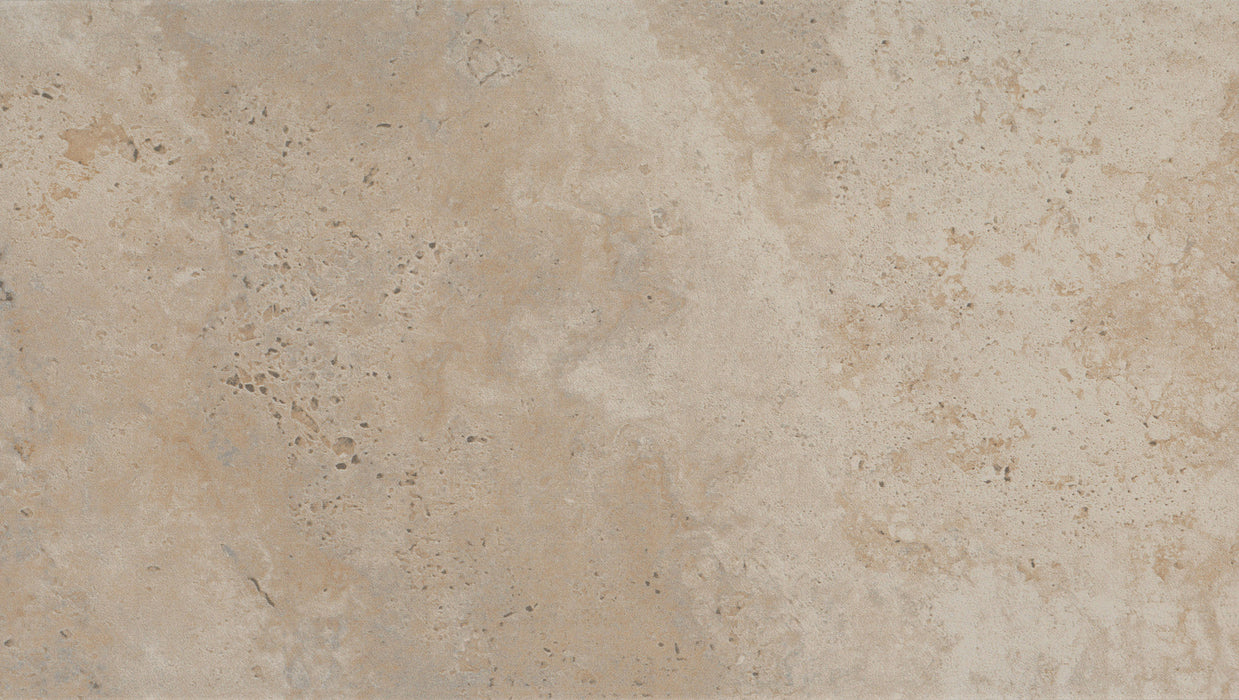

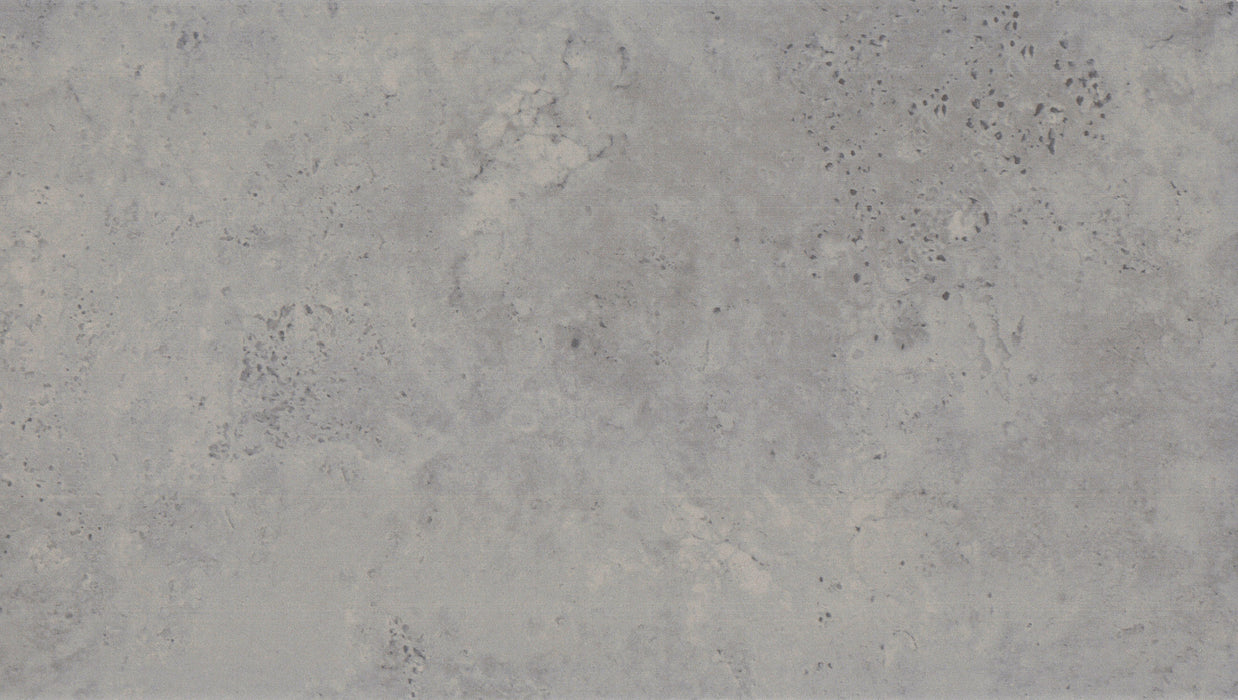

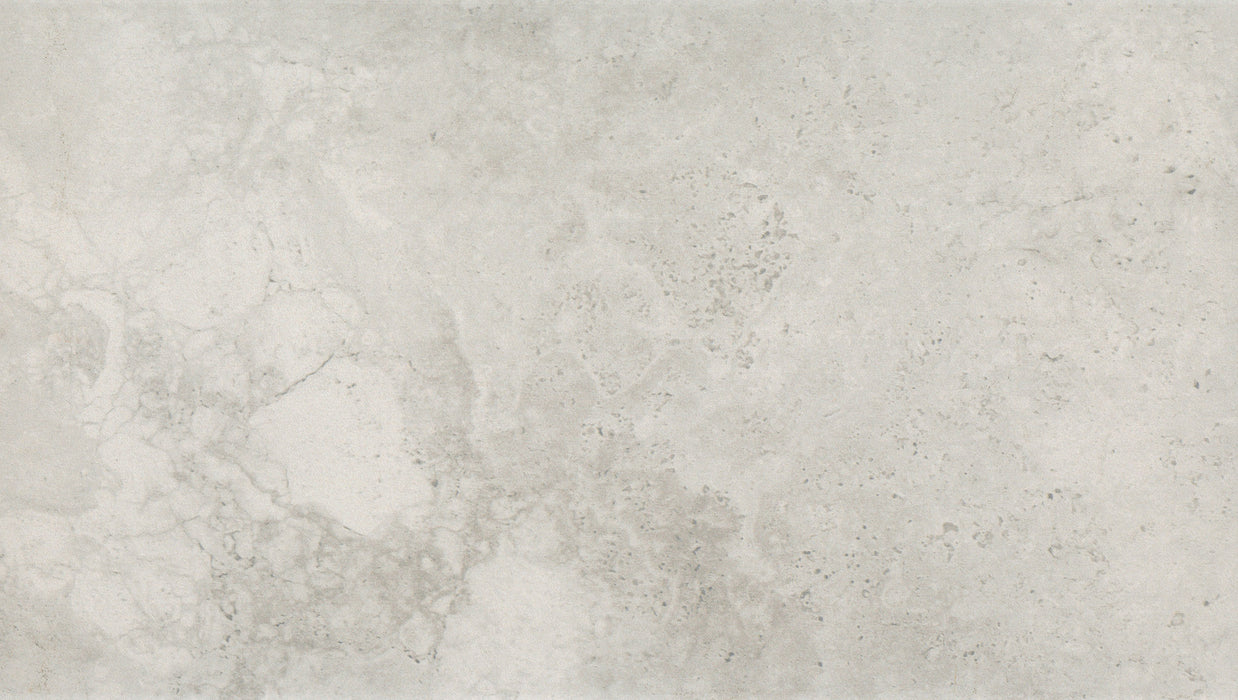

Cabo features crackled, nuanced movement to emulate the subtle details of natural travertine. Imperfect depths of warm and cool neutrals reflect a relaxed, coastal feel. Varied tile sizes and formats invite a range of applications.
3 Colors | 4 Sizes
Technical Specifications

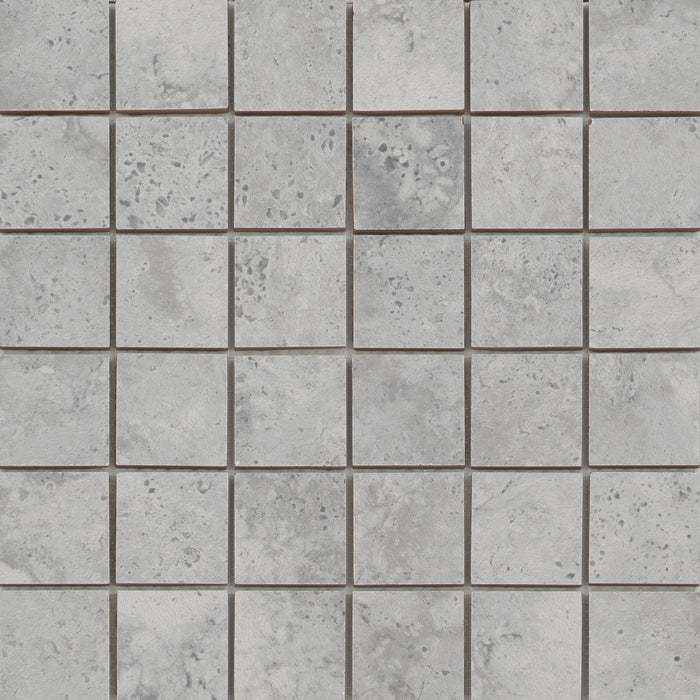

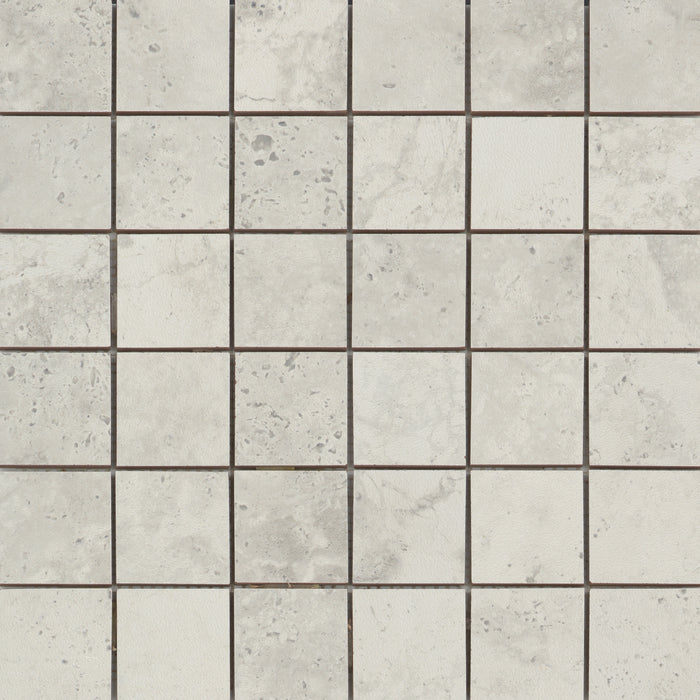

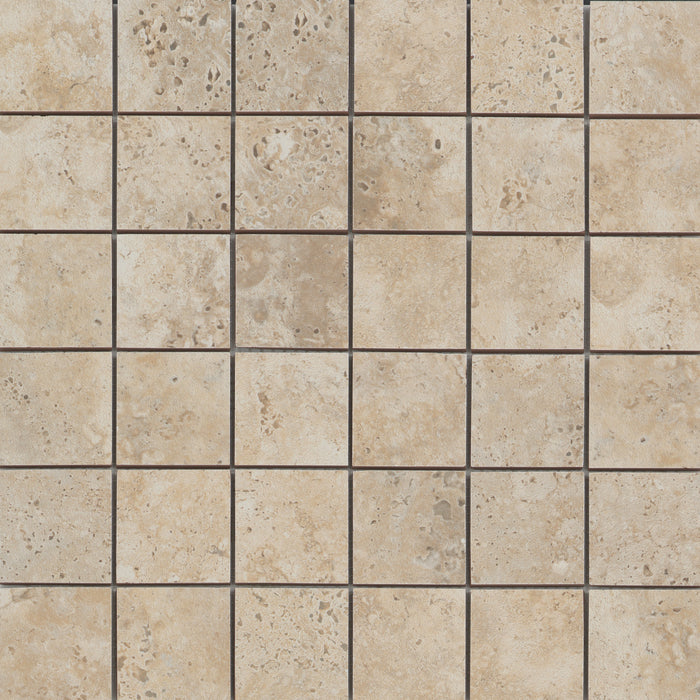

| Nominal Size (in.) | 17 x 17 | 13 x 13 | 12 x 24 | 13" x 13" Mosaic | 8" x 12" |
| Edge Detail | Pressed | Pressed | Pressed | Cut |
Pressed |
| Finish | Matte | Matte | Matte | Matte | Matte |
| Faces | 20 | 20 | 20 | N/A | TIP |
| Thickness (in.)* | 9mm | 8mm | TIP | 7.7mm | 7mm |
| Lbs/PC | 7.83 | 3.55 | 6.86 |
3.08 | 1.7 |
| Grout Joint Recommendation (in.) | 3/16 | 3/16 | 3/16 | 3/16 | TIP |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | III |
| Breaking Strength C648 | >250 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 |
>7% |
|
DCOF AcuTest WET |
<0.42 |
| Freeze-Thaw Cycling C1026 | TIP |
| Scratch Hardness MOHS | 7 |
| Shade Variation | V2 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care and Maintenance

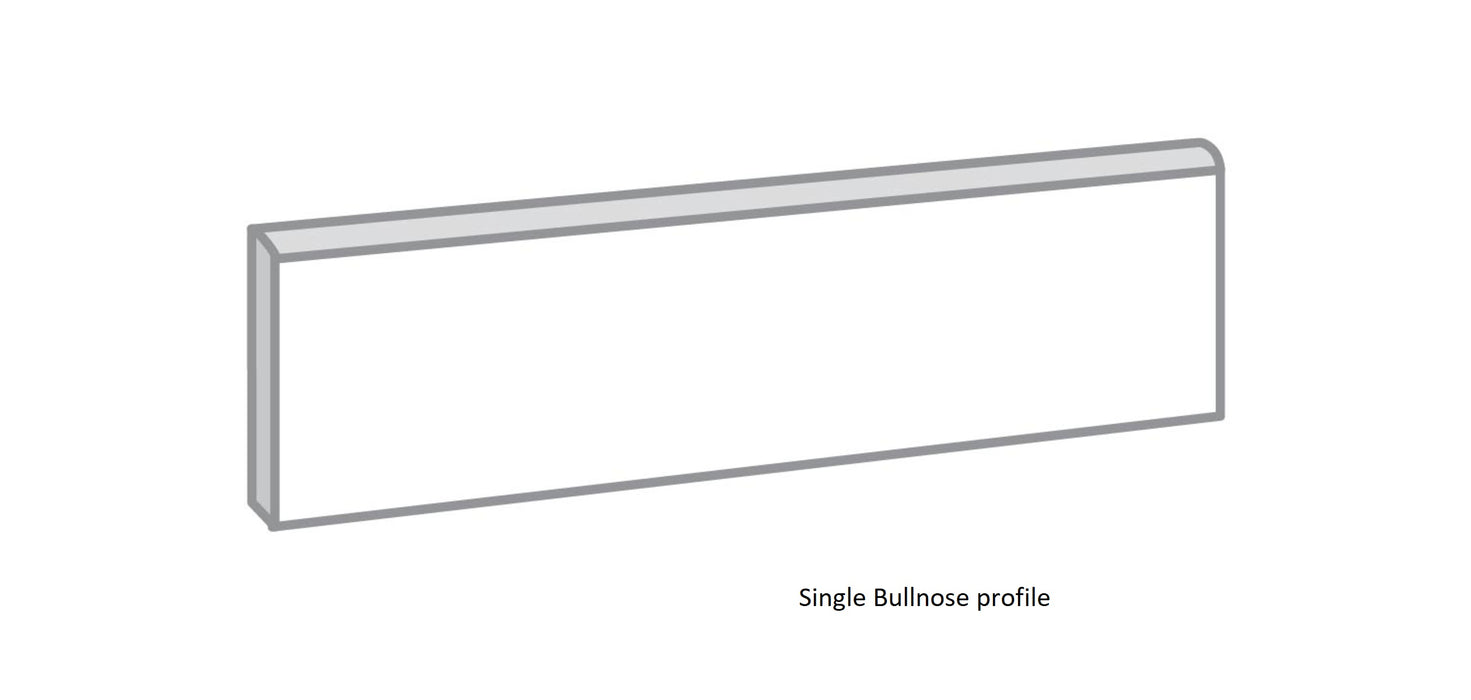

Sizes and Trim
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR |
|
| RESIDENTIAL AND COMMERCIAL WALL |
|
| SHOWER WALL |
|
| SHOWER FLOOR |
|
| STEAM SHOWER | No |
| KITCHEN COUNTER | No |
| STOVE AREA |
|
| FIREPLACE FACADE |
|
| COVERED EXTERIOR WALL FREEZING CLIMATES |
|
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES |
|
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES |
|
| POOL DECK |
|
| POOL WATERLINE |
|
| INSIDE POOL |
|
| SPA / HOT TUB |
|
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
