BARN™
GLAZED PORCELAIN
Description

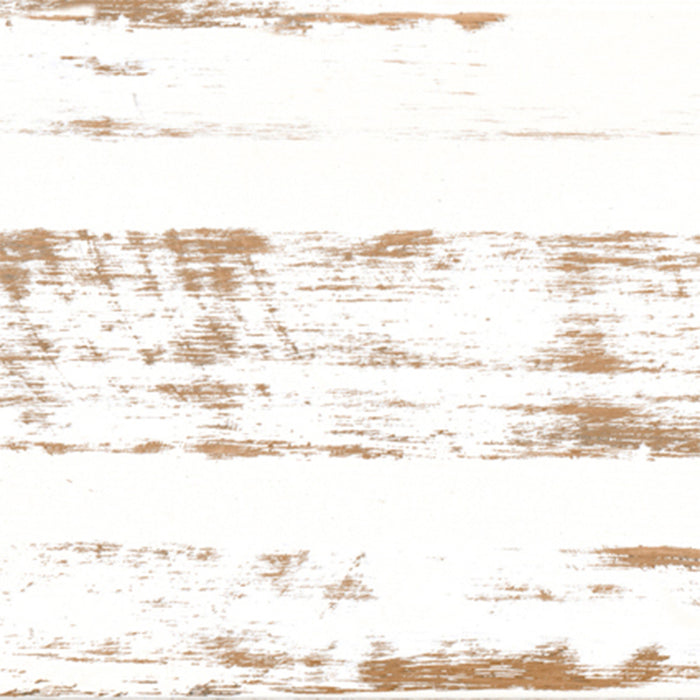

Barn™ embraces the beauty of rustic, painted wood planks that have been worn over time in a rural environment.
3 Colors | 1 Size
Technical Specifications
| Nominal Size (in.) | 6 x 35 |
| Edge Detail | Pressed |
| Finish | Matte |
| Faces | 8 |
| Thickness (in.)* | 3/8 |
| Lbs/PC | 7.23 |
| Grout Joint Recommendation (in.) | 3/16 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027 | IV |
| Breaking Strength C648 |
≥650 lbf |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | <.50% |
|
DCOF AcuTest WET |
≥.55 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 9 |
| Shade Variation | V2 |
| Pre-Consumer Recycled Content | 0% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care and Maintenance
Sizes and Trim
6”x 35” (5.91”x 35.43)
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR | Yes |
| COMMERCIAL DINING FLOOR | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| SHOWER FLOOR | Yes |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
| POOL DECK | No |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
