ACTION™
GLAZED BODY MATCH PORCELAIN
Description

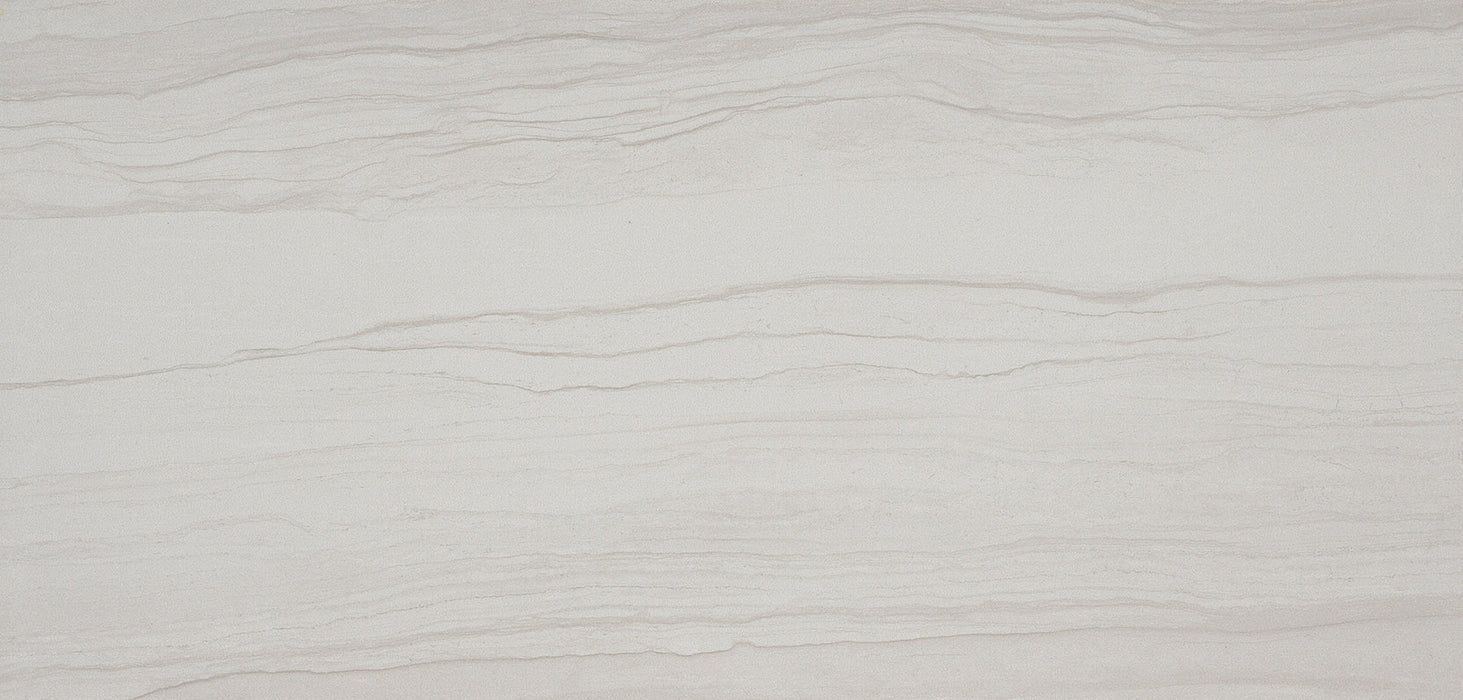

Action™ uses HD technology to recreate veincut marble in a modern color palette with a beautiful polished finish.
All colors available in a matte finish as Motion™ series.
1 Color | 1 Size
Technical Specifications
| Nominal Size (in.) | 11 x 23 |
| Edge Detail | Rectified |
| Finish | Polished |
| Faces | 24 |
| Thickness (in.)* | 3/8 |
| Lbs/PC | 8.3 |
| Grout Joint Recommendation (in.) | 1/8 |
* Tile thickness could vary based on size. Larger format tiles will have a higher thickness.
Testing
| Method | Results |
| Abrasion Resistance C1027* | V |
| Breaking Strength C648 | > 500 lbf. |
| Chemical Resistance C650 | Resistant |
| Water Absorption C373 | < .5% |
|
DCOF AcuTest WET |
< .42 |
| Freeze-Thaw Cycling C1026 | Resistant |
| Scratch Hardness MOHS | 7 |
| Shade Variation |
V4 Substantial |
| Pre-Consumer Recycled Content | 20% |
| Post-Consumer Recycled Content | 0% |
| VOC | None |
Download and View Care And Maintenance
* The beauty of high gloss or polished products may be susceptible to scratching that is more visible on the surface of the tile.
Sizes and Trim
11" x 23" (11.42"x 23.23")

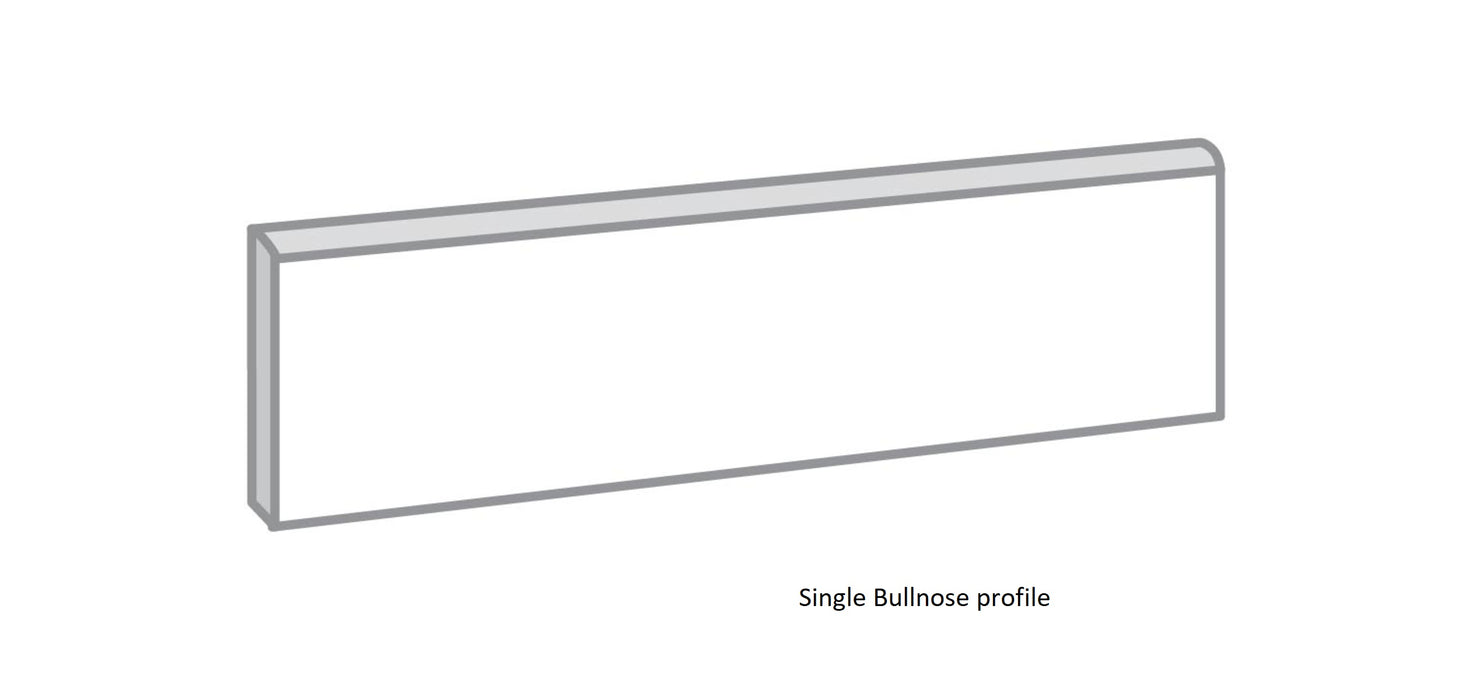

3" x 23" Floor SBN
Usage
| USAGE TYPES: | YES/NO |
| COMMERCIAL FLOOR* | Yes |
| RESIDENTIAL FLOOR | Yes |
| RESIDENTIAL AND COMMERCIAL WALL | Yes |
| SHOWER WALL | Yes |
| SHOWER FLOOR | No |
| STEAM SHOWER | Yes |
| KITCHEN COUNTER | Yes |
| STOVE AREA | Yes |
| FIREPLACE FACADE | Yes |
| COVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| COVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL FREEZING CLIMATES | Yes |
| UNCOVERED EXTERIOR WALL NON-FREEZING CLIMATES | Yes |
| COVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
| COVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
| UNCOVERED EXTERIOR FLOOR FREEZING CLIMATES | No |
| UNCOVERED EXTERIOR FLOOR NON-FREEZING CLIMATES | No |
| POOL DECK | No |
| POOL WATERLINE | Yes |
| INSIDE POOL | Yes |
| SPA / HOT TUB | Yes |
| UV/ SUN EXPOSURE SENSITIVE | No |
* Emser recommends a .50 or greater DCOF for Commercial Dining Floors.
The usage chart is provided as a general guide only. Actual job site conditions may change a product’s suitability for a specific application. If special conditions apply, please contact an Emser representative for clarification of use prior to purchasing.
